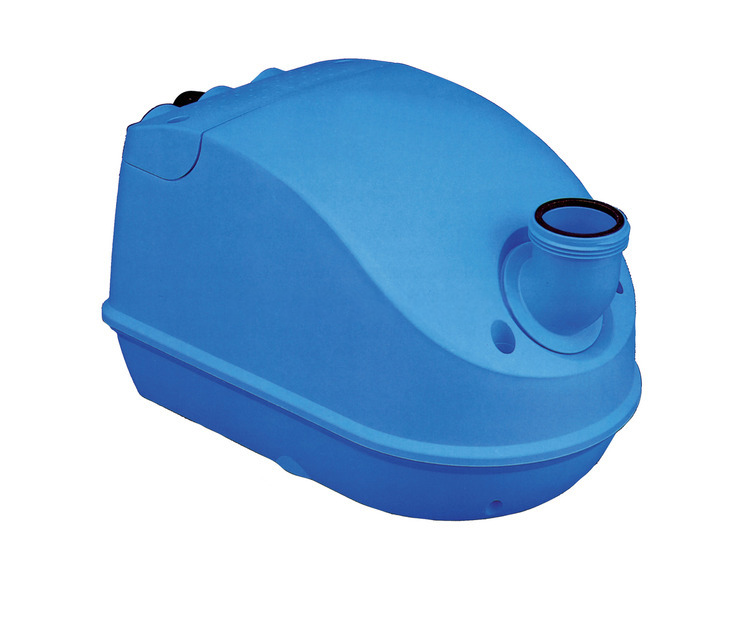

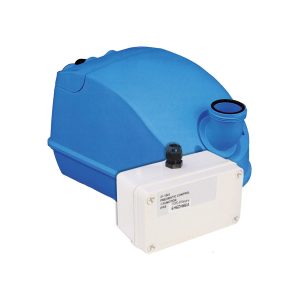

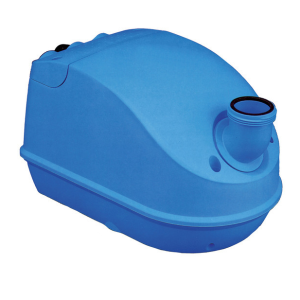

🫧 Balboa Genesis Air Blower – G70-2HN-S (700W Motor + 250W Heater, Electronic On/Off Control)

Experience luxurious warm bubble massage with this powerful heated blower designed for ultimate spa comfort

📝 Product Overview

The HydroAir Genesis G70-2HN-S is a premium heated air blower combining a robust 700W motor with a 250W integrated heating element for a total power output of 950W. Manufactured by HydroAir, a division of Balboa Water Group, this blower eliminates the discomfort of cold air injection by warming the airflow before it reaches your bath water.

Featuring electronic on/off control with an integrated PCB, the G70-2HN-S connects seamlessly to spa control panels or Genesis touchpads, providing convenient operation and variable speed support. The built-in heater activates during start-up to ensure comfortable warm bubbles from the first moment, automatically regulating temperature to comply with European safety standards.

Built to EN60335-1 and EN60335-2-60 specifications, this blower offers the reliability and quality construction HydroAir is renowned for. The compact design with rotatable outlet accommodates various installation configurations, making it ideal for whirlpool baths and medium-sized hot tubs where heated airflow and electronic control integration are required.

✨ Key Features

✅ Integrated 250W Heating Element – Warms the airflow during start-up to eliminate cold air shock and enhance bathing comfort

✅ Powerful 700W Motor – Delivers strong, consistent airflow for invigorating bubble massage in whirlpool baths and medium hot tubs

✅ 950W Total Power Output – Combined motor and heater provide optimal performance for heated air massage systems

✅ Electronic On/Off Control – Integrated PCB enables seamless connection to spa control panels or Genesis touchpads

✅ Variable Speed Support – Compatible with variable speed control for customisable bubble intensity

✅ Automatic Heater Safety Cut-Out – Heating element automatically switches off when air temperature exceeds approximately 50°C, complying with EN60335-2-60 safety requirements

✅ Rotatable Discharge Port – Flexible outlet orientation simplifies installation and accommodates various plumbing configurations

✅ 1½” BSP Union Included – Universal threaded connection with 32mm tail-piece for straightforward plumbing integration

✅ Thermal Motor Protection – Built-in thermal cut-out prevents motor damage from overheating

✅ European Safety Certification – Manufactured to EN60335-1 and EN60335-2-60 standards for assured electrical safety

⚙️ Technical Specifications

Specification	Details
Model Number (MPN)	G70-2HN-S
Motor Power	700W
Heater Power	250W
Total Power Output	950W
Voltage / Frequency	230–240V / 50Hz
Current Draw	4.1A
Control Method	Electronic on/off with integrated PCB
Heating	Yes – built-in 250W element (HN = Heated Non-variable)
Variable Speed Support	Yes – compatible with external speed controllers
Outlet Connection	Rotatable 1½” BSP threaded union with 32mm tail-piece
Dimensions (L × W × H)	275 × 175 × 180mm
Cable Length	1 metre (bare-end termination)
Heater Cut-Out Temperature	Approximately 50°C (automatic)
Usage Rating	Whirlpool baths, medium hot tubs
Safety Standards	EN60335-1, EN60335-2-60
Wiring Class	Class I (with earth) or Class II available

🏠 Real World Applications

🛁 Heated Whirlpool Bath Systems

The G70-2HN-S excels in whirlpool bath installations where cold air injection would compromise bathing comfort. The 250W heater warms incoming air during start-up, ensuring a pleasant bubble experience from the first moment. Ideal for bathroom installations where ambient temperatures may be cool.

♨️ Medium-Sized Hot Tub Installation

With 700W motor power delivering robust airflow, this blower suits medium-sized hot tubs requiring heated air massage. The electronic control integration allows seamless operation through existing spa panels, while the heater maintains comfortable air temperatures even in cooler installation environments.

🔄 Heated Blower Replacement

A direct replacement for worn or failed heated blowers in existing spa systems. The standard 1½” BSP union and 32mm connection ensure compatibility with most plumbing configurations. Electronic PCB control allows integration with modern spa control systems.

💆 Enhanced Hydrotherapy Systems

The combination of powerful airflow and heated air delivery creates superior hydrotherapy conditions. Variable speed compatibility allows users to adjust bubble intensity while maintaining warm, comfortable air injection for muscle relaxation and therapeutic benefit.

🏢 Professional Wellness Installations

Suitable for professional whirlpool bath installations in hotels, wellness centres, and day spas where client comfort is paramount. The heated airflow eliminates the cold-air complaints common with non-heated blowers, improving the overall guest experience.

🔧 Installation Considerations

⚠️ Professional Installation Required – All electrical work must be carried out by a qualified electrician according to national wiring regulations.

Electrical Requirements:

• Supply: 230–240V / 50Hz
• Current draw: 4.1A (total for motor and heater)
• 1m cable with bare-end termination
• Requires fixed wiring switch with minimum 3mm contact separation in each pole
• Class I (earthed) or Class II wiring configurations available
• Integrated PCB for connection to spa control panels or Genesis touchpads

Mounting & Positioning:

• Suitable for mounting below whirlpool baths and spas
• Secure using three screws through the rubber feet
• Must not be accessible to bathers without use of a tool
• Requires well-ventilated location for optimal heater performance
• Position in warmer areas where possible to maximise heating efficiency
• Ensure accessibility for future inspection and maintenance

Backflow Prevention (Critical):

• Install either a double air loop with one check valve, OR two check valves, above maximum water level
• Recommended: 32mm check valve to prevent backflow and reduce noise
• Pipe/hose system must be securely fixed to the blower outlet

Connection Details:

• Outlet: Rotatable 1½” BSP threaded union included
• 32mm tail-piece for flexible hose connection
• Union must be securely fitted to prevent air leaks

Heater Safety Information:

• Heating element automatically cuts out when air temperature exceeds approximately 50°C
• Per EN60335-2-60: Water temperature at bath inlet must not exceed 50°C when heater is active
• Heater designed to reduce cold air during start-up, not to continuously heat water

Thermal Protection Note: If the thermal protection activates, the blower will not restart until power is disconnected and reconnected AFTER the blower has cooled to room temperature.

📥 Downloads & Resources

📄 Genesis Blower Technical Data Sheet – TechSheet-BGB-500.pdf

📄 Genesis Blower Installation Manual – Manual-BGB-500.pdf

🥇 Why Choose This Air Blower

✅ Warm Air Comfort – The 250W integrated heater eliminates cold air shock, delivering comfortable warm bubbles from start-up for a superior bathing experience

✅ Powerful Performance – 700W motor provides strong, consistent airflow suitable for whirlpool baths and medium-sized hot tubs

✅ Smart Electronic Control – Integrated PCB enables seamless connection to spa control panels and Genesis touchpads for convenient operation

✅ European Quality & Safety – Manufactured by HydroAir/Balboa to EN60335-1 and EN60335-2-60 standards with automatic heater safety cut-out

✅ Installation Flexibility – Rotatable outlet and included 1½” BSP union accommodate diverse plumbing configurations

✅ Variable Speed Compatible – Works with external speed controllers for customisable bubble intensity to suit different preferences

🛒 Why Buy From Parts4Tubs?

✅ UK-based specialist supplier with expert knowledge of spa and hot tub components

✅ Technical advice available to help you select the right blower for your application

✅ Fast UK delivery to minimise downtime on your spa project

✅ Competitive pricing on genuine manufacturer parts

✅ Dedicated customer support for pre and post-purchase queries

✅ Secure online ordering with easy returns policy

✅ Genuine HydroAir/Balboa products – guaranteed authentic

✅ Optional warranty extension available for added peace of mind

🎯 Summary

The HydroAir Genesis G70-2HN-S delivers the perfect combination of power and comfort with its 700W motor and 250W integrated heater producing 950W total output. The heated airflow eliminates cold-air discomfort while electronic PCB control enables seamless integration with spa panels and touchpads. Built to European safety standards with automatic heater cut-out protection, this blower is ideal for whirlpool baths and medium hot tubs where warm, adjustable bubble massage enhances the bathing experience. Order now and upgrade to heated air luxury.
