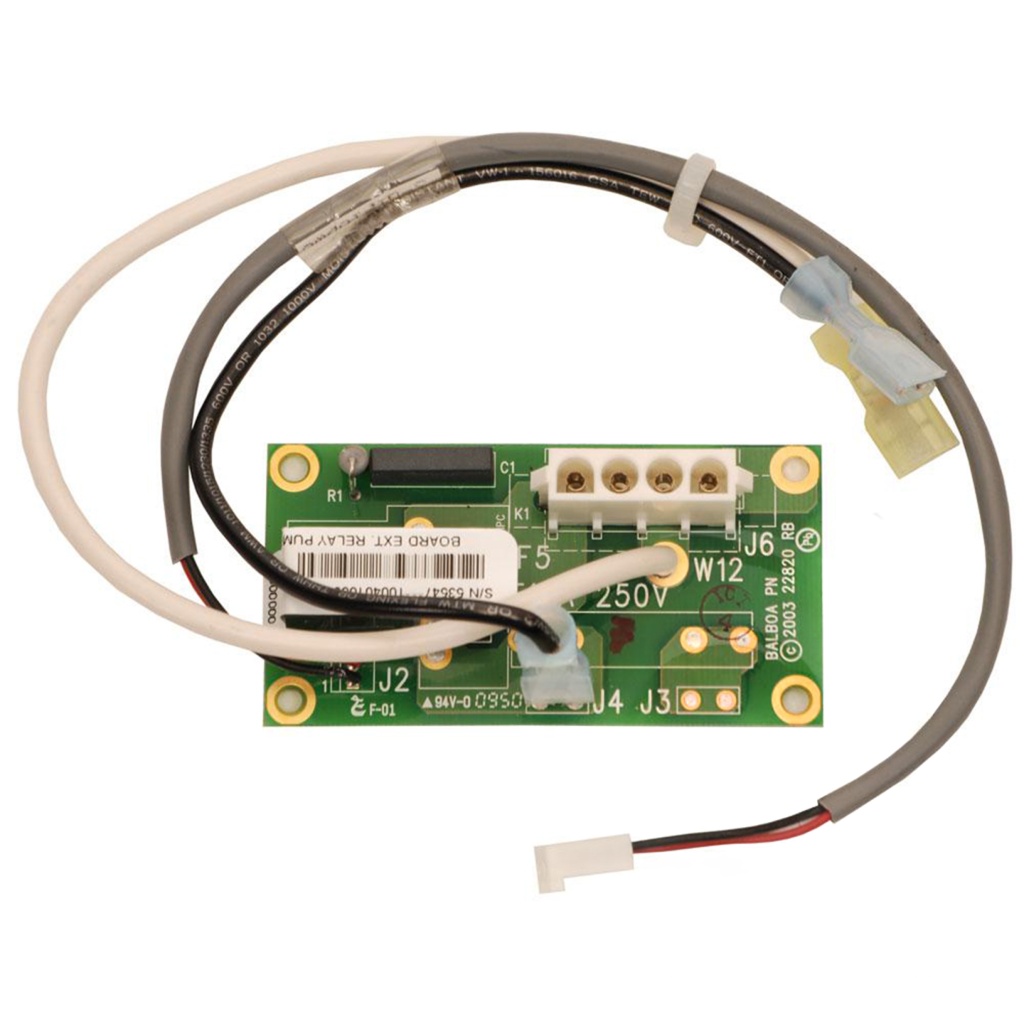

🛠️ Balboa Expander Board Pump Relay (GS-GL) – 1-Speed Pump or Blower Expansion Module
Compact relay expansion board to add one 1-speed pump or blower to your Balboa GS and GL control systems.
📋 Product Overview
This PCB is used in many Balboa GS and GL Systems to add a 1-speed pump or blower. The Balboa Expander Board Pump Relay is designed to extend the capabilities of GS and GL series control boxes, allowing you to add one additional 1-speed pump or blower to your spa system.
This compact expansion module connects to your existing GS or GL main board and provides the additional relay circuitry needed to operate an extra 1-speed pump or blower output.
✨ Key Features
✅ 230V / 50Hz Operation – Designed for UK and European electrical systems
✅ Flexible Output – Controls one additional 1-speed pump OR blower
✅ Ultra-Compact Design – Smallest footprint at just 80mm × 41mm
✅ GS and GL Compatible – Works with many Balboa GS and GL control boxes
✅ Official Balboa Part – Part number 53547
✅ Dual Function – Can be used for pump or blower expansion
🔧 Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balboa |
| Balboa Part Number | 53547 |
| Model / Series | GS and GL |
| Product Type | Expander Board |
| Input Voltage | 230V |
| Frequency | 50Hz |
| Output Support | One additional 1-speed pump or blower |
| Length | 80 mm |
| Height | 41 mm |
✅ Compatibility Guide
Compatible Control Systems
| Control System | Compatibility |
|---|---|
| Balboa GS series control boxes | ✅ Compatible (some models) |
| Balboa GL series control boxes | ✅ Compatible (some models) |
Note: This board is compatible with some Balboa GS and GL control boxes. Please verify your specific system before ordering.
Alternative for Higher Current
| Requirement | Recommended Board |
|---|---|
| Standard pump/blower | This board (CB-EX535) |
| 30A fuse protection needed | CB-EX550 |
If you need 30A fuse protection for your pump, please use CB-EX550 instead of this board.
⚙️ Board Functions
Output Options
| Function | Specification |
|---|---|
| Output Type | 1-speed pump OR blower |
| Number of Outputs | 1 |
This expander gives you flexibility – you can use it to add either:
- One additional 1-speed pump, OR
- One additional blower
How It Works
The expander board connects to your GS or GL main control board and provides:
- Additional relay control for a 1-speed output
- Integration with existing topside panel controls
- Pump or blower switching capability
🛠️ Installation Requirements
⚠️ IMPORTANT: This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate warranty.
Pre-Installation Checklist
- [ ] Verify you have a compatible GS or GL control system
- [ ] Confirm your pump/blower is 1-speed
- [ ] Check if you need 30A protection (if yes, use CB-EX550 instead)
- [ ] Disconnect all power at the isolator/breaker
- [ ] Photograph existing wiring connections
- [ ] Allow capacitors to discharge (wait 5 minutes minimum)
Electrical Requirements
| Requirement | Specification |
|---|---|
| Supply Voltage | 230V |
| Frequency | 50Hz |
| RCD Protection | Required (30mA recommended) |
| Earth Connection | Mandatory |
💡 Tip: This board must be installed in conjunction with a compatible GS or GL main board – it cannot operate independently.
⚠️ Safety Warnings
Electrical Safety
- ⚠️ ALWAYS disconnect power before any work
- ⚠️ Installation by experienced tradesman or competent individual required
- ⚠️ Ensure correct voltage supply (230V, 50Hz)
- ⚠️ Verify RCD protection is installed and functioning
- ⚠️ Never operate spa with covers removed from electrical components
Important Notes
- ⚠️ This is an expander board – not a main control PCB
- ⚠️ This PCB is for some Balboa GS and GL control boxes only
- ⚠️ Must not be fitted to any other device/product
- ⚠️ Faulty install could result in board damage
- ⚠️ Faulty install will invalidate warranty
- ⚠️ Use CB-EX550 if you require 30A fuse protection
🎯 Ideal Applications
| Application | Suitability | Notes |
|---|---|---|
| ♨️ Balboa GS Series Systems | ✅ Compatible | Check specific model |
| ♨️ Balboa GL Series Systems | ✅ Compatible | Check specific model |
| ♨️ 1-Speed Pump Addition | ✅ Ideal | Standard current pumps |
| ♨️ Blower Addition | ✅ Ideal | Standard blower expansion |
| ♨️ Expander Replacement | ✅ Direct replacement | Part number 53547 |
This board is designed for:
- Adding a 1-speed pump to GS or GL systems
- Adding a blower to GS or GL systems
- Replacing faulty expander boards (part 53547)
- Standard current applications (for 30A protection, use CB-EX550)
❓ Frequently Asked Questions
Q: Is this a main control board or an expander? A: This is an expander board that works alongside your GS or GL main control board. It adds the capability to control one additional 1-speed pump or blower.
Q: Can I add a 2-speed pump with this board? A: No, this board supports 1-speed pumps only. For 2-speed pump expansion, you would need a different expander.
Q: Can I use this for either a pump OR a blower? A: Yes, this board can be used to add either one 1-speed pump or one blower – you choose based on your spa requirements.
Q: What if I need 30A fuse protection? A: If you require 30A fuse protection for your pump, please use CB-EX550 instead of this board.
Q: Will this work with all GS and GL systems? A: It works with some Balboa GS and GL control boxes. Please verify your specific system compatibility before ordering.
Q: What is the Balboa part number? A: The official Balboa part number is 53547.
GS-GL Expander Options:
| Requirement | Recommended Board |
|---|---|
| Standard 1-speed pump or blower | This board (CB-EX535 / 53547) |
| 30A fuse protection needed | CB-EX550 |
🏆 Why Choose the Balboa GS-GL Pump Relay Expander Board
- ✅ Official Balboa Part – Part number 53547
- ✅ 230V / 50Hz – Designed for UK electrical systems
- ✅ Dual Function – Add pump OR blower with one board
- ✅ 1-Speed Output – Controls standard speed pumps/blowers
- ✅ Smallest Size – Just 80mm × 41mm footprint
- ✅ Wide Compatibility – Works with many GS and GL systems
- ✅ Proven Reliability – Balboa engineering quality
🤝 Why Buy From Parts4Tubs
- ✅ UK-based company with local support
- ✅ Fast UK delivery
- ✅ Expert technical advice from spa specialists
- ✅ Competitive pricing
- ✅ Full warranty support
- ✅ Easy returns within 30 days (unfitted items)
- ✅ Compatible parts and accessories available
- ✅ Help with identifying correct replacement board
✨ Summary
The Balboa Expander Board Pump Relay (GS-GL) is a compact expansion module designed for many Balboa GS and GL control systems. Operating at 230V / 50Hz, this board (Balboa part number 53547) adds the capability to control one additional 1-speed pump or blower. With dimensions of just 80mm × 41mm, it’s the smallest Balboa expander available. This versatile board can be used for either pump or blower expansion. If 30A fuse protection is required, use CB-EX550 instead. This is an expander board, not a main control PCB – it requires a GS or GL main board to function. Installation by an experienced tradesman or competent individual is required.
