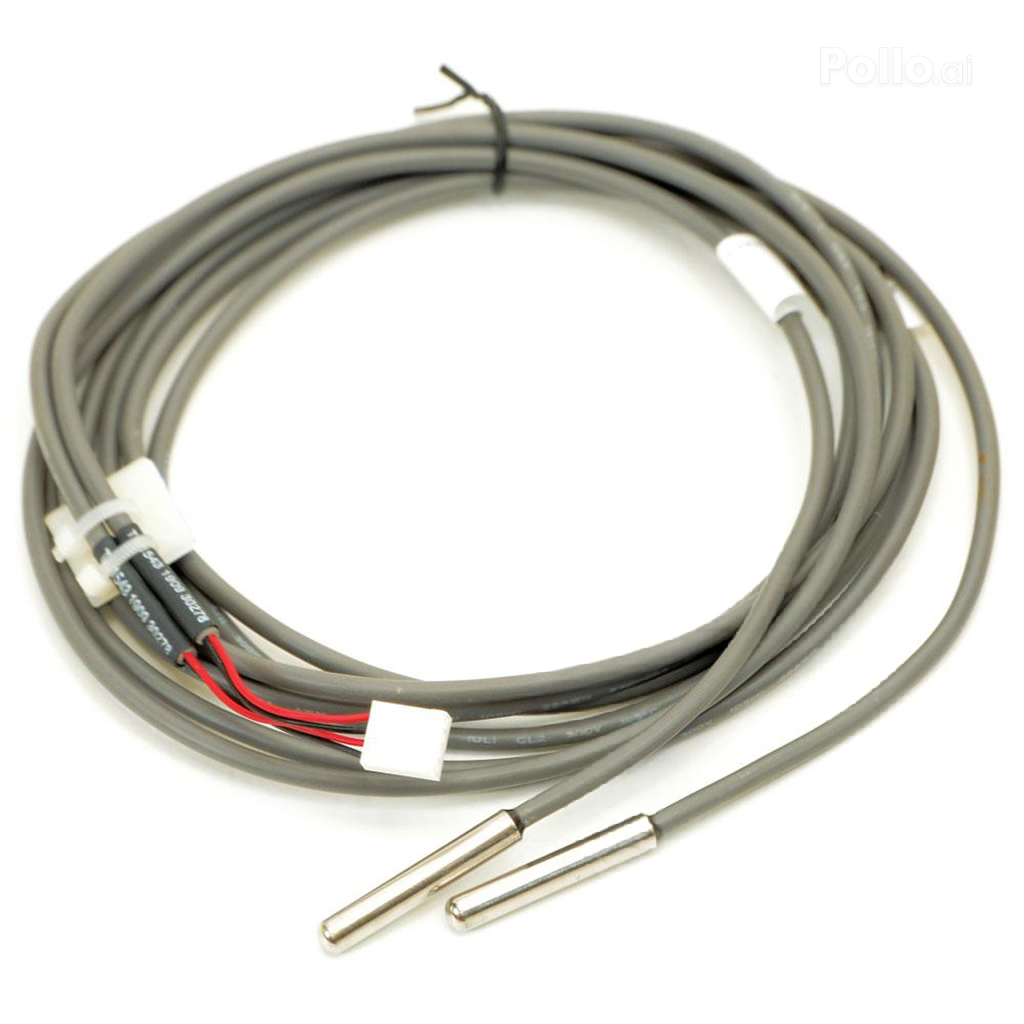

Balboa Double Sensor Harness 30278
£23.04
3 in stock
| Type of product: | Sensor assembly / harness |
| Manufacturer: | Balboa |
| 10 | |
| Connection: | The 2 probes slide in to their holders and the flat plastic plug plugs straight on to the PCB. |
| Size specification: | Temperature probe diameter: 6mm Hi limit probe diameter: 6mm Temp cable length: 2438mm or 96 inches Hi limit cable length: 787mm or 31 inches |
| Commonly used with: | This sensor is not overly common but found on some smaller Balboa applications. |
| Additional notes: | The long lead sensor is reads the temperature and goes into the spa and the one with the small lead is the high limit which goes into the back of the heater.
There are 2 parts to this assembly, the left and the right part have their own part numbers but the sensor combined reads a part number of 30278. |
| Part# | 30278 |
|---|
