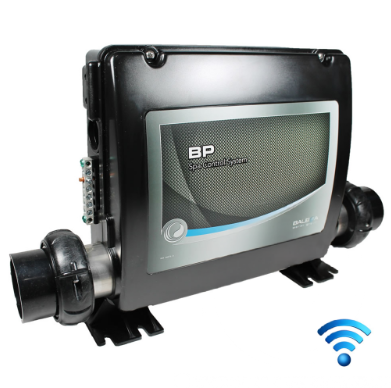

🔌 Balboa BP8 Advanced Spa Control System | 3.0kW Incoloy | Triple-Pump + Blower
The Modern Standard in Spa Control — Three Pumps, Dedicated Blower, Dual Power Options & WiFi Ready
📋 Product Overview
The Balboa BP8 is a versatile, modern spa control system designed to manage complex spa configurations with ease. Featuring an integrated 3.0kW Incoloy heater and support for three jet pumps, a dedicated blower, circulation pump, ozone, and enhanced lighting, the BP8 delivers exceptional capability for mid-to-large hot tub installations.
Unlike its predecessor, the BP8 provides a dedicated blower output — no shared connections means you get full pump capability AND air massage simultaneously. With compatibility for both Balboa TP Series and SpaTouch topside panels plus support for single-phase and three-phase power, this system adapts to virtually any installation requirement.
WiFi-ready for smartphone control and built with Balboa’s renowned reliability, the BP8 is the recommended replacement for the discontinued BP6013G1 and represents Balboa’s current standard for versatile spa control.
🔄 Replaces BP6013G1
| Previous Model | Current Model |
|---|---|
| BP6013G1 | ✅ BP8 (BX-BPBP8) |
💡 Upgrading from BP6013G1? The BP8 offers improved capability including an additional pump output and dedicated (non-shared) blower connection.
✨ Key Features at a Glance
| Feature | What It Does | Why It Matters |
|---|---|---|
| 🌡️ 3.0kW Incoloy Heater | Premium corrosion-resistant element | Durable, efficient heating for years of service |
| 💧 Triple-Pump Support | Control up to 3 jet pumps | Multiple jet zones for complete hydrotherapy |
| 💨 Dedicated Blower | Separate single-speed blower output | Air massage AND full pump capability together |
| 🔄 Circulation Pump | Dedicated circ pump output | Energy-efficient 24/7 filtration |
| 🫧 Ozone Ready | Integrated ozone output | Cleaner water with fewer chemicals |
| 💡 Enhanced Lighting | 10 VAC @ 2A max | Higher capacity for brighter spa lighting |
| 📱 WiFi Ready | Accepts compatible WiFi module | Control your spa from anywhere |
| ⚡ Dual Power Options | 230 VAC single-phase or three-phase | Flexible installation options |
| 🖥️ Wide Panel Compatibility | TP Series AND SpaTouch panels | More topside choices |
🔧 Technical Specifications
Core System
| Component | Specification | Details |
|---|---|---|
| Heater | 3.0kW Incoloy | Premium corrosion-resistant element |
| Pump 1 | Dual-speed OR Single-speed | Flexible main pump configuration |
| Pump 2 | Single-speed | Dedicated jet pump output |
| Pump 3 | Single-speed | Additional jet pump output |
| Blower | Single-speed | Dedicated output (not shared) |
| Circulation Pump | ✅ Yes | Low-energy filtration pump |
| Ozone Output | ✅ Yes | Sanitation system ready |
| Light Output | 10 VAC @ 2A max | Enhanced capacity lighting |
| WiFi | ✅ Ready | Module sold separately |
Electrical Specifications
| Specification | Value |
|---|---|
| Power Supply | 230 VAC |
| Phase Options | Single-phase OR Three-phase |
| Heater Output | 3.0kW |
| Light Output | 10 VAC @ 2A maximum |
Plumbing Specifications
| Specification | Value |
|---|---|
| Plumbing Size | 2″ |
| Heater Connections | 2″ unions |
📐 Dimensions & Footprint
| Measurement | Value | Notes |
|---|---|---|
| Length | 490 mm | Including heater assembly |
| Height | 270 mm | Vertical dimension |
| Depth | 100 mm | Slim profile design |
🔗 Topside Panel Compatibility
The BP8 offers expanded topside compatibility, working with both traditional TP Series and modern SpaTouch panels.
| Panel Type | Compatible |
|---|---|
| All Balboa TP Series | ✅ Yes |
| All Balboa SpaTouch | ✅ Yes |
Wider Choice
This dual compatibility gives you flexibility to choose between classic button-style TP panels or sleek touchscreen SpaTouch interfaces — whatever suits your spa and preferences.
⚙️ Pump Configuration
The BP8 provides comprehensive pump control with clear, dedicated outputs:
Pump Output Overview
| Pump | Speed Options | Notes |
|---|---|---|
| Pump 1 | Dual-speed OR Single-speed | Flexible main pump |
| Pump 2 | Single-speed | Dedicated output |
| Pump 3 | Single-speed | Dedicated output |
| Blower | Single-speed | Dedicated output (not shared) |
| Circulation | ✅ Yes | Low-energy filtration |
Key Advantage: Dedicated Blower
Unlike some control systems where the blower shares an output with a pump, the BP8 provides a completely separate blower output. This means:
| Configuration | Result |
|---|---|
| All 3 Pumps Active | ✅ Available |
| Blower Active | ✅ Available simultaneously |
| Full System Operation | ✅ No compromises |
✨ No Trade-offs: Run all three pumps AND the blower at the same time — no shared outputs to limit your options.
💨 Blower Control
The BP8 features a dedicated single-speed blower output — completely independent from pump outputs.
| Blower Feature | Specification |
|---|---|
| Type | Single-speed |
| Output | Dedicated (not shared) |
| Control | Via topside panel |
Air Massage Benefits
- Always Available — Blower works regardless of pump configuration
- Full Capability — No need to sacrifice pump outputs for air massage
- Simultaneous Operation — Jets and bubbles together
🫧 Ozone System Integration
Built-in ozone output connects your spa’s ozonator for enhanced water sanitation.
| Ozone Feature | Specification |
|---|---|
| Output | ✅ Yes |
| Connection | Standard ozonator hookup |
💡 Enhanced Lighting Control
The BP8 provides enhanced lighting output with higher current capacity than many control systems.
| Light Specification | Value |
|---|---|
| Voltage Output | 10 VAC |
| Maximum Current | 2A |
Higher Capacity
The 2A maximum output (compared to 1A on many systems) allows for brighter lighting configurations or multiple light connections.
📱 WiFi Connectivity

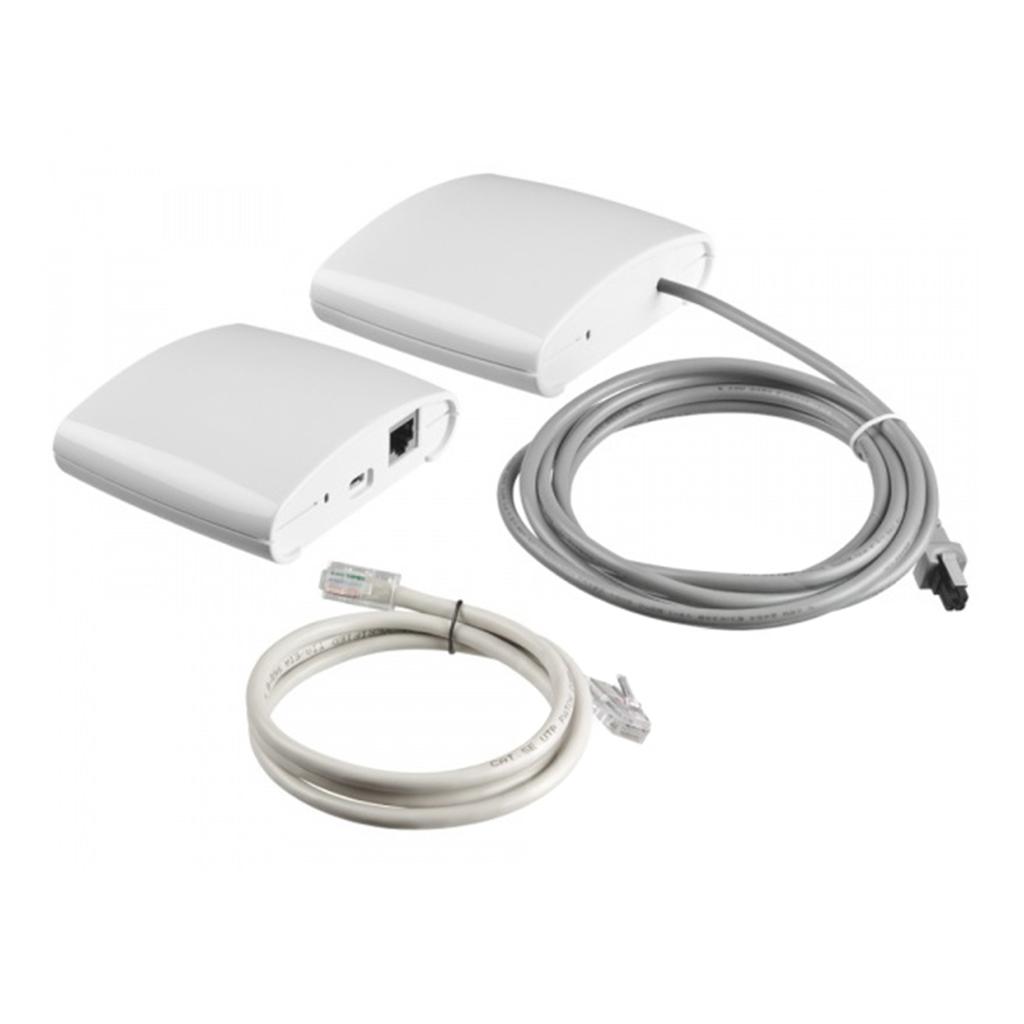

The BP8 is WiFi-ready, accepting compatible modules for smartphone and tablet control.
| WiFi Feature | Status |
|---|---|
| WiFi Ready | ✅ Yes |
| Module Included | ❌ No (sold separately) |
| Control Method | Compatible smart devices |
Remote Control Benefits
- Pre-Heat Your Spa — Start warming before you arrive
- Temperature Monitoring — Check water temp from anywhere
- Feature Control — Manage pumps, lights, blower remotely
- Status Updates — Know your spa’s condition anytime
⚡ Dual Power Options
The BP8 supports both single-phase and three-phase 230 VAC power connections, providing installation flexibility.
| Power Option | Specification |
|---|---|
| Single-Phase | 230 VAC |
| Three-Phase | 230 VAC |
Flexible Installation
Whether your site has single-phase domestic supply or three-phase commercial power, the BP8 adapts to your electrical infrastructure.
🎯 Ideal Applications
| Application | Suitability | Why It’s a Good Fit |
|---|---|---|
| 🔧 BP6013G1 Replacement | ⭐⭐⭐⭐⭐ | Direct upgrade with improved capability |
| 🛁 Multi-Zone Hot Tubs | ⭐⭐⭐⭐⭐ | Three pumps for independent jet control |
| 💨 Spas with Air Massage | ⭐⭐⭐⭐⭐ | Dedicated blower — no compromises |
| 🏠 Mid-to-Large Home Spas | ⭐⭐⭐⭐⭐ | 3.0kW heating handles larger volumes |
| 🔄 System Upgrades | ⭐⭐⭐⭐⭐ | Modern replacement for older systems |
| 🖥️ SpaTouch Installations | ⭐⭐⭐⭐⭐ | Full touchscreen panel compatibility |
📦 What’s Included
| Item | Included |
|---|---|
| BP8 Control Box | ✅ Yes |
| 3.0kW Incoloy Heater | ✅ Yes |
| Topside Panel | ❌ No (sold separately) |
| WiFi Module | ❌ No (sold separately) |
❓ Frequently Asked Questions
Replacement & Compatibility
Q: Does this replace the BP6013G1? A: Yes, the BP8 is the direct replacement for the discontinued BP6013G1.
Q: What improvements does the BP8 offer over BP6013G1? A: The BP8 adds a third pump output, provides a dedicated (non-shared) blower output, offers higher lighting capacity (2A vs 1A), and includes SpaTouch panel compatibility.
Q: Which topside panels work with the BP8? A: All Balboa TP Series panels AND all SpaTouch panels are compatible.
Pump & Blower
Q: How many pumps can this control? A: The BP8 controls up to 3 jet pumps plus a dedicated circulation pump.
Q: Is the blower shared with a pump output? A: No — the BP8 has a dedicated blower output, completely separate from pump outputs. You can run all three pumps AND the blower simultaneously.
Q: Can Pump 1 be dual-speed? A: Yes, Pump 1 can be configured as dual-speed or single-speed. Pumps 2 and 3 are single-speed.
Electrical
Q: What power supply options are available? A: The BP8 supports 230 VAC in either single-phase or three-phase configuration.
Q: What type of heater element is used? A: 3.0kW Incoloy — a premium, corrosion-resistant heating element.
WiFi & Control
Q: Is WiFi included? A: The unit is WiFi-ready; the module is sold separately.
Q: Can I use a SpaTouch panel instead of TP Series? A: Yes, the BP8 is compatible with both TP Series and SpaTouch panels.
Lighting
Q: What is the lighting output capacity? A: 10 VAC @ 2A maximum — higher than many control systems, allowing for brighter or multiple light configurations.
Dimensions
Q: What are the dimensions? A: 490 mm (L) × 270 mm (H) × 100 mm (D).
Q: Is this similar in size to the BP6013G1? A: The BP8 has a different profile (100mm depth vs 120mm width on BP6013G1) but similar overall footprint.
📥 Documentation & Downloads
📄 BP8 Technical Data Sheet — Complete specifications, wiring diagrams, and technical details
🏆 Why Choose the Balboa BP8?
- ✅ Triple-Pump Control — Manage 3 jet pumps plus circulation
- ✅ Dedicated Blower — Separate output, no compromises
- ✅ 3.0kW Incoloy Heater — Premium corrosion-resistant element
- ✅ Enhanced Lighting — 10 VAC @ 2A maximum capacity
- ✅ Dual Power Options — Single-phase or three-phase 230 VAC
- ✅ WiFi Ready — Add smartphone control anytime
- ✅ Wide Panel Compatibility — TP Series AND SpaTouch
- ✅ BP6013G1 Replacement — Modern upgrade for discontinued model
- ✅ Balboa Quality — Industry-leading reliability
- ✅ Slim Profile — 100mm depth fits tight spaces
🤝 Why Buy From Parts4Tubs?
| ✅ | What You Get |
|---|---|
| 🇬🇧 | UK-Based Company — Local support, local expertise |
| 🚚 | Fast UK Delivery — Get your parts quickly |
| 💬 | Expert Advice — Spa specialists ready to assist |
| 💷 | Competitive Pricing — Excellent value on genuine parts |
| 🛡️ | Full Warranty — Complete manufacturer backing |
| ↩️ | Easy Returns — 30-day hassle-free returns |
| 🔧 | Technical Support — Expert help when you need it |
| 🔗 | Compatible Accessories — Everything you need in one place |
✨ Summary
The Balboa BP8 is a versatile, modern spa control system designed to manage complex spa configurations. Featuring an integrated 3.0kW Incoloy heater, support for three jet pumps (Pump 1 dual-speed capable), a dedicated single-speed blower (not shared with pumps), circulation pump, ozone integration, and enhanced 10 VAC @ 2A lighting output, the BP8 delivers comprehensive control in a slim 490 × 270 × 100 mm package.
Compatible with all Balboa TP Series and SpaTouch topside panels, the BP8 supports both single-phase and three-phase 230 VAC power for maximum installation flexibility. WiFi-ready for smartphone control and designed as the direct replacement for the discontinued BP6013G1, the BP8 represents Balboa’s current standard for versatile, reliable spa control with no compromises — full pump capability AND dedicated air massage in one system.
