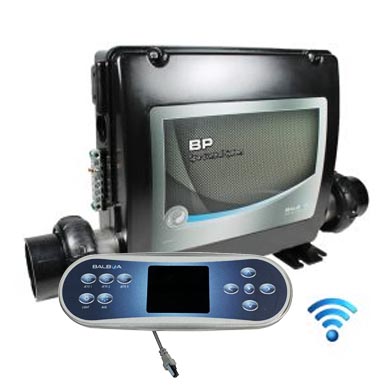

Revolutionize Your Hot Tub Experience with the Balboa BP6013G2 Control Box

Introducing the Future of Hot Tub Control

As an experienced hot tub enthusiast and parts supplier, I’m excited to introduce you to the Balboa BP6013G2 Control Box. This WiFi-ready control system is designed to transform your hot tub into a smart, efficient, and easily manageable oasis of relaxation.

Cutting-Edge Technology at Your Fingertips

The BP6013G2 represents the pinnacle of hot tub control technology. With its WiFi-ready capabilities, this control box opens up a world of possibilities for remote operation and monitoring. Imagine adjusting your hot tub settings from the comfort of your living room or even while you’re away from home. The future of hot tub management is here, and it’s more accessible than ever.

Versatile and Powerful

This control box is designed to cater to a wide range of hot tub configurations:

• Pump Options: Supports dual-speed main pump or single-speed with circulation pump, plus additional single-speed pumps
• Blower Compatibility: Accommodates a single-speed blower for that perfect bubble massage
• Heating Efficiency: Equipped with a robust 3kW heater to maintain your ideal water temperature
• Lighting and Extras: Controls for ozone purification and mood lighting, with the option for radio and TV/AV connections

Smart Design for Easy Installation

The Balboa BP6013G2 is built with both performance and practicality in mind:

• Compact Dimensions: At just 500mm long (including heater), 120mm wide, and 300mm high, it fits seamlessly into most hot tub setups
• Simple Connections: Features 2-inch socket heater union sleeves and plug-in amp cables for straightforward installation
• Flexible Power Options: Compatible with both 1 and 3 phase electrical connections

Advanced M7 Technology

The BP6013G2 incorporates Balboa’s innovative M7 technology, simplifying your hot tub’s operation:

• Eliminates the need for external sensors and flow switches
• Utilizes two internal sensors for precise control and monitoring
• Enhances reliability and reduces potential points of failure

Specifications Table

Feature	Specification
Manufacturer	Balboa
Voltage	230VAC
Frequency	50Hz
Pump 1	Dual speed or Single speed with circulation pump
Pump 2	Single Speed
Pump 3	Available (if no Blower)
Blower	Single speed (if no Pump 3)
Heater	1 x 3kW
Ozone	x 1
Light	x1, 10v @ 1amp Max
WiFi	Ready for receiver installation
Compatible Panels	Balboa TP Series (TP400, TP600, TP800, TP900)
Dimensions	500mm (L) x 120mm (W) x 300mm (H)

Easy Integration with Your Devices

With the addition of a WiFi receiver (sold separately), you can unlock the full potential of the BP6013G2:

• Compatible with Android®, iPhone®, iPod touch®, and iPad®
• Monitor and control your hot tub from anywhere with an internet connection
• Adjust temperature, manage pump schedules, and more with user-friendly apps

Professional Installation Recommended

While the BP6013G2 is designed for straightforward integration, I always recommend professional installation to ensure optimal performance and safety. This control box is a generic, unlicensed unit, and proper installation is crucial for maintaining its functionality and warranty.

Elevate Your Hot Tub Experience Today

The Balboa BP6013G2 Control Box is more than just a component; it’s an upgrade to your entire hot tub experience. With its advanced features, smart technology, and user-friendly design, it’s the perfect choice for hot tub owners looking to embrace the future of relaxation.

Ready to take your hot tub to the next level? The Balboa BP6013G2 Control Box is the key to unlocking a world of convenience, efficiency, and pure enjoyment. Don’t let your hot tub be left behind in the digital age – upgrade today and experience the difference!

Balboa TP700 Topside Control: Elevate Your Hot Tub Experience

Introduction

As a dedicated hot tub enthusiast and spare parts supplier, I’m excited to introduce you to the Balboa TP700 Topside Control. This state-of-the-art control panel is designed to revolutionize your hot tub experience, offering intuitive controls and advanced features that will take your relaxation to the next level.

Cutting-Edge Technology at Your Fingertips

The Balboa TP700 is not just a control panel; it’s your gateway to ultimate hot tub customization. With its sleek design and user-friendly interface, this topside control brings modern technology to your outdoor oasis.

Advanced Touch Panel Interface

Featuring a high-tech digital large face screen, the TP700 displays component symbols with crystal clarity. Time functions and advanced error message displays ensure you’re always in the know about your hot tub’s status.

Versatile Button Configuration

The 10-button layout is intuitively designed for ease of use:

• Left side: JETS 1, JETS 2, JETS 3, LIGHT, AUX
• Right side: UP, DOWN, LEFT, RIGHT, and SELECT

This configuration allows for seamless control of all your hot tub’s functions, from adjusting jet intensity to setting the perfect ambiance with lighting.

Compatibility and Installation

Universal Compatibility

The Balboa TP700 is compatible with all BP Series systems, making it a versatile choice for a wide range of hot tub models. Whether you’re upgrading an older system or replacing a faulty control panel, the TP700 is designed to integrate seamlessly.

Easy Installation

With its 4 black plastic pins in a grid formation, connecting the TP700 to your hot tub’s system is a breeze. The control panel’s design allows for versatile installation options, ensuring it fits perfectly with your hot tub’s layout.

User-Friendly Features

Multilingual Support

The TP700 caters to a global audience with its multiple language options. Navigate through settings and functions in your preferred language, making operation intuitive and comfortable.

Stylish Design

Not only functional but also aesthetically pleasing, the TP700’s stylish design complements any hot tub decor. Its modern look adds a touch of sophistication to your spa area.

Technical Specifications

To help you understand the Balboa TP700’s capabilities, here’s a detailed specifications table:

Feature	Specification
Type	Topside control, touch panel
Manufacturer	Balboa
Power	12V
Compatibility	All BP Series
Button Configuration	10 Buttons (5 left, 5 right)
Connections	4 black plastic pins (grid formation)
Screen	Hi-Tech digital large face screen
Display Features	Component symbols, time functions, error messages
Dimensions	Length: 250 mm, Height: 90 mm
Language Support	Multiple languages
Installation	Versatile options

Why Choose the Balboa TP700?

The Balboa TP700 Topside Control is more than just a replacement part; it’s an upgrade to your entire hot tub system. Its combination of advanced technology, user-friendly design, and versatile compatibility makes it the perfect choice for hot tub owners looking to enhance their spa experience.

With its large, easy-to-read display and intuitive button layout, you’ll have complete control over your hot tub’s functions. Whether you’re adjusting the temperature on a chilly evening or setting up a relaxing light show for a nighttime soak, the TP700 puts the power of customization at your fingertips.

Conclusion

As someone who understands the importance of quality hot tub components, I can confidently say that the Balboa TP700 Topside Control is a game-changer. It combines functionality, style, and ease of use in a package that will transform your hot tub experience.

Upgrade your hot tub today with the Balboa TP700 and discover a new level of relaxation and control. Your perfect spa experience awaits!

Documentation

• TP700 User Manual
• BP6013G2 Tech Sheet



Hot Tub Wiring – Configuring a Balboa BP7 Spa Control 4.0kW Spa Pack

If you are using a basic setup, and by basic I mean a regular dual speed hot tub pump with a single speed blower, out of the box, your Balboa pack is likely to work without any additional configuration. However, if you are not using a separate circulation pump, the chances are you will need to “configure” the pack using the details below.

On the underside of the Spa Pack covers, you will see a circuit diagram that looks something like this.

Firstly, you need to work through the setup table at the bottom on the left hand side and work out which setup number you need. For example, a 2 speed pump and a single speed blower will need setup #12.

Next, you need to change the DIP switch settings to match your setup. Once you have the right combination of DIP switches, using the topside control you should do the following to change the pack’s setup mode to #12.

To go into the low levels follow the following steps please.

1. Turn tub off.
2. DIP switch 1 move to ON.
3. Turn tub on
4. On the top side control, Press “WARM” twice
5. Press “LIGHT”
6. Press “WARM”
7. Then use “WARM” to move down to the low levels until you get on the set up number you need.
8. Turn off tub
9. DIP switch one back to OFF
10. Turn on tub

Getting the right setup and config is important for the pack to function correctly and the buttons on the top side to do what you expect them to.



Balboa DIP Switches Explained

Most of the Balboa Spa Packs have a set of DIP switches that can seem a little confusing in the setup. In the most basic form, you are telling the Spa Pack how many pumps or blowers you have connected and how many it should allow to run before it turns off the heater (or let them all run at once). The reason for this is if you are limiting the amount of current the pack can draw. You are also telling the pack wither you need additional cool down times if you are using an gas/propane/ASHP additional heater. This to stop the kettling effect you can get in the heaters.

Check the circuit diagram that is on the inside of your Balboa pack and do not just copy the settings I explain below as they may be in a different order. The “logic” behind them is the same so just check what each of the DIP switches says it does.

Fixed-fuction DIP Switches

A1 Test Mode (normally Off).

A2 In “ON” position, add one high-speed pump (or blower) with Heater. (If you have 1 pump and NO blower use this)

A3 In “ON” position, add two high-speed pumps (or 1 HS Pump and Blower) with Heater. (If you have a pump and a blower use this)

A4 In “ON” position, add four high-speed pumps (or 3 HS Pumps and Blower) with Heater. (If you have two or three pumps and a blower use this)

You should only enable one of the A2, A3 or A4. You can use them in combinations, but it is easier just to use one.

A5 In “ON” position, enables Special Amperage Rule B.  In “OFF” position, enables Special Amperage Rule A.

Special Amperage Rule A No Limitation (if you are not sure, set it to this. Worst case, your electric will trip if you don’t have enough current available)

Special Amperage Rule B 2 High Speed Pump Maximum, in Setups 1 – 9 1 High Speed Pump Maximum, and also Blower turns off with 1 High Speed Pump, in Setups 10 – 18 (avoid this if you can)

A6 Persistent memory reset (Used when the spa is powering up to restore factory settings as determined by software configuration).

A2, A3, and A4 work in combination to determine the number of high-speed devices and blowers that can run before the heat is disabled. i.e. A2 and A3 in the ON position and A4 in the OFF position will allow the heater to operate with up to 3 high‑speed pumps (or two HS Pumps and Blower) running at the same time. Heat is disabled when the fourth high-speed pump or blower is turned on.

Note: A2/A3/A4 all off = No heat with any high-speed pump or blower.

Assignable DIP Switches

A7 In “ON” position, enables a 5-minute cooldown for some gas heaters (Cooling Time B). In “OFF” position, enables a 1-minute cooldown for electric heaters (Cooling Time A).
