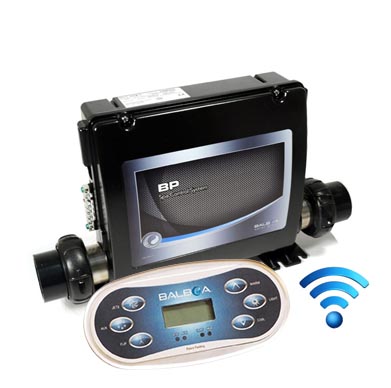

Revolutionize Your Hot Tub Experience with the Balboa BP2100G1 Control Box

Introducing the Ultimate Hot Tub Command Center

As a passionate hot tub enthusiast and spare parts specialist, I’m thrilled to introduce you to the Balboa BP2100G1 Control Box. This WiFi-ready control system is not just a component; it’s the brain of your hot tub, designed to elevate your relaxation experience to new heights.

Cutting-Edge Features

WiFi Connectivity

The BP2100G1 is built for the modern age. With its WiFi-ready design, you can control your hot tub from anywhere using your smartphone or tablet. Imagine adjusting the temperature or turning on the jets while you’re still at work, ensuring your hot tub is perfect when you arrive home.

M7 Technology

Balboa’s innovative M7 technology simplifies installation and improves reliability. By integrating sensors and flow switches within the control box, it eliminates the need for additional components in your tub, reducing potential points of failure.

Versatile Pump Control

This control box offers exceptional flexibility:

• Support for up to three pumps
• Options for single or dual-speed pumps
• Dedicated circulation pump support

Comprehensive Accessory Management

The BP2100G1 doesn’t stop at pumps. It expertly manages:

• Air blower
• Ozone generator
• LED lighting
• Even a connection point for your entertainment system

Specifications

Feature	Specification
Voltage	230VAC
Frequency	50Hz
Heater	3kW
Pump 1	Single or dual speed
Pump 2	Single or dual speed
Pump 3	Single speed (dual if no blower)
Circulation Pump	Optional
Air Blower	x1
Ozone	x1
Light	x1, 10V @ 1amp Max
Radio/TV/AV	Connection available
WiFi	Compatible with receiver for smartphone operation
Compatible Panels	Balboa TP Series (TP400, TP600, TP800, TP900)
Heater Connections	2-inch socket union sleeves
Component Connections	Amp cables plug directly into PCB
Dimensions	500mm length (with heater), 330mm (box only) x 120mm width x 300mm height
Power Options	1 and 3 phase connections

Documentation

• Welcome Guide
• BP2100G1 Tech Sheet
• Easy Installation Guide
• Wifi Receiver Installation Guide
• App User Guide

Easy Installation and Compatibility

The BP2100G1 is designed for straightforward installation. Its 2-inch socket heater union sleeves and plug-in amp cables make connecting components a breeze. Compatible with Balboa’s popular TP Series topside panels, it integrates seamlessly with your existing setup or new build.

Built for Flexibility

Whether you’re upgrading an existing hot tub or building a custom spa, the BP2100G1 adapts to your needs. Its support for various pump configurations, including a dedicated circulation pump, allows for customized water flow and jet control.

The Power of Control at Your Fingertips

With the addition of a WiFi receiver, you can transform your smartphone into a powerful hot tub remote. Compatible with both Android and iOS devices, you’ll have complete control over your spa experience, whether you’re at home or on the go.

Quality You Can Trust

As an experienced hot tub parts supplier, I’ve seen firsthand the reliability and performance of Balboa products. The BP2100G1 continues this tradition of excellence, offering robust construction and advanced features that stand the test of time.

Important Notes

• This control box is designed for installation by a competent individual or tradesman.
• For setups using 3 pumps and a blower, a splitter cable (SKU: CA-CS893) is required.
• While this is a versatile and powerful unit, proper installation is crucial to ensure optimal performance and longevity.

Upgrade your hot tub experience with the Balboa BP2100G1 Control Box. It’s more than just a component; it’s the key to unlocking the full potential of your spa. With its advanced features and user-friendly design, you’ll wonder how you ever managed without it.

Balboa TP600 Topside Control: Elevate Your Hot Tub Experience

Introduction

As a dedicated hot tub enthusiast and spare parts specialist, I’m excited to introduce you to the Balboa TP600 Topside Control. This advanced control panel is designed to enhance your hot tub experience, providing intuitive operation and seamless integration with a wide range of Balboa systems.

Key Features

User-Friendly Interface

The TP600 boasts a sleek, modern design with a touch-sensitive panel that’s responsive and easy to use. Its intuitive button configuration includes WARM, COOL, MODE, JETS, BLOWER, LIGHT, functions, allowing you to effortlessly control every aspect of your hot tub.

IF YOU NEED A DIFFERENT CONFIGURATION, YOU CAN PURCHASE THIS, PLUS AN OVERLAY CARD, THEY ARE INTERCHANGEABLE

Versatile Compatibility

This topside control is compatible with popular Balboa systems including Viper, Revolution, and Colossus. It also works seamlessly with Balboa BP Series such as BP601 and BP2100, making it a versatile choice for many hot tub models.

Clear and Informative Display

The TP600 features a Serial Standard style screen with 4 large digits in a horizontal line, complemented by scrolling text. This ensures that you can easily read important information about your hot tub’s status, even in low light conditions.

Technical Specifications

To help you understand the TP600’s capabilities, I’ve compiled a detailed specifications table:

Specification	Detail
Type of Product	Topside control, touch panel or touch pad
Manufacturer	Balboa
Power	12V
Button Configuration	JETS, AUX, FLIP, WARM, LIGHT, COOL
Connections	4 black plastic pins in a grid formation
Screen Type	Serial Standard style
Screen Display	4 large digits in horizontal line with scrolling text
Dimensions	Length: 178 mm, Height: 86 mm
Included Accessories	Overlay

Documentation

• balboa user guide

Easy Installation

The TP600’s compact dimensions (178 mm length x 86 mm height) make it suitable for most standard hot tub configurations. Its connection system, featuring 4 black plastic pins in a grid formation, ensures a secure and straightforward installation process.

Enhance Your Hot Tub’s Functionality

By upgrading to the Balboa TP600 Topside Control, you’re not just replacing a part – you’re enhancing your entire hot tub experience. The touch-sensitive interface allows for precise control over your hot tub’s functions, while the clear display keeps you informed about water temperature and system status at all times.

Built to Last

Manufactured by Balboa, a trusted name in hot tub components, the TP600 is built with durability in mind. It’s designed to withstand the humid environment of your hot tub area, ensuring long-lasting performance and reliability.

Perfect for Upgrades or Replacements

Whether you’re looking to upgrade your existing system or replace a worn-out control panel, the TP600 is an excellent choice. Its compatibility with various Balboa systems means it’s likely to work with your current setup, providing an easy path to improved functionality.

Conclusion

The Balboa TP600 Topside Control is more than just a component – it’s the command center for your hot tub experience. With its user-friendly interface, clear display, and robust construction, it’s the perfect choice for hot tub owners who demand the best in control and convenience.

Upgrade your hot tub experience today with the Balboa TP600 Topside Control!



Hot Tub Wiring – Configuring a Balboa BP7 Spa Control 4.0kW Spa Pack

If you are using a basic setup, and by basic I mean a regular dual speed hot tub pump with a single speed blower, out of the box, your Balboa pack is likely to work without any additional configuration. However, if you are not using a separate circulation pump, the chances are you will need to “configure” the pack using the details below.

On the underside of the Spa Pack covers, you will see a circuit diagram that looks something like this.

Firstly, you need to work through the setup table at the bottom on the left hand side and work out which setup number you need. For example, a 2 speed pump and a single speed blower will need setup #12.

Next, you need to change the DIP switch settings to match your setup. Once you have the right combination of DIP switches, using the topside control you should do the following to change the pack’s setup mode to #12.

To go into the low levels follow the following steps please.

1. Turn tub off.
2. DIP switch 1 move to ON.
3. Turn tub on
4. On the top side control, Press “WARM” twice
5. Press “LIGHT”
6. Press “WARM”
7. Then use “WARM” to move down to the low levels until you get on the set up number you need.
8. Turn off tub
9. DIP switch one back to OFF
10. Turn on tub

Getting the right setup and config is important for the pack to function correctly and the buttons on the top side to do what you expect them to.



Balboa DIP Switches Explained

Most of the Balboa Spa Packs have a set of DIP switches that can seem a little confusing in the setup. In the most basic form, you are telling the Spa Pack how many pumps or blowers you have connected and how many it should allow to run before it turns off the heater (or let them all run at once). The reason for this is if you are limiting the amount of current the pack can draw. You are also telling the pack wither you need additional cool down times if you are using an gas/propane/ASHP additional heater. This to stop the kettling effect you can get in the heaters.

Check the circuit diagram that is on the inside of your Balboa pack and do not just copy the settings I explain below as they may be in a different order. The “logic” behind them is the same so just check what each of the DIP switches says it does.

Fixed-fuction DIP Switches

A1 Test Mode (normally Off).

A2 In “ON” position, add one high-speed pump (or blower) with Heater. (If you have 1 pump and NO blower use this)

A3 In “ON” position, add two high-speed pumps (or 1 HS Pump and Blower) with Heater. (If you have a pump and a blower use this)

A4 In “ON” position, add four high-speed pumps (or 3 HS Pumps and Blower) with Heater. (If you have two or three pumps and a blower use this)

You should only enable one of the A2, A3 or A4. You can use them in combinations, but it is easier just to use one.

A5 In “ON” position, enables Special Amperage Rule B.  In “OFF” position, enables Special Amperage Rule A.

Special Amperage Rule A No Limitation (if you are not sure, set it to this. Worst case, your electric will trip if you don’t have enough current available)

Special Amperage Rule B 2 High Speed Pump Maximum, in Setups 1 – 9 1 High Speed Pump Maximum, and also Blower turns off with 1 High Speed Pump, in Setups 10 – 18 (avoid this if you can)

A6 Persistent memory reset (Used when the spa is powering up to restore factory settings as determined by software configuration).

A2, A3, and A4 work in combination to determine the number of high-speed devices and blowers that can run before the heat is disabled. i.e. A2 and A3 in the ON position and A4 in the OFF position will allow the heater to operate with up to 3 high‑speed pumps (or two HS Pumps and Blower) running at the same time. Heat is disabled when the fourth high-speed pump or blower is turned on.

Note: A2/A3/A4 all off = No heat with any high-speed pump or blower.

Assignable DIP Switches

A7 In “ON” position, enables a 5-minute cooldown for some gas heaters (Cooling Time B). In “OFF” position, enables a 1-minute cooldown for electric heaters (Cooling Time A).
