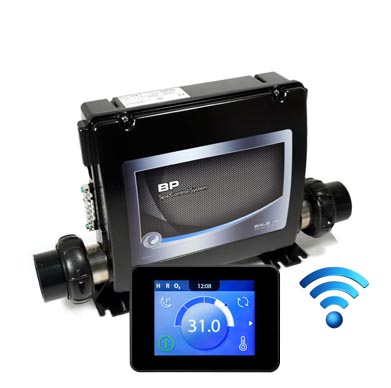

Revolutionize Your Hot Tub Experience with the Balboa BP2100G1 Control Box

Introducing the Ultimate Hot Tub Command Center

As a passionate hot tub enthusiast and spare parts specialist, I’m thrilled to introduce you to the Balboa BP2100G1 Control Box. This WiFi-ready control system is not just a component; it’s the brain of your hot tub, designed to elevate your relaxation experience to new heights.

Cutting-Edge Features

WiFi Connectivity

The BP2100G1 is built for the modern age. With its WiFi-ready design, you can control your hot tub from anywhere using your smartphone or tablet. Imagine adjusting the temperature or turning on the jets while you’re still at work, ensuring your hot tub is perfect when you arrive home.

M7 Technology

Balboa’s innovative M7 technology simplifies installation and improves reliability. By integrating sensors and flow switches within the control box, it eliminates the need for additional components in your tub, reducing potential points of failure.

Versatile Pump Control

This control box offers exceptional flexibility:

• Support for up to three pumps
• Options for single or dual-speed pumps
• Dedicated circulation pump support

Comprehensive Accessory Management

The BP2100G1 doesn’t stop at pumps. It expertly manages:

• Air blower
• Ozone generator
• LED lighting
• Even a connection point for your entertainment system

Specifications

Feature	Specification
Voltage	230VAC
Frequency	50Hz
Heater	3kW
Pump 1	Single or dual speed
Pump 2	Single or dual speed
Pump 3	Single speed (dual if no blower)
Circulation Pump	Optional
Air Blower	x1
Ozone	x1
Light	x1, 10V @ 1amp Max
Radio/TV/AV	Connection available
WiFi	Compatible with receiver for smartphone operation
Compatible Panels	Balboa TP Series (TP400, TP600, TP800, TP900)
Heater Connections	2-inch socket union sleeves
Component Connections	Amp cables plug directly into PCB
Dimensions	500mm length (with heater), 330mm (box only) x 120mm width x 300mm height
Power Options	1 and 3 phase connections

Documentation

• Welcome Guide
• BP2100G1 Tech Sheet
• Easy Installation Guide
• Wifi Receiver Installation Guide
• App User Guide

Easy Installation and Compatibility

The BP2100G1 is designed for straightforward installation. Its 2-inch socket heater union sleeves and plug-in amp cables make connecting components a breeze. Compatible with Balboa’s popular TP Series topside panels, it integrates seamlessly with your existing setup or new build.

Built for Flexibility

Whether you’re upgrading an existing hot tub or building a custom spa, the BP2100G1 adapts to your needs. Its support for various pump configurations, including a dedicated circulation pump, allows for customized water flow and jet control.

The Power of Control at Your Fingertips

With the addition of a WiFi receiver, you can transform your smartphone into a powerful hot tub remote. Compatible with both Android and iOS devices, you’ll have complete control over your spa experience, whether you’re at home or on the go.

Quality You Can Trust

As an experienced hot tub parts supplier, I’ve seen firsthand the reliability and performance of Balboa products. The BP2100G1 continues this tradition of excellence, offering robust construction and advanced features that stand the test of time.

Important Notes

• This control box is designed for installation by a competent individual or tradesman.
• For setups using 3 pumps and a blower, a splitter cable (SKU: CA-CS893) is required.
• While this is a versatile and powerful unit, proper installation is crucial to ensure optimal performance and longevity.

Upgrade your hot tub experience with the Balboa BP2100G1 Control Box. It’s more than just a component; it’s the key to unlocking the full potential of your spa. With its advanced features and user-friendly design, you’ll wonder how you ever managed without it.

Balboa Spa Touch Mini: Elevate Your Hot Tub Experience

Introduction

As a dedicated hot tub enthusiast and spare parts supplier, I’m excited to introduce you to the Balboa Spa Touch Mini. This cutting-edge topside control panel is designed to transform your spa experience, offering intuitive control and sleek aesthetics that will complement any hot tub setup.

Product Overview

The Balboa Spa Touch Mini is a state-of-the-art touch panel that seamlessly integrates with Balboa BP Series systems. With its high-tech digital display and user-friendly interface, this control panel puts the power of your spa at your fingertips.

Key Features

• Advanced Touch Screen Technology: Navigate your spa settings with ease using the responsive touch screen interface.
• Large, Clear Display: The sizeable screen ensures excellent visibility, even in bright outdoor conditions.
• Component Symbols: Intuitive icons make it simple to understand and adjust your spa’s functions.
• Time Functions: Keep track of your relaxation sessions with built-in time display and management features.
• Error Message Display: Stay informed about your spa’s status with advanced error messaging capabilities.

Technical Specifications

To help you understand the Balboa Spa Touch Mini’s capabilities, I’ve compiled this comprehensive specifications table:

Specification	Detail
Manufacturer	Balboa
Compatible Systems	Balboa BP Series
Power Requirements	12V
Connection Type	4 black plastic pins in a grid formation
Screen Type	Hi-Tec digital large face screen
Hole Dimensions	72mm (L) x 50mm (H)
Screen Dimensions	86mm (L) x 61mm (H)

Installation and Compatibility

The Balboa Spa Touch Mini is designed for seamless integration with existing Balboa BP Series systems. Its compact dimensions make it an ideal replacement or upgrade for many hot tub models. The 4-pin grid connection ensures a straightforward installation process, allowing you to enhance your spa control system with minimal effort.

User Experience

Upon installation, you’ll immediately notice the difference in your spa control experience. The main screen provides crucial information about your spa’s operations at a glance. Adjust temperature, activate jets, or set mood lighting with just a few taps. The intuitive layout means you spend less time fiddling with controls and more time enjoying your hot tub.

Durability and Design

Crafted to withstand the harsh environments often associated with hot tubs, the Balboa Spa Touch Mini is built to last. Its sleek, modern design not only looks great but also resists water splashes and humidity, ensuring longevity and reliable performance.

Why Choose the Balboa Spa Touch Mini?

1. Ease of Use: The touch screen interface simplifies spa control, making it accessible for users of all ages.
2. Enhanced Visibility: The large, clear display ensures you can read and adjust settings even in bright sunlight or low light conditions.
3. Comprehensive Information: From water temperature to jet status, all the information you need is right at your fingertips.
4. Seamless Integration: Designed to work flawlessly with Balboa BP Series systems, ensuring compatibility and optimal performance.

Conclusion

The Balboa Spa Touch Mini represents the perfect blend of functionality and style for your hot tub. By upgrading to this advanced control panel, you’re not just improving your spa’s interface – you’re enhancing your entire relaxation experience.

Remember, a well-maintained hot tub with user-friendly controls can significantly increase your enjoyment and the value of your investment. The Balboa Spa Touch Mini is more than just a control panel; it’s your gateway to countless hours of relaxation and enjoyment in your hot tub oasis.



Hot Tub Wiring – Configuring a Balboa BP7 Spa Control 4.0kW Spa Pack

If you are using a basic setup, and by basic I mean a regular dual speed hot tub pump with a single speed blower, out of the box, your Balboa pack is likely to work without any additional configuration. However, if you are not using a separate circulation pump, the chances are you will need to “configure” the pack using the details below.

On the underside of the Spa Pack covers, you will see a circuit diagram that looks something like this.

Firstly, you need to work through the setup table at the bottom on the left hand side and work out which setup number you need. For example, a 2 speed pump and a single speed blower will need setup #12.

Next, you need to change the DIP switch settings to match your setup. Once you have the right combination of DIP switches, using the topside control you should do the following to change the pack’s setup mode to #12.

To go into the low levels follow the following steps please.

1. Turn tub off.
2. DIP switch 1 move to ON.
3. Turn tub on
4. On the top side control, Press “WARM” twice
5. Press “LIGHT”
6. Press “WARM”
7. Then use “WARM” to move down to the low levels until you get on the set up number you need.
8. Turn off tub
9. DIP switch one back to OFF
10. Turn on tub

Getting the right setup and config is important for the pack to function correctly and the buttons on the top side to do what you expect them to.



Balboa DIP Switches Explained

Most of the Balboa Spa Packs have a set of DIP switches that can seem a little confusing in the setup. In the most basic form, you are telling the Spa Pack how many pumps or blowers you have connected and how many it should allow to run before it turns off the heater (or let them all run at once). The reason for this is if you are limiting the amount of current the pack can draw. You are also telling the pack wither you need additional cool down times if you are using an gas/propane/ASHP additional heater. This to stop the kettling effect you can get in the heaters.

Check the circuit diagram that is on the inside of your Balboa pack and do not just copy the settings I explain below as they may be in a different order. The “logic” behind them is the same so just check what each of the DIP switches says it does.

Fixed-fuction DIP Switches

A1 Test Mode (normally Off).

A2 In “ON” position, add one high-speed pump (or blower) with Heater. (If you have 1 pump and NO blower use this)

A3 In “ON” position, add two high-speed pumps (or 1 HS Pump and Blower) with Heater. (If you have a pump and a blower use this)

A4 In “ON” position, add four high-speed pumps (or 3 HS Pumps and Blower) with Heater. (If you have two or three pumps and a blower use this)

You should only enable one of the A2, A3 or A4. You can use them in combinations, but it is easier just to use one.

A5 In “ON” position, enables Special Amperage Rule B.  In “OFF” position, enables Special Amperage Rule A.

Special Amperage Rule A No Limitation (if you are not sure, set it to this. Worst case, your electric will trip if you don’t have enough current available)

Special Amperage Rule B 2 High Speed Pump Maximum, in Setups 1 – 9 1 High Speed Pump Maximum, and also Blower turns off with 1 High Speed Pump, in Setups 10 – 18 (avoid this if you can)

A6 Persistent memory reset (Used when the spa is powering up to restore factory settings as determined by software configuration).

A2, A3, and A4 work in combination to determine the number of high-speed devices and blowers that can run before the heat is disabled. i.e. A2 and A3 in the ON position and A4 in the OFF position will allow the heater to operate with up to 3 high‑speed pumps (or two HS Pumps and Blower) running at the same time. Heat is disabled when the fourth high-speed pump or blower is turned on.

Note: A2/A3/A4 all off = No heat with any high-speed pump or blower.

Assignable DIP Switches

A7 In “ON” position, enables a 5-minute cooldown for some gas heaters (Cooling Time B). In “OFF” position, enables a 1-minute cooldown for electric heaters (Cooling Time A).



Who are Balboa Water Group?

Balboa Water Group is a prominent manufacturer and supplier of innovative spa and hot tub components. With a rich history spanning several decades, Balboa Water Group has established itself as a leading brand in the industry, known for its cutting-edge technology, quality craftsmanship, and exceptional customer service.

Balboa Water Group specializes in designing and manufacturing spa control systems, which serve as the brains behind the operation of hot tubs and spas. These control systems include a control panel, circuit board, and other components that regulate various functions, such as temperature control, water flow, jet activation, and lighting.

One of the key strengths of Balboa Water Group is their dedication to innovation. They continuously strive to develop new and advanced technologies that enhance the spa experience for users. From user-friendly interfaces and touchscreens to wireless connectivity and smartphone apps, Balboa control systems offer convenient and intuitive control over every aspect of the spa.

Balboa Water Group also places a strong emphasis on safety and energy efficiency. Their control systems often feature built-in safety mechanisms, such as high-limit sensors and automatic shutdowns, to protect users from potential hazards. Additionally, they incorporate energy-saving features that optimize power consumption, helping to reduce operating costs and environmental impact.

In addition to control systems, Balboa Water Group offers a comprehensive range of spa components and accessories. These include pumps, heaters, filters, jets, valves, and more. Their products are known for their durability, reliability, and compatibility with various hot tub models and brands.

Customer satisfaction is a top priority for Balboa Water Group. They provide excellent technical support, troubleshooting assistance, and product documentation to help spa owners and industry professionals make the most of their products. Balboa also collaborates closely with spa manufacturers and distributors worldwide, ensuring that their components are widely available and supported.

Balboa Water Group's commitment to quality and innovation has earned them a stellar reputation within the spa industry. Whether you are a hot tub owner, a spa designer, or a service professional, choosing Balboa products can provide you with the confidence and reliability you need to create a superior spa experience.

Overall, Balboa Water Group is a trusted and respected name in the spa industry, known for its technologically advanced spa components, commitment to customer satisfaction, and ongoing pursuit of innovation. Their products and solutions continue to elevate the spa experience for users around the world.
