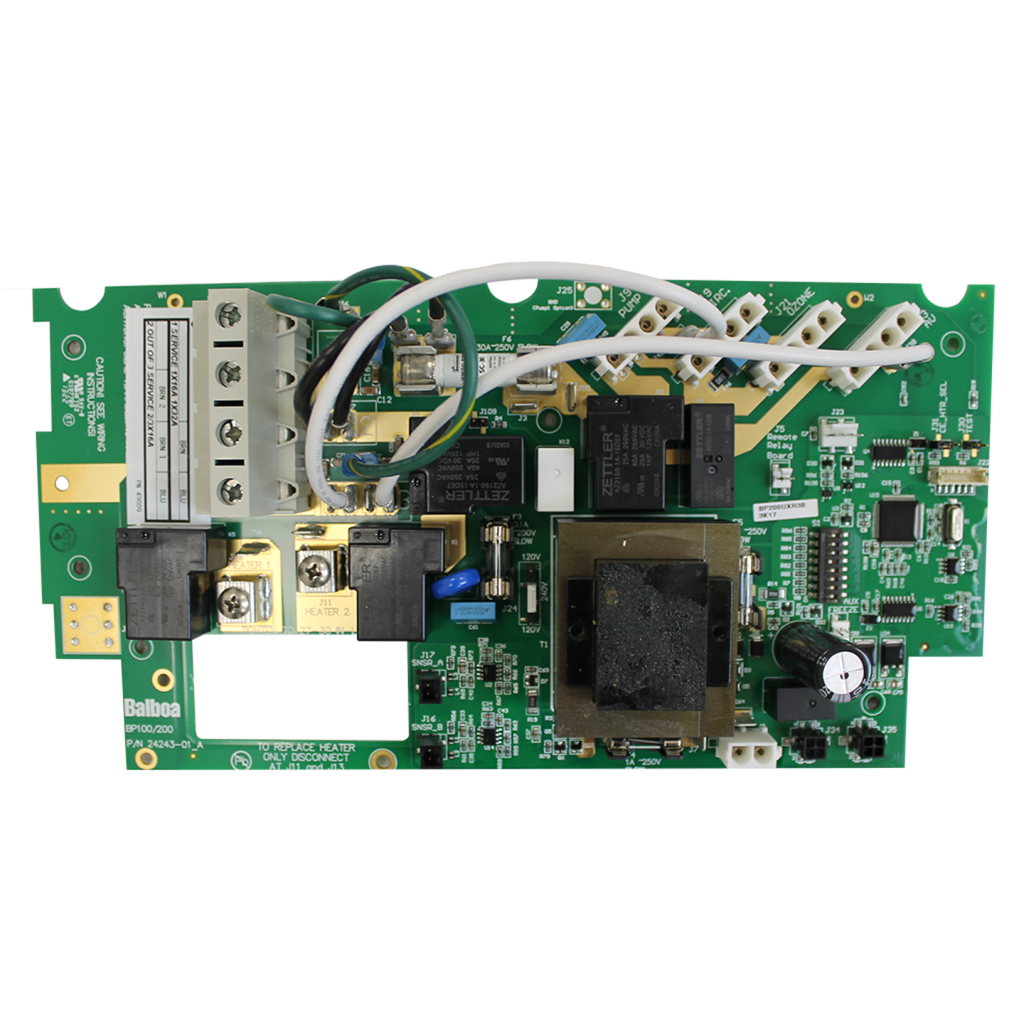

⚡ Balboa BP200UX 2.0KW Spa Circuit Board – European Hot Tub Control System

Precision-engineered replacement PCB for reliable spa control and seamless hot tub performance

💧 Product Overview

The Balboa BP200UX 2.0KW PCB is a professional-grade replacement circuit board designed specifically for European hot tub and spa systems. Manufactured by Balboa Water Group, this entry-level control system delivers dependable performance for smaller hot tubs whilst offering versatile configuration options.

This genuine Balboa PCB features six-layer, laser-etched construction with a durable conformal coating for protection against moisture and environmental factors. The board utilises solid-state relays for efficient power management and supports up to three pumps (with optional expander board), a circulation pump, air blower, ozone generator, and LED lighting.

Compatible with the BP200 control box and the complete TP range of topside panels, this board also supports WiFi integration for smartphone control when paired with a BWA WiFi module. The 2.0kW heater output is ideal for maintaining optimal water temperature in residential hot tubs throughout the UK and Europe.

✨ Key Features

✅ 230V 50Hz European Power – Designed specifically for UK and European electrical systems with single-phase or 2-out-of-3 phase supply options

✅ 2.0kW Heater Output – Integrated heater control with M7 sensor technology eliminating the need for pressure or flow switches

✅ Multi-Pump Support – Controls up to 3 pumps including Pump 1 (12A, single or dual speed), Pump 2 (12A via expander), and dedicated circulation pump (2A)

✅ Six-Layer PCB Construction – Laser-etched board with conformal coating for enhanced durability and protection against moisture

✅ Solid-State Relays – Superior reliability compared to mechanical relays with reduced wear and improved longevity

✅ Full Topside Panel Compatibility – Works with spaTouch 2, spaTouch Icon, TP900, TP800, TP600, TP500, TP400T CE, and TP400W CE panels

✅ WiFi Ready – Compatible with Balboa BWA WiFi module for smartphone control via the ControlMySpa app

✅ Built-In Diagnostics – Comprehensive error code system and fault log for easy troubleshooting

✅ Ozone Generator Support – Dedicated 230VAC ozone output (0.5A max) for enhanced water sanitation

✅ 10VAC Lighting Output – Integrated 1A transformer for powering LED spa lighting

✅ 7 Configurable Setups – Flexible software configurations to match various spa equipment arrangements

✅ CE Certified – Fully compliant with European safety standards for hot tub electrical equipment

🔧 Technical Specifications

Specification	Value
Part Number	59342-01 (2.0kW)
CE System Model	BP2-BP200UX-RCA-2.0KW
Board Type	Main Control PCB
Input Voltage	230VAC
Frequency	50Hz (auto-detects 50/60Hz)
Power Configuration	Single-phase 16A or 32A; 2-out-of-3 phase 2×16A
Heater Output	2.0kW (upgradeable to 3.0kW with J31 jumper)
Pump 1 Output	230VAC, 12A max (single or dual speed)
Pump 2 Output	230VAC, 12A max (requires X-P2151 expander, PN 59233)
Circulation Pump	230VAC, 2A max
Blower Output	230VAC, 4A max (requires X-B expander, PN 59231)
Ozone Output	230VAC, 0.5A max
Light Output	10VAC, 1A max
A/V Output	230VAC, 2A max (always on)
Sensor Type	M7 Temperature Sensors (Sensor A and B)
Temperature Range	10°C to 40°C (adjustable high/low ranges)
Software Version	M100_235 V52.0
Certifications	CE

🔗 Compatibility Guide

Compatible Topside Panels:

Panel Part Number	Panel Name	Version Requirements
spaTouch 2	spaTouch 2 Graphic Panel	Any version (v2.0+ for bba2 functionality)
spaTouch Icon	Icon-Driven spaTouch	Any version (v3.36+ for bba2 functionality)
spaTouch Menued	Menued spaTouch Panel	Any version (v2.8+ for bba integration)
TP900 Series	TP900 Graphic Display	Any version
TP800 Series	TP800 Graphic Display	v3.1+ (v3.13+ for bba, v4.11+ for bba2)
TP600 Series	TP600 LCD Panel	v2.7+ (v2.12+ for bba/bba2 menu control)
TP500 Series	TP500 LCD Panel	Any version
TP400T CE	TP400 Touch Panel (CE)	v2.7+ (v2.12+ for bba/bba2 menu control)
TP400W CE	TP400 Wave Panel (CE)	v2.7+ (v2.12+ for bba/bba2 menu control)

Compatible Control Boxes:

Control Box	Compatibility
BP200 Control Box	✅ Direct fit
BP200G1	✅ Compatible
BP200G2	✅ Compatible
BP200G3	✅ Compatible

Replaces Part Numbers:

OEM Part Number	Description
59342-01	BP200UX 2.0kW 800 Incoloy System
59343-01	BP200UX 2.0kW Main PCBA (board only)

⚠️ Always verify your existing part number before ordering. The replacement PCB must match your current system configuration.

🎛️ Board Functions & Controls

Pump Control:

Output	Function	Rating	Timer
Pump 1	Main jet pump (1 or 2 speed)	12A max	15-minute (30-min low in non-circ setups)
Pump 2	Secondary jets	12A max	15-minute timer
Circ Pump	24hr filtration & heating	2A max	Programmable filtration cycles

Heater Control:

Feature	Specification
Heater Type	Electric element (800 Incoloy)
Max Output	2.0kW at 230VAC
Temperature Range	10°C to 40°C (configurable)
Hi-Limit Protection	Yes (118°F / 47.8°C)
Sensor Technology	M7 (no pressure/flow switches required)
Freeze Protection	44°F threshold, rotating pump activation

Additional Controls:

Function	Capability
Lighting	10VAC, 1A max, 240-minute timer
Ozone	230VAC, 0.5A, slaved to heater pump
Blower	230VAC, 4A max (with expander board)
A/V	230VAC, 2A, always on
WiFi	Compatible with BWA WiFi transceiver

⚙️ Installation Requirements

⚠️ IMPORTANT: Installation must be carried out by a qualified electrician in accordance with BS 7671 (IET Wiring Regulations).

Pre-Installation Checklist:

• [ ] Verify part number 59342-01 matches your existing board
• [ ] Disconnect all power at the consumer unit/breaker
• [ ] Photograph all existing wiring connections
• [ ] Allow capacitors to discharge (wait minimum 5 minutes)
• [ ] Note existing DIP switch positions on S1

Electrical Requirements:

Requirement	Specification
Supply Voltage	230VAC single-phase
Circuit Breaker (16A service)	20A maximum
Circuit Breaker (32A service)	40A maximum
RCD Protection	Required (30mA)
Earth Connection	Mandatory
Conductor Rating	Minimum 90°C rated, copper only

Key Connection Points:

Connector	Function	Notes
TB1	Mains power input	Torque: 27-30 in.lbs
J9	Pump 1	12A max
J19	Circulation pump	2A max
J21	Ozone generator	0.5A max
J15	Spa light	10V, 1A max
J33	A/V stereo	2A max
J11 & J13	Heater	Torque: 30-35 in.lbs
J34 / J35	Main topside panel	Either port

DIP Switch Configuration (S1):

Switch	ON Position	OFF Position
A1	Test Mode ON	Test Mode OFF (normal)
A2	Add 1 HS pump with heat	Don’t add 1 HS pump with heat
A3	Add 2 HS pumps with heat	Don’t add 2 HS pumps with heat
A4	5-min cooldown (gas)	1-min cooldown (electric)
A5	Special amperage rule ON	Special amperage rule OFF
A6	Memory reset	Store settings
A7	Simplified menus	Standard menus
A8	3-phase special rule ON	3-phase special rule OFF

💡 Tip: Label or photograph all connections and DIP switch positions before removing the old board. Copy the DIP switch settings from your original board to the replacement.

⚠️ Safety Warnings

Electrical Safety:

• ⚠️ ALWAYS disconnect power at the consumer unit before any work
• ⚠️ Installation by qualified Part P registered electrician only
• ⚠️ Ensure correct 230V supply (not 110V)
• ⚠️ Verify RCD protection is installed and functioning
• ⚠️ Never operate spa with covers removed from electrical components
• ⚠️ Use copper conductors only, minimum 90°C rating

Water & Electrical Safety:

• ⚠️ Ensure no water ingress into control box
• ⚠️ Check all seals and gaskets during installation
• ⚠️ Never touch electrical components with wet hands
• ⚠️ Ensure adequate ventilation around control box

Post-Installation:

• ⚠️ Test all safety features before allowing spa use
• ⚠️ Verify hi-limit sensor function (118°F / 47.8°C trip)
• ⚠️ Check for error codes on initial startup
• ⚠️ Prime pumps before enabling heating
• ⚠️ Verify freeze protection is operational

🔍 Error Codes & Troubleshooting

Common Error Codes:

Code	Meaning	Solution
— or –F, –C	Water temperature unknown	Normal during startup; pump must run to read temperature
Pr	Priming Mode	Press temperature button to exit after priming pumps
OH	Overheat (110°F/43.3°C detected)	Do not enter water; system resets when below 108°F
OHH	Heater too hot (118°F/47.8°C)	Press any button to reset when water below 108°F
dr or dry	Heater may be dry	Check water flow; spa shut down for 15 minutes
FLO	Low flow detected	Check filter, valves, and pump operation
No COM	Communication error	Check topside panel connection
SnA or SnS	Sensor error	Check temperature sensor connections
CFE	Configuration error	Contact dealer or service organisation

Reminder Messages:

Code	Meaning	Default Interval
FLT1	Filter cycle 1 active	N/A
rtg	Test GFCI reminder	30 days
rFL	Clean filter reminder	30 days
rdr	Drain water reminder	100 days
rcF	Change filter reminder	365 days

Diagnostic Indicators:

LED/Display	Status	Meaning
Temperature + “T”	Test Mode	DIP switch A1 is ON
Jets LED	Illuminated	Pump is running
Heat LED	Illuminated	Heater is active

🏊 Ideal Applications

Application	Suitability	Notes
♨️ Residential hot tubs	✅ Direct replacement	Perfect for 2-4 person spas
♨️ Entry-level spa systems	✅ Designed for	Balboa’s entry-level European control
♨️ Hot tubs with circulation pump	✅ Fully supported	Setups 1, 3, 5, 7
♨️ Spas without circulation pump	✅ Fully supported	Setups 2, 4, 6
♨️ Spas with WiFi control	✅ Compatible	Requires BWA WiFi module

This board is designed for:

• Replacing faulty original BP200 series circuit boards
• Upgrading BP200G1, G2, or G3 systems to the unified BP200UX platform
• Restoring full spa functionality after PCB failure
• Spas requiring 2.0kW heater capacity

Note: If upgrading from a 3.0kW system, you may use this board by adjusting jumper J31 (refer to installation manual).

❓ Frequently Asked Questions

Q: How do I know if this board fits my spa? A: Check your existing board for part number 59342-01 or 59343-01. This board fits all BP200 series control boxes. Verify your system uses 230V 50Hz power supply.

Q: Is this an OEM or aftermarket board? A: This is a genuine OEM Balboa circuit board manufactured by Balboa Water Group, not an aftermarket or third-party replacement.

Q: Do I need a qualified electrician to install this? A: Yes. UK Building Regulations (Part P) require a qualified, competent person to carry out electrical work on hot tubs. This ensures safety and compliance with BS 7671.

Q: Will my existing topside panel work with this board? A: Yes, this board is compatible with all TP-series panels including TP400, TP500, TP600, TP800, TP900, and all spaTouch variants. Check the version requirements in the compatibility table above.

Q: What warranty is included? A: Contact Parts4Tubs for current warranty terms. Warranty is subject to correct installation by a qualified electrician.

Q: What if I have error codes after installation? A: Most startup errors are temporary. Allow the system to complete priming mode. Persistent errors may indicate wiring issues or sensor problems. Refer to the troubleshooting section or contact Parts4Tubs technical support.

Q: Can I upgrade from 2.0kW to 3.0kW heater? A: The board supports both 2.0kW and 3.0kW heaters. To use a 3.0kW heater, jumper J31 must be positioned on 2 pins instead of 1 pin. You will also need the appropriate 3.0kW heater element.

Q: What is the difference between BP200G1, G2, G3, and BP200UX? A: The BP200UX is Balboa’s unified replacement that combines all three previous generations (G1, G2, G3) into one configurable model. It can replace any BP200 series board with the correct setup configuration.

🏆 Why Choose the Balboa BP200UX 2.0KW PCB

✅ Genuine OEM Quality – Manufactured by Balboa Water Group with original factory specifications

✅ Universal Replacement – Single board replaces BP200G1, G2, and G3 generations

✅ Advanced Technology – Six-layer laser-etched construction with conformal coating

✅ M7 Sensor System – Eliminates unreliable pressure and flow switches

✅ Full CE Certification – Compliant with European electrical safety standards

✅ WiFi Ready – Future-proof with BWA app compatibility for smartphone control

✅ Comprehensive Support – Backed by Balboa’s extensive technical documentation

✅ Flexible Configuration – 7 software setups to match any spa equipment arrangement

🤝 Why Buy From Parts4Tubs

✅ UK-Based Company – Local support from genuine spa specialists

✅ Fast UK Delivery – Quick dispatch to get your spa running again

✅ Expert Technical Advice – Knowledgeable staff who understand Balboa systems

✅ Competitive Pricing – Great value on genuine OEM parts

✅ Full Warranty Support – Comprehensive coverage on all products

✅ Easy Returns – Hassle-free returns within 30 days

✅ Complete Parts Range – Sensors, heaters, topside panels, and accessories available

✅ Identification Assistance – Help finding the correct replacement board

✨ Summary

The Balboa BP200UX 2.0KW PCB is a genuine OEM replacement circuit board designed for European hot tub systems requiring reliable, entry-level control. With 230V 50Hz operation, support for multiple pumps and accessories, and compatibility with all TP-series topside panels, this board restores full functionality to your spa. Featuring Balboa’s M7 sensor technology, WiFi readiness, and comprehensive safety features including freeze protection and hi-limit shutdown, the BP200UX delivers dependable performance for years of relaxation. Order today from Parts4Tubs for fast UK delivery and expert support.
