🎛️ Balboa AX10-A1 Auxiliary Control Panel – Remote Jet Control for Larger Spas
✨ Single-button auxiliary panel for Jets 1 control from a secondary location – the current replacement for all AX10-A1 models
📋 Product Overview
The Balboa AX10-A1 Auxiliary Control Panel (TS-AX111) is the current production model for remote jet control in larger hot tubs and spas. This compact single-button panel allows users to activate Jets 1 from a secondary location away from the main topside controls, providing convenient access to jet pump control without needing to reach the main control panel.

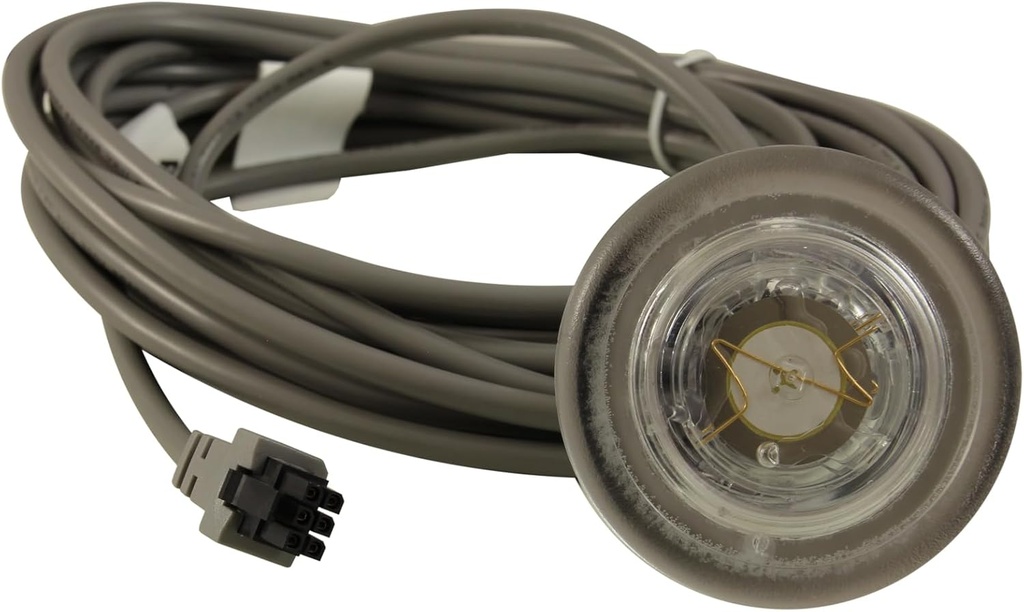

Featuring a circular design with 54 mm diameter, the AX10-A1 fits into a standard 32 mm hole and comes with an impressive 5-metre cable length, allowing flexible installation at various positions around the spa. Operating at 12V, this panel connects via a 6-pin connector (2 rows of 3 pins) to the spa pack’s auxiliary port.
This model (TS-AX111) uses the current Balboa reference G8911 and replaces previous AX10-A1 topsides including part numbers 52683 and 52803. Please note that the overlay is not included with this model and must be purchased separately.
⭐ Key Features
- ✅ Current Production Model – Balboa reference G8911
- ✅ Single Button Control – Dedicated Jets 1 activation
- ✅ 5-Metre Cable – Long reach for flexible positioning
- ✅ Compact Circular Design – 54 mm diameter
- ✅ Standard Hole Size – Fits 32 mm cutout
- ✅ Remote Installation – Control jets away from main topside
- ✅ 12V Operation – Safe low voltage design
- ✅ 6-Pin Connection – 2 rows of 3 pins connector
- ✅ Replaces Previous Models – Direct replacement for 52683, 52803
- ✅ Ideal for Larger Spas – Perfect for swim spas and large hot tubs
⚠️ Important: Overlay NOT included – must be purchased separately.
🔧 Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Balboa |
| Model | AX10-A1 |
| Model Series | AX |
| Product Type | Auxiliary Panel |
| SKU | TS-AX111 |
| Balboa Reference | G8911 |
| Replaces Part Numbers | 52683, 52803 |
| Number of Buttons | 1 |
| Button Function | Jets 1 |
| Cable Length | 5 m |
| Panel Diameter | 54 mm |
| Fits Hole Size | 32 mm |
| Operating Voltage | 12V |
| Connection Type | 6 Small Plastic Pins (2 Rows of 3) |
| Maximum Pumps Controlled | 1 |
| Blower/Auxiliary Outputs | 0 |
| Overlay Included | ❌ No – Sold Separately |
| Status | ✅ ACTIVE |
🔄 Replacement Information
This Model Replaces:
| Old Part Number | Old SKU | Status |
|---|---|---|
| 52683 | – | ⚠️ Discontinued |
| 52803 | – | ⚠️ Discontinued |
| AX10-A1 (with overlay) | TS-AX101 | ⚠️ Discontinued |
Current Model:
| New Balboa Ref | New SKU | Status |
|---|---|---|
| G8911 | TS-AX111 | ✅ ACTIVE |
If you have an existing AX10-A1 with part number 52683 or 52803, the TS-AX111 is the correct replacement. Remember to purchase an overlay separately if required.
🔘 Button Function
Single Button Operation:
| Button | Function |
|---|---|
| JETS 1 | Activate/deactivate jet pump 1 |
Operating Notes:
- Press once to activate Jets 1
- Press again to cycle through speed settings (if multi-speed pump)
- Press again to deactivate
- Behaviour depends on spa pack configuration
🔗 Purpose & Application
What is an Auxiliary Panel?
Unlike main topside control panels that provide full spa control (temperature, all pumps, lights, modes), auxiliary panels are secondary controls designed to operate specific functions from remote locations around the spa.
Why Use an AX10-A1?
| Scenario | Benefit |
|---|---|
| Large hot tubs | Control jets from opposite end to main topside |
| Swim spas | Activate jets from swimming area |
| Lounger positions | Easy jet control while reclined |
| Party/social use | Multiple control points for guests |
Typical Installation Locations:
- Opposite end of spa from main topside
- Near lounger seating positions
- At swim spa swimming end
- Secondary user positions in large spas
⚙️ Installation Guide
Before Installation:
- ⚠️ Disconnect power to spa at the isolator/breaker before any work
- ⚠️ Verify your spa pack has an auxiliary panel port
- ⚠️ Plan cable routing (5 m available length)
- ⚠️ Prepare 32 mm hole at desired location
- ⚠️ Purchase overlay separately if required
Installation Steps:
- Turn off power at the isolator/breaker
- Drill or prepare 32 mm hole at desired auxiliary control location
- Route the 5 m cable from installation point to spa pack
- Connect the 6-pin connector to the spa pack’s auxiliary port
- Mount the AX10-A1 panel in the 32 mm hole
- Apply overlay (purchased separately)
- Secure panel and ensure watertight seal
- Restore power and test Jets 1 function
Mounting Information:
| Specification | Detail |
|---|---|
| Panel Diameter | 54 mm |
| Required Hole Size | 32 mm |
| Cable Length | 5 m |
| Connection | 6 small plastic pins (2 rows of 3) |
| Mounting Type | Push-fit into hole |
⚠️ Professional installation recommended for drilling into spa shell and ensuring watertight sealing.
⚡ Wiring & Connection
Connector Information:
| Specification | Detail |
|---|---|
| Connector Type | 6 Small Plastic Pins |
| Pin Configuration | 2 Rows of 3 Pins |
| Cable Length | 5 metres |
| Operating Voltage | 12V |
Connection Location:
The AX10-A1 connects to the auxiliary panel port on compatible Balboa spa packs. Refer to your spa pack documentation for the specific auxiliary port location.
⚠️ Never force the connector. The 6-pin auxiliary connector is different from the 8-pin main topside connector. Ensure you connect to the correct port.
🔍 Troubleshooting
Common Issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Button not responding | No power or loose connection | Check power and reseat 6-pin connector |
| Jets don’t activate | Pump issue or configuration | Check pump connections at spa pack |
| Intermittent operation | Cable damage or poor connection | Inspect cable and connectors |
| Panel loose in hole | Incorrect hole size or worn mounting | Check 32 mm hole size, replace if damaged |
Important Notes:
- The AX10-A1 only controls Jets 1 – it cannot control other functions
- Jets 1 behaviour depends on your spa pack configuration
- If Jets 1 doesn’t work from the AX10-A1 but works from main topside, check auxiliary port connection
🧹 Maintenance & Care
Routine Care:
| Task | Frequency |
|---|---|
| Wipe with soft damp cloth | Weekly |
| Check button response | Monthly |
| Inspect cable condition | Annually |
| Check watertight seal | Annually |
| Check overlay condition | Annually |
DO NOT:
- ❌ Use abrasive cleaners
- ❌ Pull or stress the cable
- ❌ Submerge cable connections
- ❌ Force button operation
🎯 Ideal Applications
| Application | Suitability |
|---|---|
| ♨️ Large hot tubs (6+ person) | ✅ Ideal |
| 🏊 Swim spas | ✅ Ideal |
| ♨️ Party/entertainment spas | ✅ Ideal |
| 🔄 Replacement for 52683, 52803, TS-AX101 | ✅ Direct replacement |
| ♨️ Small 2-4 person spas | ❌ Usually unnecessary |
Common Replacement Scenarios:
- 💔 Non-responsive button
- 🔌 Damaged cable
- 💧 Water ingress damage
- 🔘 Worn panel (old 52683/52803 models)
❓ Frequently Asked Questions
Q: What is an auxiliary panel and how is it different from a main topside?
A: An auxiliary panel is a secondary control that provides remote access to specific spa functions (in this case Jets 1) from a location away from the main topside controls. It supplements rather than replaces the main topside.
Q: Can this panel control temperature or lights?
A: No, the AX10-A1 only controls Jets 1. For full spa control including temperature, lights, and all pumps, you need the main topside control panel.
Q: I have an old AX10-A1 (52683 or 52803) – is this the correct replacement?
A: Yes, the TS-AX111 (Balboa reference G8911) is the current production model that replaces all previous AX10-A1 variants including part numbers 52683 and 52803.
Q: Is the overlay included?
A: No, the overlay is NOT included with the TS-AX111 and must be purchased separately. This differs from the older discontinued TS-AX101 which included the overlay.
Q: What spa packs is this compatible with?
A: The AX10-A1 is compatible with Balboa spa packs that have an auxiliary panel port. Check your spa pack documentation or contact Parts4Tubs for compatibility confirmation.
Q: Is the 5-metre cable long enough?
A: For most installations, 5 metres provides adequate reach from the auxiliary port to a remote location on the spa. Measure your specific requirement before ordering.
Q: What size hole do I need to drill?
A: The AX10-A1 requires a 32 mm diameter hole. The panel itself is 54 mm in diameter (the flange that sits on top of the spa shell).
Q: What is the Balboa reference number?
A: The current Balboa reference for this model is G8911.
🏆 Why Choose the Balboa AX10-A1 (TS-AX111)
- ✅ Current Production Model – Balboa reference G8911
- ✅ Genuine Balboa Quality – Manufactured to Balboa’s standards
- ✅ Direct Replacement – For 52683, 52803, and TS-AX101
- ✅ Single Button Simplicity – Dedicated Jets 1 control
- ✅ 5-Metre Cable – Generous length for flexible installation
- ✅ Compact Design – 54 mm diameter, fits 32 mm hole
- ✅ 12V Safety – Safe low voltage operation
- ✅ Currently Available – Active product in stock
🤝 Why Buy from Parts4Tubs
- ✅ UK-based company with local support
- ✅ Fast UK delivery
- ✅ Expert advice from spa specialists
- ✅ Auxiliary panel compatibility assistance
- ✅ Overlays available separately
- ✅ Full warranty support
- ✅ Easy returns within 30 days
✨ Summary
The Balboa AX10-A1 Auxiliary Control Panel (TS-AX111, Balboa reference G8911) is the current production model for remote Jets 1 control in larger hot tubs and swim spas. This panel replaces previous models 52683, 52803, and TS-AX101. Featuring a compact 54 mm diameter circular design that fits a 32 mm hole, with 5-metre cable length and 12V operation via 6-pin connector (2 rows of 3). Overlay NOT included – purchase separately. Order from Parts4Tubs for fast UK delivery and expert support.
