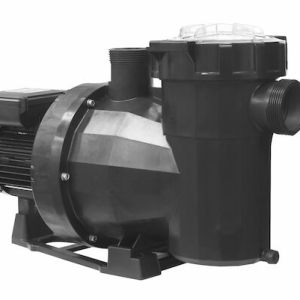

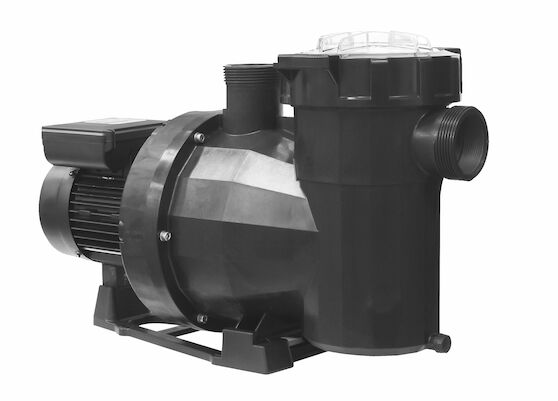

Astral Pool Victoria Plus New Generation 2HP Three Phase Swimming Pool Pump

💧 European-engineered excellence delivering powerful, whisper-quiet circulation for large residential and semi-commercial pools

📋 Product Overview

The Astral Pool Victoria Plus New Generation 2HP Three Phase represents the pinnacle of European pump engineering, specifically designed for demanding large residential and semi-commercial swimming pool applications. This self-priming centrifugal pump combines exceptional hydraulic efficiency with robust three-phase motor technology to deliver reliable, powerful water circulation year after year.

Manufactured by Fluidra’s AstralPool division—one of Europe’s leading pool equipment manufacturers—this pump benefits from over 30 years of expertise in hydraulic design and engineering. With more than 500 R&D tests conducted annually and 100% factory testing under ISO 9001 certification, every Victoria Plus pump is engineered to withstand the harshest operating conditions while maintaining peak performance.

The pump’s enhanced hydraulic design delivers flow rates up to 28 m³/h, making it ideal for pools requiring high-capacity filtration, solar heating circuits, spa systems, and water features. Its backward compatibility with older Astral pump models makes it the perfect drop-in replacement for upgrading existing installations, while its reinforced construction and IP55-rated motor ensure decades of trouble-free operation.

Designed for professionals and discerning pool owners who demand nothing but the best.

⭐ Key Features

✅ 2 Horsepower Three-Phase Motor – Professional-grade 1.5kW motor (400V) delivers consistent power with superior energy efficiency compared to single-phase alternatives, ideal for commercial and large residential applications

✅ High-Capacity Flow Rate – Achieves 26-28 m³/h flow rate at 10 meters head, ensuring rapid turnover for pools up to 140 cubic meters (approximately 30,000 gallons)

✅ Self-Priming Up to 2 Meters – Powerful dry suction capability eliminates the need for pump placement below water level, providing flexible installation options and faster startup

✅ Large 5-Litre Pre-Filter Basket – Generous debris collection capacity reduces maintenance frequency and protects pump impeller from damage, extending service life significantly

✅ Ultra-Quiet Operation – Advanced hydraulic design and anti-vibration mounting base achieve noise levels of just 65-74 dBA, quieter than normal conversation

✅ IP55 Motor Protection – Fully protected against dust ingress and water jets from any direction, with Class F insulation rated for temperatures up to 155°C for exceptional durability

✅ AISI 316 Stainless Steel Shaft – Marine-grade shaft material provides superior corrosion resistance for saltwater pools, chlorinated environments, and coastal installations

✅ Reinforced Thermoplastic Construction – Advanced engineering polymers resist chemical attack, UV degradation, and physical stress far better than traditional materials

✅ Backward Compatible Design – Direct drop-in replacement for older Victoria and Sprint models with identical mounting footprint and 2″ BSP connections

✅ European Manufacturing Quality – Designed, tested, and manufactured in Europe under strict ISO 9001 standards with up to 5-year warranty coverage

🔧 Technical Specifications

Specification	Details
Motor Power	2 HP (1.5 kW)
Voltage	400V Three Phase
Frequency	50 Hz
Motor Speed	2900-3000 RPM
Flow Rate (Nominal)	26 m³/h
Maximum Flow Rate	28 m³/h @ 4m head
Maximum Head	18 meters
Nominal Head	10 meters
Self-Priming Capacity	Up to 2 meters above water level
Pre-Filter Basket	5 litres capacity
Connections	2″ BSP threaded (D63 pipe compatible)
Noise Level	65-74 dBA
Motor Protection	IP55 with Class F insulation
Maximum Absorbed Power	1.80 kW
Shaft Material	AISI 316 stainless steel
Mechanical Seal	Carbon/ceramic/NBR composite
Housing Material	Reinforced thermoplastic
Weight	Approximately 18 kg
Dimensions (L×W×H)	615mm × 246mm × 356mm
Maximum Water Temperature	35°C
Suitable Pool Volume	Up to 140 m³ (30,000+ gallons)
Warranty	3 years standard + 2 years extended*

*Extended warranty requires product registration

💰 Usage Costs & Running Expenses

📊 Annual Running Cost Calculation

Understanding the true cost of operating your pool pump is essential for budgeting and comparison shopping. Here’s the complete breakdown for the Victoria Plus 2HP Three Phase:

Power Consumption Analysis:

• Motor Power: 1.5 kW (nominal)
• Maximum Absorbed Power: 1.80 kW
• Typical Operating Load: ~1.65 kW (accounting for hydraulic efficiency)

Seasonal Usage Scenario (6-Month Pool Season):

• Daily Runtime: 8 hours
• Operating Days: 180 days (May-October)
• Annual Operating Hours: 1,440 hours
• UK Energy Rate: £0.24 per kWh (average 2024 rate)

✅ Annual Running Cost: 1.65 kW × 1,440 hours × £0.24 = £570

Year-Round Usage Scenario (Indoor/Heated Pools):

• Daily Runtime: 6 hours
• Operating Days: 365 days
• Annual Operating Hours: 2,190 hours
• UK Energy Rate: £0.24 per kWh

✅ Annual Running Cost: 1.65 kW × 2,190 hours × £0.24 = £867

💷 Three-Phase vs Single-Phase Cost Comparison

One of the most significant advantages of three-phase motors is their superior energy efficiency compared to equivalent single-phase motors.

Three-Phase Efficiency Advantage:

• Three-phase motors: 85-90% efficient
• Single-phase motors: 75-82% efficient
• Efficiency improvement: 8-12% energy savings

Annual Savings Comparison: Comparing the Victoria Plus 2HP Three Phase against an equivalent 2HP single-phase pump:

❌ Single-Phase Pump Annual Cost (6-month season):

• Power consumption: ~1.85 kW (lower efficiency)
• Annual cost: 1.85 kW × 1,440 hours × £0.24 = £639

✅ Three-Phase Victoria Plus Annual Cost:

• Power consumption: 1.65 kW (higher efficiency)
• Annual cost: £570

💰 Annual Savings: £69 per year ⏱ 5-Year Savings: £345 📈 10-Year Savings: £690

💸 Comparison vs Older Pump Models

Upgrading from an older, less efficient pump model delivers substantial long-term savings:

Scenario: Replacing 15-Year-Old 2HP Pump

❌ Old Pump (Typical 2005-2010 Model):

• Power consumption: ~2.2 kW (outdated motor technology)
• Annual cost (6 months): 2.2 × 1,440 × £0.24 = £760

✅ New Victoria Plus 2HP Three Phase:

• Power consumption: 1.65 kW (modern efficient design)
• Annual cost (6 months): £570

💵 Annual Savings: £190 💷 5-Year Savings: £950 📊 10-Year Savings: £1,900

ROI Calculation: With typical pricing around £600-700 for the Victoria Plus, and annual savings of £190, the payback period is approximately 3.2-3.7 years, after which you’re saving money every single season.

⚡ Energy Efficiency Benefits

The Victoria Plus achieves its exceptional efficiency through:

• Advanced hydraulic impeller design reducing turbulence
• Optimised motor winding configuration
• Reduced bearing friction through precision manufacturing
• Three-phase balanced load distribution
• High-quality capacitor components

These design elements combine to deliver more water movement per watt consumed—the true measure of pump efficiency.

🎯 Real World Examples & Applications

🏊‍♂️ Large Residential Swimming Pools

The Victoria Plus 2HP excels in large domestic installations where powerful circulation is essential:

• Pool Size: 10m × 5m × 1.8m average depth (90 m³ / 20,000 gallons)
• Application: Complete turnover in 3.5 hours at full flow
• Benefits: Crystal-clear water with 2-3 turnovers per day, excellent chemical distribution, efficient solar heating circulation
• Installation Context: Typically paired with sand filters (24″-30″ diameter) and saltwater chlorination systems

🌊 Commercial Pool & Leisure Facilities

Semi-commercial applications where reliability and power are non-negotiable:

• Pool Size: Hotel pools, small leisure center pools (up to 140 m³)
• Application: Continuous high-volume filtration with extended daily runtime
• Benefits: Three-phase power delivery ensures consistent performance during peak usage hours, reduced maintenance downtime, IP55 protection withstands humid commercial environments
• Performance Expectations: 16+ hours daily operation capability, suitable for pools with 100+ daily users

🛁 Spa & Hydrotherapy Installations

High-pressure requirements for spa jets and therapeutic water features:

• Application: Dedicated spa circulation separate from main pool, hydrotherapy jet systems
• Benefits: Delivers sufficient pressure for multiple spa jets simultaneously (18m maximum head), quiet operation preserves relaxation ambience
• Typical Setup: Often installed with bypass filtration for continuous water quality while maintaining jet pressure

☀️ Solar Heating Systems

Efficient pumping for renewable pool heating:

• Application: Circulating pool water through rooftop solar collector arrays
• Benefits: High flow rate (26-28 m³/h) maximizes heat transfer efficiency, self-priming capability handles air pockets in solar panels, three-phase efficiency reduces the cost of renewable heating
• Installation Context: Typically requires 15-20 solar panels for 80-100 m³ pools, pump handles additional head pressure from rooftop elevation

🏢 Replacement & Upgrade Projects

Perfect drop-in replacement for aging infrastructure:

• Application: Upgrading from older Victoria, Victoria Plus, or Sprint models from 2000-2015
• Benefits: Identical mounting footprint eliminates costly plumbing modifications, modern efficiency cuts energy bills by 20-30%, extended warranty protects long-term investment
• Typical Scenarios: Holiday parks refreshing pool infrastructure, hotels upgrading to reduce operating costs, residential pools where original pump has reached end of life (10-15 years)

🔄 Multi-Pump Installations

Commercial setups requiring redundancy and flexibility:

• Application: Dual-pump systems with automatic switchover, separate filtration and spa circuits
• Benefits: Three-phase motors handle frequent starting cycles better than single-phase, parallel operation possible for extremely large pools (200+ m³), one pump can handle full load if backup pump fails
• Maintenance Considerations: Alternating pumps weekly extends lifespan of both units, easier to schedule maintenance without complete pool shutdown

💡 Cost Savings Examples

📍 Scenario 1: Hotel Pool Upgrade

Situation: 25-meter hotel pool (120 m³) replacing two aging 1.5HP single-phase pumps with a single Victoria Plus 2HP three-phase

Before:

• ❌ 2× 1.5HP single-phase pumps
• ❌ Combined consumption: ~3.0 kW
• ❌ Annual runtime: 3,650 hours (10 hours daily, year-round)
• ❌ Annual cost: 3.0 × 3,650 × £0.24 = £2,628
• ❌ Frequent motor failures due to continuous duty

After:

• ✅ 1× Victoria Plus 2HP three-phase
• ✅ Consumption: 1.65 kW
• ✅ Annual runtime: 3,650 hours
• ✅ Annual cost: 1.65 × 3,650 × £0.24 = £1,445
• ✅ Superior reliability, single pump handles full load

Results:

• 💰 Annual Savings: £1,183
• 📈 3-Year Savings: £3,549
• ⏱ Payback Period: ~7 months
• 💡 Additional Benefits: Reduced maintenance costs, fewer spare parts inventory, simplified control system

📍 Scenario 2: Coastal Property with Saltwater Pool

Situation: Beachfront property with 100 m³ saltwater pool, replacing corroded 2HP single-phase pump after 6 years

Before:

• ❌ Standard 2HP single-phase (non-stainless components)
• ❌ Lifespan: 6 years before corrosion failure
• ❌ Replacement cost every 6 years: £500
• ❌ Annual energy: 1.85 kW × 1,440 hours × £0.24 = £639

After:

• ✅ Victoria Plus with AISI 316 stainless shaft
• ✅ Expected lifespan: 15+ years in saltwater
• ✅ Annual energy: 1.65 kW × 1,440 hours × £0.24 = £570
• ✅ Corrosion-resistant construction

15-Year Cost Comparison:

• ❌ Old Pump: (£639 × 15) + (£500 × 2 replacements) = £10,585
• ✅ Victoria Plus: (£570 × 15) + £650 initial = £9,200

Results:

• 💷 15-Year Savings: £1,385
• 🔄 Fewer replacements: 1 pump vs 3 pumps over 15 years
• ⚡ Annual energy savings: £69
• 🏆 Peace of mind with superior corrosion protection

📍 Scenario 3: Pool with Solar Heating Conversion

Situation: Converting 90 m³ pool from gas heating to solar, requiring efficient high-flow pump

Previous Setup:

• ❌ Old 1.5HP pump insufficient for solar panels
• ❌ Had to add second booster pump for solar: £400
• ❌ Combined power: 2.4 kW for dual pump system
• ❌ Annual cost (solar season): 2.4 × 1,440 × £0.24 = £829

New Setup with Victoria Plus:

• ✅ Single Victoria Plus 2HP handles both filtration and solar
• ✅ 28 m³/h flow optimizes heat transfer efficiency
• ✅ Power consumption: 1.65 kW
• ✅ Annual cost: £570

Results:

• 💸 Annual Savings: £259
• 📊 3-Year Savings: £777
• ☀️ Better solar performance: 15% more heat captured due to higher flow rate
• 🔧 Simplified system: One pump instead of two reduces maintenance and control complexity

📍 Scenario 4: Holiday Park Pool Refurbishment

Situation: Holiday park with 130 m³ pool operating 8 months per year, upgrading from 2008 model pump

Before:

• ❌ 2008 Victoria Plus 2HP (original generation)
• ❌ Power consumption: 2.0 kW (older motor technology)
• ❌ Runtime: 8 hours × 240 days = 1,920 hours
• ❌ Annual cost: 2.0 × 1,920 × £0.24 = £922
• ❌ Requires parts annually: £80 average

After:

• ✅ Victoria Plus New Generation
• ✅ Power consumption: 1.65 kW
• ✅ Runtime: 1,920 hours
• ✅ Annual cost: 1.65 × 1,920 × £0.24 = £760
• ✅ Improved reliability: £40 average parts annually

Results:

• 💰 Energy Savings: £162 per year
• 🔧 Maintenance Savings: £40 per year
• 💵 Total Annual Savings: £202
• 📈 5-Year Total Savings: £1,010
• ⏱ Payback: Approximately 3.3 years

📥 Downloads & Resources

Comprehensive technical documentation to support installation, operation, and maintenance:

📄 Installation Manual – English
Complete installation, safety, and maintenance instructions including hydraulic connection diagrams, electrical wiring specifications, and troubleshooting guides (PDF, 1.2MB)

📄 Installation Manual – Multiple Languages
Installation and operation manual in Romanian and other European languages (PDF, 850KB)

📄 Quick Start Guide – Victoria Plus Silent
Multi-language quick reference guide with safety warnings, zone diagrams, and basic operation instructions in 20+ languages (PDF, 2.1MB)

📄 Astral Pool Pumps Product Leaflet
Complete range overview featuring performance comparisons, technical features, warranty information, and pump selection guidance for the entire Victoria Plus family (PDF, 3.4MB)

Additional Resources:

• Full manuals available at: www.astralpoolmanuals.com
• Technical support and product registration
• CAD drawings available upon request
• Spare parts diagrams and exploded views

🏆 Why Choose the Victoria Plus 2HP Three Phase

✅ European Engineering Excellence – Designed and manufactured in Europe under ISO 9001 quality standards with over 30 years of hydraulic expertise from one of the industry’s leading pump manufacturers

✅ Superior Energy Efficiency – Three-phase motor technology delivers 8-12% lower energy consumption compared to equivalent single-phase pumps, saving hundreds of pounds annually while reducing environmental impact

✅ Built for Longevity – AISI 316 stainless steel shaft, reinforced thermoplastic housing, and IP55-rated motor withstand harsh saltwater, chemical, and coastal environments for 15+ years of reliable service

✅ Commercial-Grade Performance – Delivers professional-level 26-28 m³/h flow rates and 18m maximum head pressure suitable for demanding applications from large residential pools to semi-commercial installations

✅ Hassle-Free Replacement – Backward compatible with older Victoria and Sprint models with identical footprint and connections—no plumbing modifications required, saving installation time and costs

✅ Whisper-Quiet Operation – Advanced hydraulic design and anti-vibration base achieve just 65-74 dBA noise levels, quieter than normal conversation, preserving the peaceful poolside environment

✅ Industry-Leading Warranty – Comprehensive 3-year standard warranty plus 2-year extension available with product registration, demonstrating manufacturer confidence in long-term durability

✅ Proven Reliability – Every pump undergoes 100% factory testing under extreme conditions before delivery; trusted by hotels, leisure facilities, and professional pool companies worldwide

✨ Summary

The Astral Pool Victoria Plus New Generation 2HP Three Phase swimming pool pump represents the optimal choice for discerning pool owners and professionals who demand uncompromising performance, exceptional efficiency, and decades-long reliability. With European engineering heritage, modern three-phase motor efficiency, and corrosion-resistant construction, this pump delivers powerful 26-28 m³/h circulation while consuming less energy than older single-phase alternatives—saving up to £190 annually compared to legacy models.

Whether you’re upgrading aging pool infrastructure, building a new large residential pool, or specifying equipment for commercial installations, the Victoria Plus combines professional-grade performance with residential-friendly quiet operation and hassle-free maintenance. Backed by up to 5 years warranty coverage and manufactured by Fluidra’s AstralPool division—one of Europe’s most respected pool equipment brands—this pump is the long-term investment that pays for itself through reduced energy costs, minimal maintenance requirements, and proven durability in even the most challenging saltwater and chemical environments.

Transform your pool’s circulation system with the power, efficiency, and reliability that only European engineering excellence can deliver.
