Plastica Argonaut AV200-2DN-S Swimming Pool Pump – 1.5HP / 1.1kW Single Phase

💧 Professional-Grade Circulation Power for Large Pools and Commercial Installations

📋 Product Overview

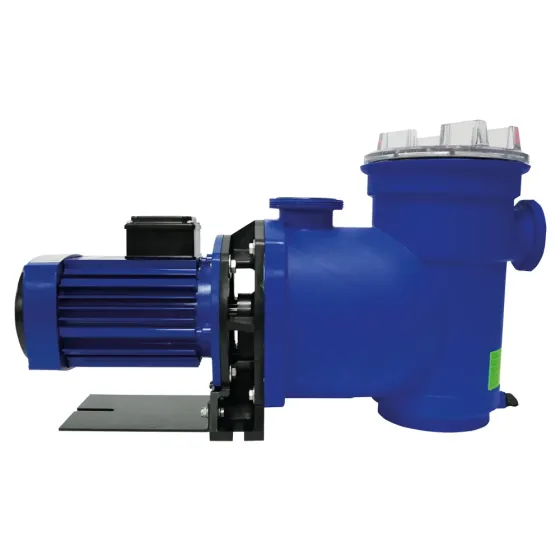

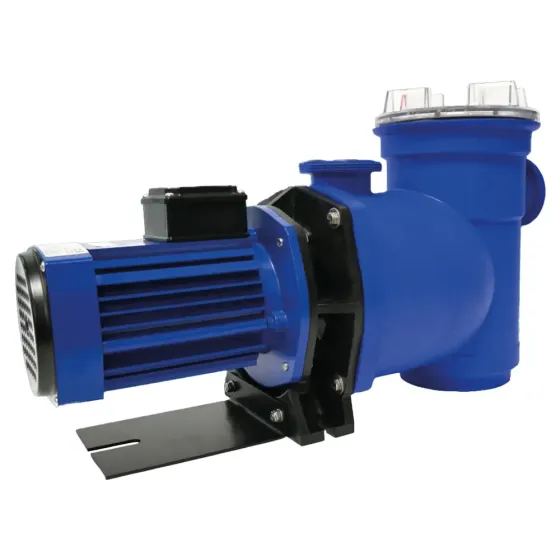

The Plastica Argonaut AV200-2DN-S represents the gold standard in swimming pool circulation technology for large residential and commercial applications. This robust 1.5HP single-phase pump delivers exceptional water movement with 210 litres per minute maximum flow capacity, making it the perfect choice for pools requiring high head pressure and continuous operation.

Engineered with ITT HydroAir’s proven technology, the AV200 combines powerful performance with remarkable energy efficiency. The glass-filled polypropylene construction ensures longevity in both chlorinated and saltwater environments, whilst the IPX5-rated motor provides reliable operation season after season. With self-priming capability up to 3 meters and whisper-quiet operation, this pump offers professional performance without compromise.

Whether you’re managing a large residential pool, commercial spa, or high-flow water feature, the Argonaut AV200 delivers the reliability and performance that professionals demand.

⭐ Key Features

✅ 1.5HP High-Performance Motor – Delivers powerful 1.1kW output power for large pools and commercial applications requiring consistent, high-volume water circulation

✅ Self-Priming Up to 3 Meters – Eliminates installation limitations with impressive suction lift capability, allowing flexible pump placement above water level without manual priming

✅ IPX5 Water-Resistant Motor – Totally enclosed motor design protects against water jets from any direction, ensuring reliable operation in wet pool environments

✅ Chemical-Resistant Construction – Glass-filled polypropylene tank withstands harsh chlorine, bromine, salt, and chemical treatments without degradation or corrosion

✅ Transparent Strainer Cover – Clear lid design allows instant visual inspection of basket condition without opening, saving time during routine maintenance checks

✅ Large-Capacity Strainer Basket – Oversized debris collection basket reduces cleaning frequency and prevents flow restriction, maintaining optimal pump performance

✅ Premium AISI 316 Stainless Steel Shaft – Marine-grade stainless steel construction ensures corrosion resistance and long-term reliability in demanding pool environments

✅ Professional Carbon/Ceramic Seal – Advanced mechanical seal technology suitable for chlorine, bromine, iodine, and seawater applications maintains leak-free operation

✅ Quiet Operation (65-67dB) – Sound-dampened design ensures peaceful poolside environment without sacrificing performance or flow capacity

✅ TÜV Safety Certified – Meets stringent European safety standards (EN60335-1 / EN60335-2-41) for peace of mind and compliance with UK regulations

🔧 Technical Specifications

Parameter	Specification
Model Number	AV200-2DN-S
Motor Power (HP)	1.5 HP
Output Power (P2)	1.1 kW
Input Power (P1)	1.3 kW (approx. 1.5-1.7 kW)
Voltage / Frequency	230V / 50Hz Single Phase
Maximum Flow Rate	210 Litres per Minute (LPM)
Maximum Head	18-19 meters
Self-Priming Capability	Up to 3 meters suction lift

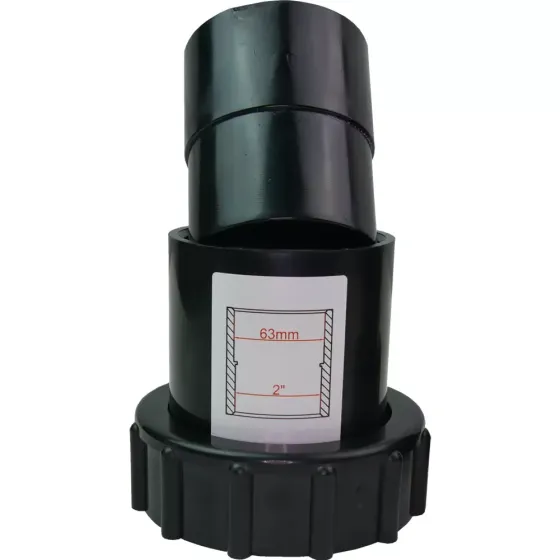

Connection Size	2″ / 63mm unions (BSP 2¾” threads)
Material – Pump Body	Glass-filled polypropylene
Material – Shaft	AISI 316 stainless steel
Mechanical Seal	Carbon/ceramic (suitable for chlorine/salt)
Motor Protection	IPX5 rated (water-resistant)
Noise Level	Approx. 65-67 dB
Ambient Temperature	Maximum 40°C
Safety Certification	TÜV certified (EN60335-1 / EN60335-2-41)

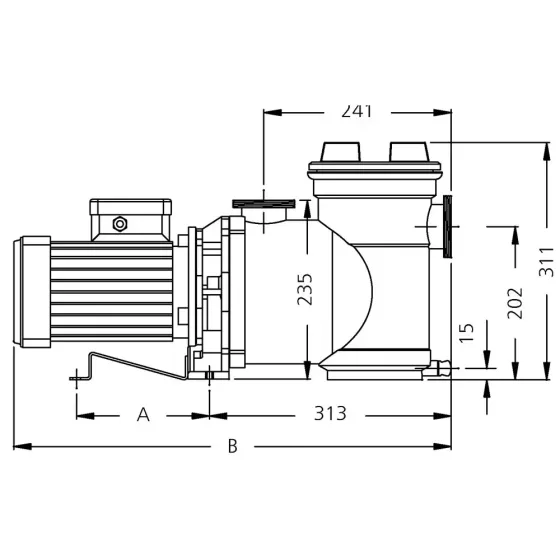

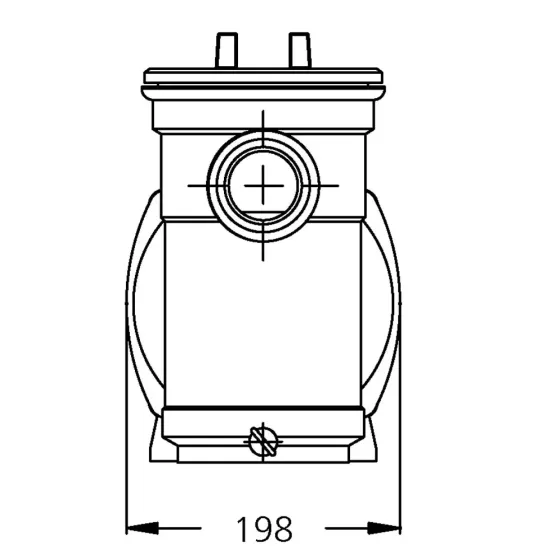

Dimensions (A × B)	174mm × 561mm
Weight	Approx. 15kg

---

💰 Usage Costs & Running Expenses

📊 Annual Running Cost Calculation

Understanding the true cost of pump operation helps you budget effectively and appreciate the efficiency of modern pump technology.

Power Consumption Details:

• Input Power: 1.3 kW (P1)
• Typical Usage: 8 hours/day during swimming season (May-September)
• Operating Days: 153 days per year (5 months)
• Total Annual Hours: 1,224 hours
• UK Energy Rate: £0.24 per kWh (2024 average)

✅ AV200-2DN-S Annual Running Cost:

• Calculation: 1.3 kW × 1,224 hours × £0.24/kWh
• Annual Cost: £381.80
• Monthly Cost (during season): £76.36

💸 Cost Comparison vs. Older Technology

❌ Older 2HP Single-Speed Pump (1.8 kW input):

• Annual Cost: 1.8 kW × 1,224 hours × £0.24/kWh = £528.60
• Monthly Cost: £105.72

💷 Your Savings with AV200-2DN-S:

• Annual Saving: £146.80
• 5-Year Saving: £734.00
• Payback Period: Equipment upgrade typically pays for itself within 2-3 years through energy savings alone

🏊 Usage Scenario: Year-Round Commercial Operation

For commercial installations operating throughout the year:

Commercial Operation (12 hours/day, 365 days):

• Annual Hours: 4,380 hours
• ✅ AV200-2DN-S Cost: 1.3 kW × 4,380 × £0.24 = £1,366.60/year
• ❌ Older 2HP Model Cost: 1.8 kW × 4,380 × £0.24 = £1,892.16/year
• 💰 Annual Saving: £525.56
• 📈 3-Year Saving: £1,576.68

---

🎯 Real World Examples & Applications

🏊‍♂️ Large Residential Swimming Pools

Perfect for pools between 60,000-90,000 litres (13,000-20,000 gallons). The 210 LPM flow rate ensures complete pool turnover every 6-8 hours, meeting health and safety requirements whilst maintaining crystal-clear water quality. Self-priming capability allows installation in pump houses or equipment rooms above pool level.

🛁 Commercial Spas & Therapy Pools

Ideal for hotel spas, health clubs, and rehabilitation facilities requiring continuous operation. The IPX5-rated motor handles humid environments, whilst the chemical-resistant construction withstands intensive sanitiser levels. Quiet operation (65-67dB) ensures guest comfort during hydrotherapy sessions.

🌊 Large Water Features & Ornamental Ponds

Excellent choice for decorative fountains, cascading water features, and large koi ponds requiring high head pressure. The 18-19 meter maximum head capability handles multi-tier installations, whilst the transparent strainer basket simplifies leaf and debris management.

🏢 Pool Service & Maintenance Companies

Reliable workhorse for professional pool servicing operations. TÜV safety certification ensures compliance with insurance requirements, whilst the proven mechanical seal design minimises callback visits. Easy-access strainer basket speeds up routine maintenance calls.

🔄 Upgrade Installations

Direct replacement for ageing 1.5HP pumps with standard 2″ connections. The modern IPX5 motor provides superior weather resistance compared to older IP44 designs, whilst improved hydraulics deliver better flow efficiency. Simple bolt-on installation using existing pipework and electrical connections.

---

💡 Cost Savings Examples

📍 Scenario 1: Replacing an Older 2HP Pump

Old Pump Specifications:

• Power: 1.8 kW input
• Usage: 8 hours/day, 5 months/year
• Annual Cost: £528.60

✅ New Argonaut AV200-2DN-S:

• Power: 1.3 kW input
• Usage: 8 hours/day, 5 months/year
• Annual Cost: £381.80

💰 Financial Benefits:

• Annual Saving: £146.80
• 💷 5-Year Saving: £734.00
• ⏱️ Payback Period: 2.5 years (assuming £400 equipment cost difference)
• 📈 10-Year Total Saving: £1,468.00

📍 Scenario 2: Commercial Pool Operating 12 Hours Daily

❌ Competitor Pump (1.8 kW):

• Daily Cost: 1.8 kW × 12 hours × £0.24 = £5.18
• Annual Cost: £1,892.16

✅ Argonaut AV200-2DN-S (1.3 kW):

• Daily Cost: 1.3 kW × 12 hours × £0.24 = £3.74
• Annual Cost: £1,366.60

💵 Operational Savings:

• Daily Saving: £1.44
• Monthly Saving: £43.78
• Annual Saving: £525.56
• 📊 3-Year Saving: £1,576.68 (enough to purchase a complete backup pump)

📍 Scenario 3: Extended Season Operation

Usage Pattern:

• May-October: 10 hours/day (184 days)
• November-April: 4 hours/day maintenance (182 days)
• Total Annual Hours: 2,568 hours

❌ Old 1.8 kW Pump Annual Cost:

• Calculation: 1.8 × 2,568 × £0.24 = £1,109.38

✅ AV200-2DN-S Annual Cost:

• Calculation: 1.3 × 2,568 × £0.24 = £801.33

💰 Extended Season Savings:

• Annual Saving: £308.05
• ⏱️ Equipment Payback: 18-24 months
• 📈 5-Year Saving: £1,540.25

📥 Downloads & Resources

📄 Argonaut Complete Installation & User Manual – Comprehensive 20-page manual covering installation procedures, electrical connections, priming instructions, maintenance schedules, and troubleshooting guide in 6 languages (PDF, 2.1MB)

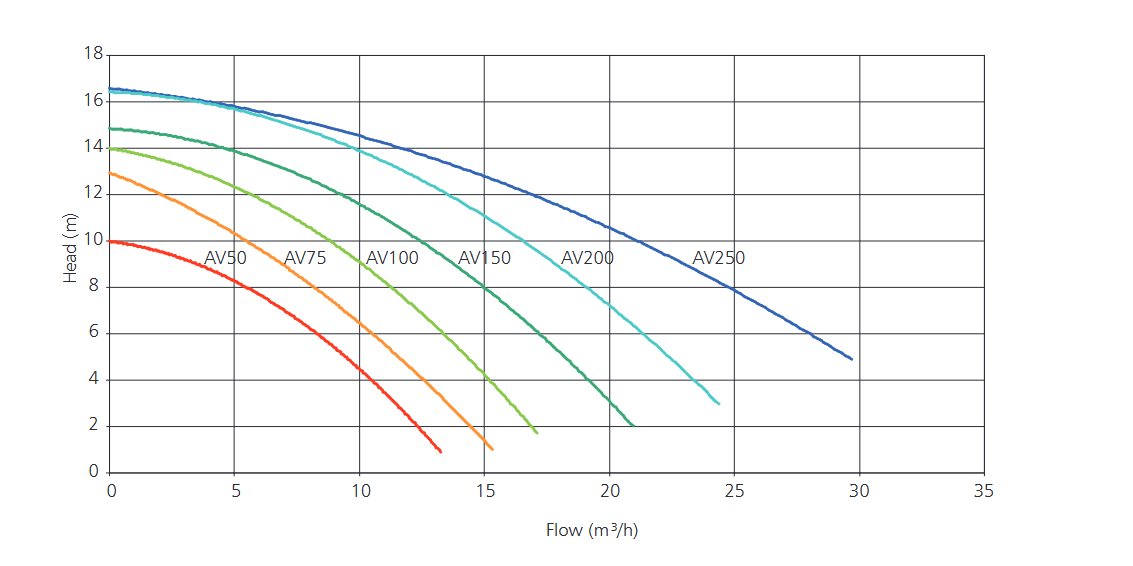

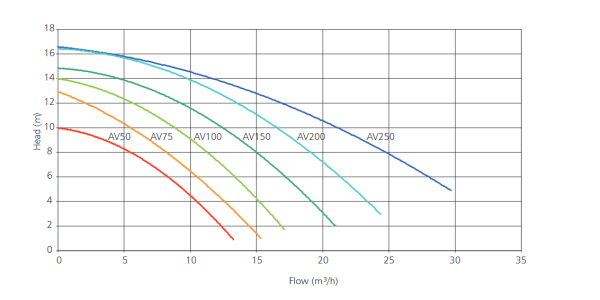

📄 Argonaut Technical Datasheet & Specifications – Detailed technical specifications, performance curves, dimensions, spare parts diagram, and model comparison chart (PDF, 1.4MB)

🏆 Why Choose the Argonaut AV200-2DN-S

✅ Proven ITT HydroAir Engineering – Backed by decades of swimming pool pump innovation and trusted by pool professionals worldwide for reliability and performance

✅ Superior Chemical Resistance – Glass-filled polypropylene construction outlasts standard materials in harsh chlorinated and saltwater environments, reducing replacement frequency

✅ Energy-Efficient Operation – Modern motor design reduces electricity consumption by up to 28% compared to older 2HP pumps, delivering real savings every season

✅ Maintenance-Friendly Design – Transparent lid and large strainer basket design simplifies routine cleaning, whilst robust construction minimises downtime and service calls

✅ Professional-Grade Components – AISI 316 stainless steel shaft and carbon/ceramic seal provide commercial durability in demanding residential and commercial applications

✅ Flexible Installation Options – Self-priming up to 3 meters eliminates installation restrictions, allowing pump placement in convenient locations above pool level

✅ Certified Safety Compliance – TÜV certification to EN60335-1 / EN60335-2-41 standards ensures peace of mind and meets UK regulatory requirements

✅ Whisper-Quiet Operation – 65-67dB noise level maintains peaceful poolside ambience without compromising powerful 210 LPM flow performance

✨ Summary

The Plastica Argonaut AV200-2DN-S represents the perfect balance of power, efficiency, and reliability for large residential and commercial pool applications. With its robust 1.5HP motor delivering 210 litres per minute, chemical-resistant construction, and energy-efficient operation, this pump provides professional-grade performance whilst reducing annual operating costs by up to £525 compared to older technology.

Whether you’re maintaining a large family pool, operating a commercial facility, or managing high-flow water features, the Argonaut AV200 delivers the dependable performance that professionals demand. Backed by TÜV safety certification and engineered with premium materials including AISI 316 stainless steel components, this pump is built to provide years of trouble-free service in the most demanding applications.

Invest in proven reliability, superior efficiency, and professional performance – choose the Argonaut AV200-2DN-S.
