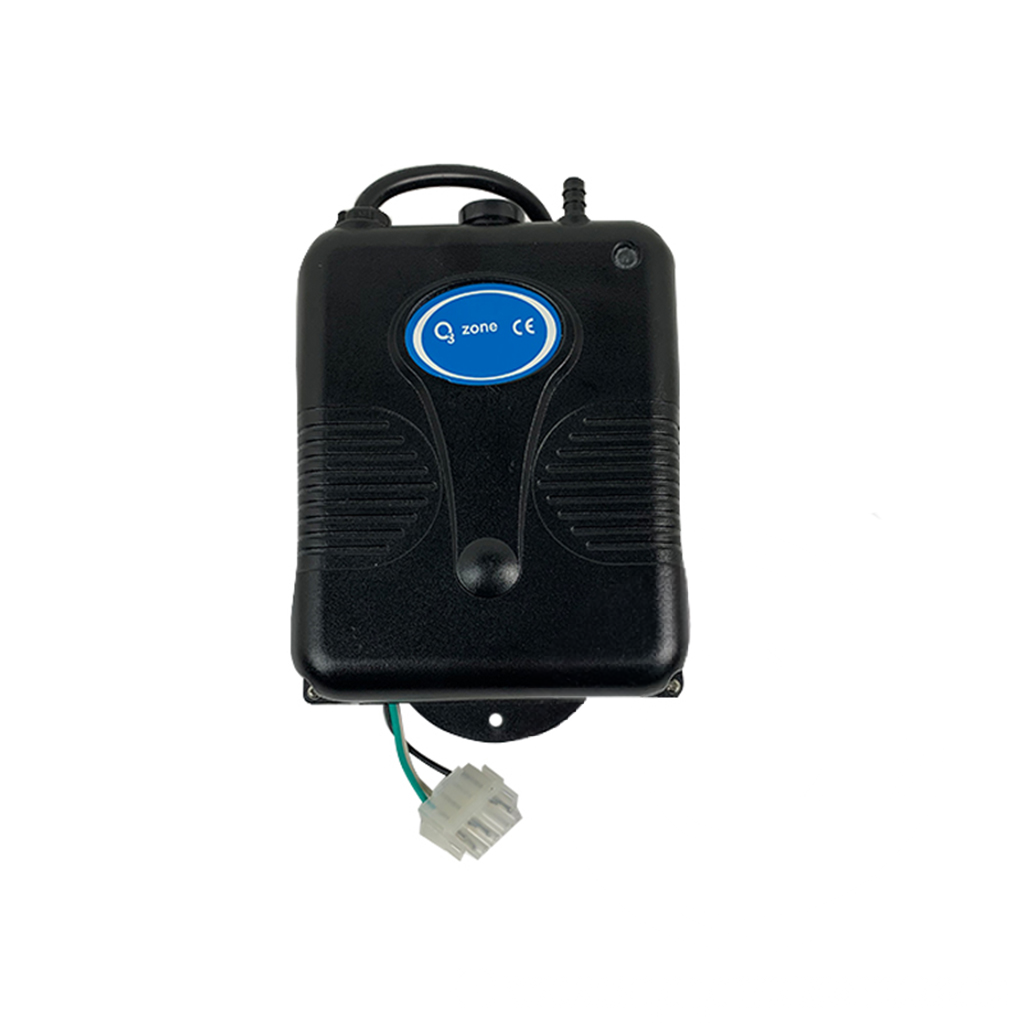

AP Series Ozone Generator (Model OZ‑AP100) – Compact CD Ozone Solution for Spa Sanitization

Introduction

The AP Series Ozone Generator (OZ‑AP100) delivers efficient and reliable water sanitation for hot tubs and spas. Utilizing Corona Discharge (CD) technology, this unit generates ozone to significantly reduce bacteria and improve water quality, making it ideal for spa systems equipped with venturi injection plumbing.

Key Features

Corona Discharge Ozone Generation
Produces ozone at approximately 50 mg/hour, offering consistent sanitation performance.
Fully Sealed Electronics
Designed with waterproof housings and a durable plastic ozone cell for longevity and safety.
Universal Compatibility
Can be installed in virtually any hot tub using a standard 3/8″ venturi system.

Technical Specifications

Specification	Details
Power Supply	240 V AC, 50 Hz
Ozone Output	~50 mg/hour
Dimensions (L × W × D)	170 mm × 130 mm × 70 mm (approx.)
Mounting Orientation	Vertical mounting recommended
Plumbing Interface	Includes one-way valve + 3/8″ clear tubing
Electrical Connector	4‑pin AMP cord (adaptable wiring)

Installation & Usage

Mount upright: Place unit at the highest practical point in the system to prevent condensate damage.
Connect to venturi: Use the supplied tubing and one-way valve to integrate with your spa’s venturi air injection line.
Power wiring: Includes a pre-attached 2‑wire, 4‑pin AMP cord — designed for easy plug-in or wiring update as needed.

Items Included

1 × AP Series Ozone Generator (Model OZ‑AP100)
One-way valve and pre-cut clear tubing for venturi connection
Pre-installed AMP wiring harness for power connection

Summary

The AP Series Ozone Generator (OZ‑AP100) provides a compact, dependable solution for spa sanitation. Featuring Corona Discharge technology, fully sealed construction, and universal compatibility, it improves water clarity and longevity with minimal setup. Ideal for retrofit and replacement in spa systems using venturi-based ozone injection.
