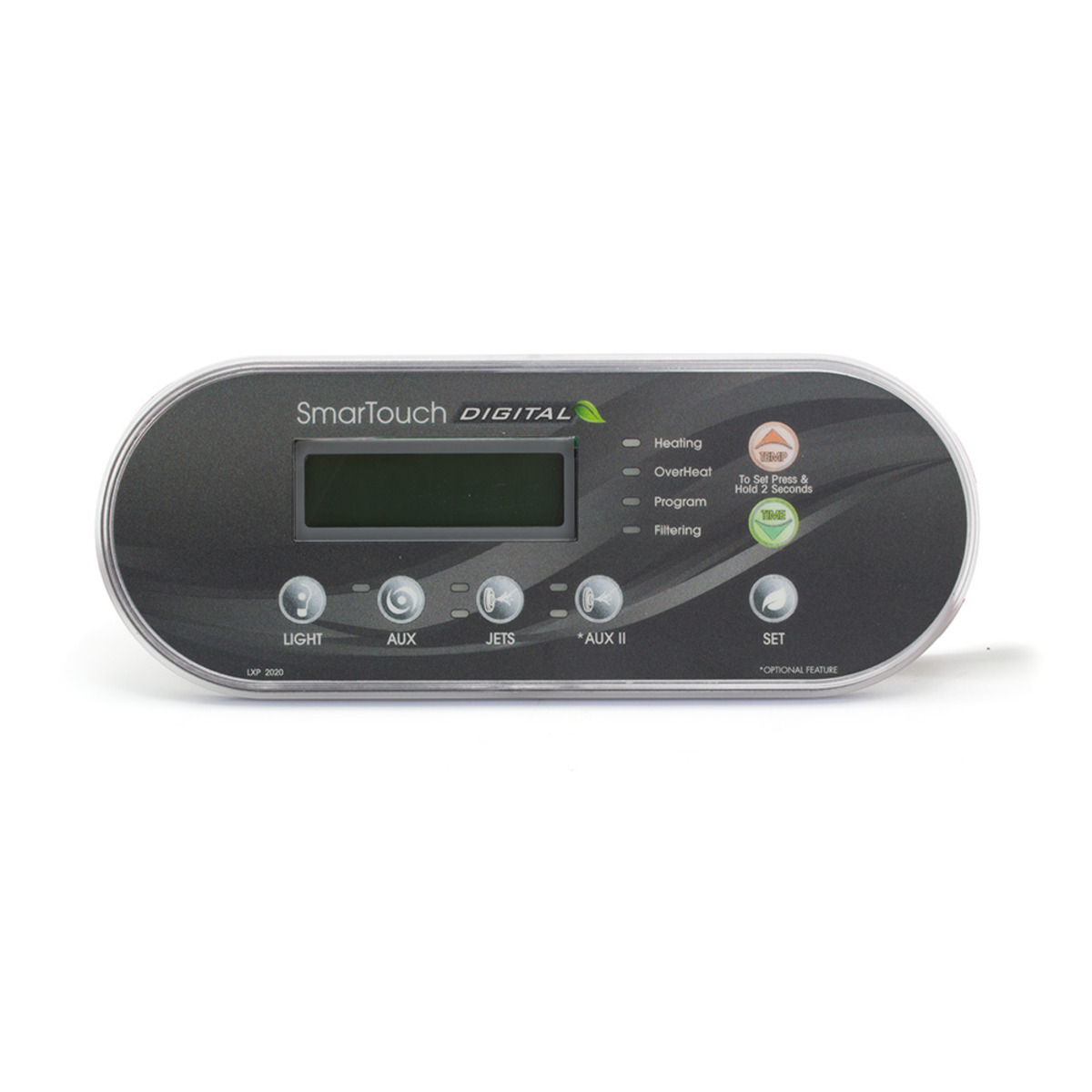

🎛️ ACC LXP-2020 Topside Control Panel – 7-Button Oval Main Control with Piezo Technology and Dual Auxiliary Outputs

Premium 7-button oval main topside with Piezo switch technology, LCD display, and dual auxiliary outputs for ACC SmarTouch Digital and Uni-Pack systems – Replaces KPL-2020

📋 Product Overview

The ACC LXP-2020 Topside Control Panel is a premium 7-button main control from ACC’s LXP series, featuring patented Piezo electronic switch technology for superior reliability. Manufactured by Applied Computer Controls (ACC), this American-engineered panel utilises unique potting techniques to eliminate moisture ingress, offering panel quality and reliability second to none in harsh spa environments.

This large oval panel measures 228 × 90 mm and features an LCD display for clear temperature and time readout. With dedicated buttons for temperature adjustment, jets, lighting, time function, dual auxiliary device control, and a Set function for programming, the LXP-2020 provides comprehensive spa control for single pump systems with dual auxiliary output capability.

Compatible with SMTD2000, SMTD3000, Acura Spas, SmarTouch Digital, and Compack Digital systems, the LXP-2020 connects via a 14-pin ribbon cable connector. This model replaces the discontinued KPL-2020 and is designed for specific ACC system configurations.

⚠️ IMPORTANT COMPATIBILITY NOTICE

The LXP-2020 may look similar to the LX-2020, but they are NOT interchangeable.

To avoid compatibility issues, please ensure you select the correct topside for your spa pack.

⚠️ If your spa pack has a yellow warning label featuring a black lightning bolt inside a triangle, the LXP-2020 topside is NOT compatible with your system.

If you’re unsure which topside is right for your system, contact Parts4Tubs for assistance.

✨ Key Features

• ✅ 7 Button Controls – Maximum functionality in oval design
• ✅ Piezo Electronic Switch Technology – Patented design for superior reliability
• ✅ Moisture-Resistant Construction – Unique potting techniques eliminate moisture
• ✅ LCD Display – Clear temperature and time readout
• ✅ Large Oval Design – 228 × 90 mm form factor
• ✅ Dual Auxiliary Outputs – Aux + Aux 2 for multiple devices
• ✅ Time Function – Built-in time control via Time/Temp- button
• ✅ 14-Pin Ribbon Connector – Secure and reliable connection
• ✅ 1 Pump System Support – Single pump configurations
• ✅ Replaces KPL-2020 – Direct replacement model
• ✅ American Quality – ACC engineering excellence

⚙️ Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	LXP-2020
MPN	LXP2020
Series	LXP
SKU	TOP-8600
Product Type	Main Topside Control Panel
Shape	Oval
Total Buttons	7
Display Type	LCD
Max Pumps	1
Auxiliary Outputs	2 (Aux + Aux 2)
Connection Type	14-Pin Connector with Ribbon Cable
Length	228 mm
Width	90 mm
Switch Technology	Patented Piezo Electronic
Moisture Protection	Unique Potting Techniques
Overlay Display Cut Out	Yes
Replaces	KPL-2020

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model/Type	Compatible
ACC	SMTD2000	✅ Compatible
ACC	SMTD3000	✅ Compatible
Acura Spas	All models	✅ Compatible
ACC	SmarTouch Digital	✅ Compatible
ACC	Compack Digital	✅ Compatible
ACC	All Uni-Pack Systems	✅ Compatible

❌ NOT Compatible With

Indicator	Action
Yellow warning label with black lightning bolt triangle	❌ Do NOT use LXP-2020
LX-2020 specific systems	❌ Models are NOT interchangeable

How to Verify Compatibility:

• 📍 Check your control box for SMTD2000, SMTD3000, or SmarTouch Digital marking
• 📍 Look for ACC, Acura Spas, or Compack Digital branding
• 📍 Check for yellow warning label with lightning bolt – if present, LXP-2020 is NOT compatible
• 📍 Verify 14-pin ribbon cable connection port
• 📍 Contact Parts4Tubs if unsure

🖥️ Display Features

The LCD display provides comprehensive spa information:

Feature	Description
Display Type	LCD
Temperature Display	Current and set water temperature
Time Display	Time function readout
Status Indication	System operating status
Visibility	Clear, easy-to-read digits
Display Cut Out	Yes (overlay accommodates display)

🔘 Button Functions & Controls

The 7-button layout provides maximum spa control:

Button	Function
Temp+	Increase set temperature
Time/Temp-	Time function / Decrease set temperature (dual function)
Jets	Activate jet pump on/off
Lights	Spa lighting control
Aux	Auxiliary device 1 control
Aux 2	Auxiliary device 2 control
Set	Access programming and settings

Dual Auxiliary Output Benefits:

• Control two separate auxiliary devices
• Water feature + secondary lighting
• Multiple zone lighting control
• Additional equipment activation
• Expanded spa functionality

Time/Temp- Dual Function:

• Access time functions
• Decrease temperature setting
• Single button, dual purpose
• Space-efficient design

📐 Dimensions

Measurement	Value
Length	228 mm
Width	90 mm
Form Factor	Oval

Large Oval Design: The LXP-2020 is one of the largest oval panels in ACC’s range at 228 × 90 mm.

🔌 Connection Information

Specification	Detail
Connection Type	14-Pin Connector with Ribbon Cable
Cable Style	Flat ribbon cable with 14-pin plug
Connection Port	SMTD2000/SMTD3000/SmarTouch Digital/Uni-Pack Control Box

Ribbon Cable Benefits:

• Secure connection
• Low profile routing
• Reliable long-term performance

⚠️ Important: This panel uses a 14-pin ribbon connector. Verify your control box has the correct port type before ordering.

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify this is the correct model – LXP-2020 is NOT interchangeable with LX-2020
• ⚠️ Check for yellow warning label with lightning bolt – if present, this panel is NOT compatible
• ⚠️ Check cutout accommodates panel size (228 × 90 mm oval)
• ⚠️ Confirm 14-pin ribbon cable connection port on control box

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Access Control Box – Locate ACC control unit
3. Verify Compatibility – Confirm no yellow lightning bolt warning label
4. Remove Old Panel – Carefully remove existing topside
5. Disconnect Cable – Carefully unplug ribbon connector
6. Prepare Cutout – Ensure oval opening is correct size
7. Route New Cable – Position ribbon cable for clean routing
8. Connect New Panel – Plug 14-pin connector into control box
9. Verify Orientation – Ensure connector is correctly aligned
10. Mount Panel – Secure in oval cutout
11. Power On – Restore power and test functions

Testing Checklist:

• [ ] LCD display shows temperature
• [ ] Temp+ increases set temperature
• [ ] Time/Temp- accesses time and decreases temperature
• [ ] Jets button activates pump
• [ ] Lights button controls lighting
• [ ] Aux button controls auxiliary device 1
• [ ] Aux 2 button controls auxiliary device 2
• [ ] Set button accesses programming

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose ribbon	Check power, reseat connector
Panel not working	Wrong model installed	Verify LXP-2020 vs LX-2020 compatibility
Buttons unresponsive	Connection issue	Check ribbon orientation and seating
Wrong temperature	Sensor issue (not topside)	Check temperature sensor
Pump not responding	Control box issue	Verify control box operation
Aux not working	Device connection	Check auxiliary device wiring
Time not updating	Programming issue	Use Set to reconfigure time

Piezo Switch Tips:

• Piezo buttons provide consistent tactile feedback
• No mechanical components to wear out
• Moisture-resistant for long-term reliability
• Clean button surface regularly

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel with soft, damp cloth	Weekly
Check button response	Monthly
Inspect ribbon connection	Annually
Check cable routing	Annually

DO NOT:

• ❌ Use abrasive cleaners
• ❌ Use harsh chemicals on panel
• ❌ Pull or tug on ribbon cable
• ❌ Press buttons with sharp objects

♨️ Ideal Applications

Application	Suitability
♨️ ACC SMTD2000 systems	✅ Compatible
♨️ ACC SMTD3000 systems	✅ Compatible
♨️ Acura Spas	✅ Compatible
♨️ SmarTouch Digital systems	✅ Compatible
♨️ Compack Digital systems	✅ Compatible
♨️ All ACC Uni-Pack systems	✅ Compatible
♨️ Replacement for KPL-2020	✅ Direct replacement
♨️ Spas with dual auxiliary devices	✅ Aux + Aux 2
❌ Systems with yellow lightning bolt warning	❌ NOT compatible
❌ LX-2020 specific systems	❌ NOT interchangeable

Common Installation Scenarios:

• 🔧 Replacement for damaged LXP-2020 topside
• 🔧 Replacement for discontinued KPL-2020
• 🔧 SMTD2000/SMTD3000 system repair
• 🔧 Acura Spas control panel replacement

❓ Frequently Asked Questions

Q: Can I use the LXP-2020 to replace my LX-2020?

A: No. Although they look similar, the LXP-2020 and LX-2020 are NOT interchangeable. Always verify your existing panel model number before ordering.

Q: How do I know if the LXP-2020 is compatible with my spa?

A: Check your spa pack control box. If it has a yellow warning label featuring a black lightning bolt inside a triangle, the LXP-2020 is NOT compatible. Also verify your existing panel is an LXP model, not an LX model.

Q: What does the LXP-2020 replace?

A: The LXP-2020 replaces the discontinued KPL-2020 model.

Q: What is Piezo switch technology?

A: Piezo electronic switch technology is a patented design that provides superior tactile feedback, exceptional durability, and moisture resistance. Combined with unique potting techniques, it eliminates moisture ingress for reliable operation in harsh spa environments.

Q: What systems is this compatible with?

A: The LXP-2020 fits SMTD2000, SMTD3000, Acura Spas, SmarTouch Digital, Compack Digital, and all ACC Uni-Pack controllers (excluding systems with yellow lightning bolt warning label).

Q: What do the two Aux buttons control?

A: The Aux and Aux 2 buttons control two separate auxiliary outputs for additional spa devices such as water features, secondary lighting, zone lighting, or other accessories connected to your spa pack.

🏆 Why Choose the ACC LXP-2020 Topside Panel

• ✅ 7 Buttons – Maximum control functionality
• ✅ Piezo Switch Technology – Patented superior reliability
• ✅ Moisture-Resistant – Unique potting techniques
• ✅ LCD Display – Clear temperature and time readout
• ✅ Dual Auxiliary Outputs – Aux + Aux 2
• ✅ Time Function – Built-in time control
• ✅ Large Oval Design – 228 × 90 mm
• ✅ 14-Pin Ribbon Connection – Secure interface
• ✅ KPL-2020 Replacement – Direct upgrade path
• ✅ American Quality – ACC engineering

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ ACC Uni-Pack parts stocked

✨ Summary

The ACC LXP-2020 Topside Control Panel is a premium 7-button oval main control from ACC’s LXP series, featuring patented Piezo electronic switch technology and unique moisture-resistant potting techniques. This large panel measures 228 × 90 mm and features an LCD display with dedicated buttons for Temp+, Lights, Jets, Time/Temp-, Aux, Aux 2, and Set functions. The dual auxiliary outputs (Aux + Aux 2) provide control of multiple auxiliary devices. Compatible with SMTD2000, SMTD3000, Acura Spas, SmarTouch Digital, Compack Digital, and all ACC Uni-Pack controllers. Replaces discontinued KPL-2020. IMPORTANT: Not interchangeable with LX-2020 despite similar appearance. Not compatible with systems showing yellow lightning bolt warning label. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
