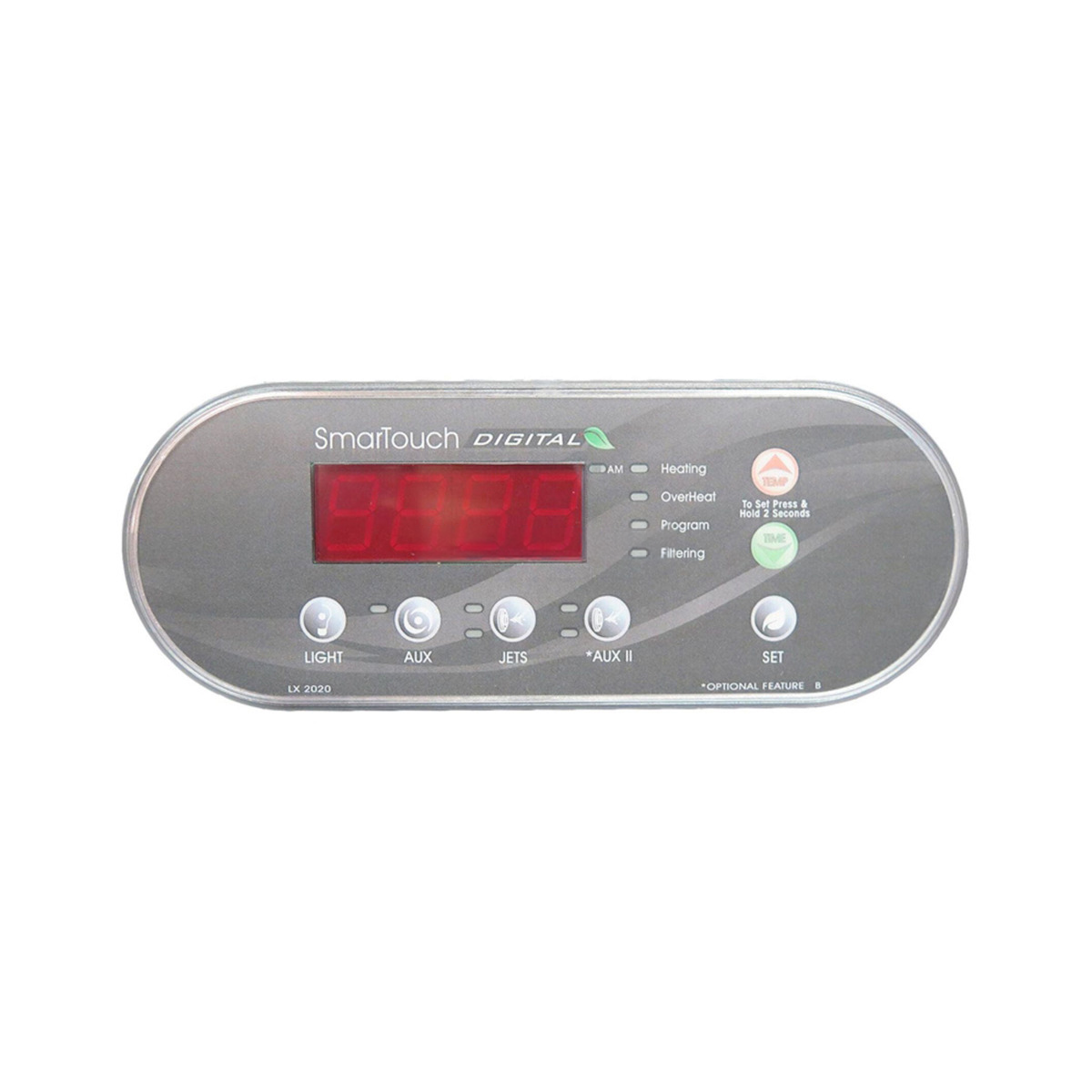

💆 ACC LX-2020 Topside Control Panel – Flagship 7-Button Oval Main Control with Dual Auxiliary Outputs

Premium flagship 7-button oval main topside with Piezo switch technology, LCD display, and dual auxiliary outputs for ACC SmarTouch Digital and Uni-Pack systems

📋 Product Overview

The ACC LX-2020 Topside Control Panel is the flagship model in ACC’s LX series, featuring a comprehensive 7-button layout with dual auxiliary outputs. Manufactured by Applied Computer Controls (ACC), this American-engineered panel features patented Piezo electronic switch technology and unique potting techniques to eliminate moisture ingress, offering panel quality and reliability second to none in harsh spa environments.

This large oval panel measures 228 × 93 mm and features an LCD display for clear temperature and time readout. With dedicated buttons for temperature adjustment, jets, lighting, time function, dual auxiliary device control, and a Set function for programming, the LX-2020 provides the most comprehensive spa control available in the ACC oval range for single pump systems.

Compatible with SMTD2000, SMTD3000, Acura Spas, SmarTouch Digital, and Compack Digital systems, the LX-2020 connects via a 14-pin ribbon cable connector. The Time/Temp- dual function button provides added versatility, while the dual Aux outputs (Aux and Aux 2) enable control of multiple auxiliary devices.

✨ Key Features

• ✅ 7 Button Controls – Maximum functionality in oval design
• ✅ Piezo Electronic Switch Technology – Patented design for superior reliability
• ✅ Moisture-Resistant Construction – Unique potting techniques eliminate moisture
• ✅ LCD Display – Clear temperature and time readout
• ✅ Large Oval Design – Flagship 228 × 93 mm form factor
• ✅ Dual Auxiliary Outputs – Aux + Aux 2 for multiple devices
• ✅ Time Function – Built-in time control via Time/Temp- button
• ✅ 14-Pin Ribbon Connector – Secure and reliable connection
• ✅ 1 Pump System Support – Single pump configurations
• ✅ American Quality – ACC engineering excellence

⚙️ Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	LX-2020
MPN	LX2020
Series	LX
SKU	8597
Product Type	Main Topside Control Panel
Shape	Oval
Total Buttons	7
Display Type	LCD
Max Pumps	1
Auxiliary Outputs	2 (Aux + Aux 2)
Connection Type	14-Pin Connector with Ribbon Cable
Length	228 mm
Width	93 mm
Switch Technology	Patented Piezo Electronic
Moisture Protection	Unique Potting Techniques
Overlay Display Cut Out	Yes

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model/Type	Compatible
ACC	SMTD2000	✅ Designed for
ACC	SMTD3000	✅ Designed for
Acura Spas	All models	✅ Compatible
ACC	SmarTouch Digital	✅ Compatible
ACC	Compack Digital	✅ Compatible
ACC	All Uni-Pack Systems	✅ Yes

How to Verify Compatibility:

• 📍 Check your control box for SMTD2000, SMTD3000, or SmarTouch Digital marking
• 📍 Look for ACC, Acura Spas, or Compack Digital branding
• 📍 Verify 14-pin ribbon cable connection port
• 📍 Contact Parts4Tubs if unsure

🖥️ Display Features

The LCD display provides comprehensive spa information:

Feature	Description
Display Type	LCD
Temperature Display	Current and set water temperature
Time Display	Time function readout
Status Indication	System operating status
Visibility	Clear, easy-to-read digits
Display Cut Out	Yes (overlay accommodates display)

🔘 Button Functions & Controls

The 7-button layout provides maximum spa control:

Button	Function
Temp+	Increase set temperature
Time/Temp-	Time function / Decrease set temperature (dual function)
Jets	Activate jet pump on/off
Lights	Spa lighting control
Aux	Auxiliary device 1 control
Aux 2	Auxiliary device 2 control
Set	Access programming and settings

Dual Auxiliary Output Benefits:

• Control two separate auxiliary devices
• Water feature + secondary lighting
• Multiple zone lighting control
• Additional equipment activation
• Expanded spa functionality

Time/Temp- Dual Function:

• Access time functions
• Decrease temperature setting
• Single button, dual purpose
• Space-efficient design

📐 Dimensions

Measurement	Value
Length	228 mm
Width	93 mm
Form Factor	Oval

Flagship Size: The LX-2020 is the largest oval panel in ACC’s range, positioned as the flagship model above the LX-1000 (165 × 76 mm) and the compact KP-2105 (114 × 50 mm).

🔌 Connection Information

Specification	Detail
Connection Type	14-Pin Connector with Ribbon Cable
Cable Style	Flat ribbon cable with 14-pin plug
Connection Port	SMTD2000/SMTD3000/SmarTouch Digital/Uni-Pack Control Box

Ribbon Cable Benefits:

• Secure connection
• Low profile routing
• Reliable long-term performance

⚠️ Important: This panel uses a 14-pin ribbon connector. Verify your control box has the correct port type before ordering.

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify SMTD2000, SMTD3000, or compatible system
• ⚠️ Check cutout accommodates panel size (228 × 93 mm oval)
• ⚠️ Confirm 14-pin ribbon cable connection port on control box

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Access Control Box – Locate ACC control unit
3. Remove Old Panel – Carefully remove existing topside
4. Disconnect Cable – Carefully unplug ribbon connector
5. Prepare Cutout – Ensure oval opening is correct size
6. Route New Cable – Position ribbon cable for clean routing
7. Connect New Panel – Plug 14-pin connector into control box
8. Verify Orientation – Ensure connector is correctly aligned
9. Mount Panel – Secure in oval cutout
10. Power On – Restore power and test functions

Testing Checklist:

• [ ] LCD display shows temperature
• [ ] Temp+ increases set temperature
• [ ] Time/Temp- accesses time and decreases temperature
• [ ] Jets button activates pump
• [ ] Lights button controls lighting
• [ ] Aux button controls auxiliary device 1
• [ ] Aux 2 button controls auxiliary device 2
• [ ] Set button accesses programming

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose ribbon	Check power, reseat connector
Buttons unresponsive	Connection issue	Check ribbon orientation and seating
Wrong temperature	Sensor issue (not topside)	Check temperature sensor
Pump not responding	Control box issue	Verify control box operation
Aux not working	Device connection	Check auxiliary device wiring
Time not updating	Programming issue	Use Set to reconfigure time
Display flickering	Loose connection	Reseat ribbon cable firmly

Piezo Switch Tips:

• Piezo buttons provide consistent tactile feedback
• No mechanical components to wear out
• Moisture-resistant for long-term reliability
• Clean button surface regularly

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel with soft, damp cloth	Weekly
Check button response	Monthly
Inspect ribbon connection	Annually
Check cable routing	Annually

DO NOT:

• ❌ Use abrasive cleaners
• ❌ Use harsh chemicals on panel
• ❌ Pull or tug on ribbon cable
• ❌ Press buttons with sharp objects

♨️ Ideal Applications

Application	Suitability
♨️ ACC SMTD2000 systems	✅ Designed for
♨️ ACC SMTD3000 systems	✅ Designed for
♨️ Acura Spas	✅ Compatible
♨️ SmarTouch Digital systems	✅ Compatible
♨️ Compack Digital systems	✅ Compatible
♨️ All ACC Uni-Pack systems	✅ Compatible
♨️ Spas with dual auxiliary devices	✅ Aux + Aux 2
♨️ Flagship panel preference	✅ 228 × 93 mm
♨️ Replacement for faulty LX-2020	✅ Direct replacement
❌ Multi-pump systems	❌ 1 pump only
❌ Non-ACC control systems	❌ Not compatible

Common Installation Scenarios:

• 🔧 Replacement for damaged LX-2020 topside
• 🔧 SMTD2000/SMTD3000 system repair
• 🔧 Upgrade from LX-1000 for dual aux capability
• 🔧 Acura Spas control panel replacement

❓ Frequently Asked Questions

Q: What’s the difference between LX-2020 and LX-1000?

A: The LX-2020 has 7 buttons (vs 6), is larger at 228 × 93 mm (vs 165 × 76 mm), includes dual auxiliary outputs (Aux + Aux 2 vs single Aux), and features a Time/Temp- dual function button. The LX-2020 is the flagship model in the LX series.

Q: What is Piezo switch technology?

A: Piezo electronic switch technology is a patented design that provides superior tactile feedback, exceptional durability, and moisture resistance. Combined with unique potting techniques, it eliminates moisture ingress for reliable operation in harsh spa environments.

Q: What systems is this compatible with?

A: The LX-2020 fits SMTD2000, SMTD3000, Acura Spas, SmarTouch Digital, Compack Digital, and all ACC Uni-Pack controllers.

Q: What do the two Aux buttons control?

A: The Aux and Aux 2 buttons control two separate auxiliary outputs for additional spa devices such as water features, secondary lighting, zone lighting, or other accessories connected to your spa pack.

Q: What does Time/Temp- mean?

A: This is a dual function button. It provides access to time functions and also serves as the temperature decrease button, offering two functions in one control.

Q: Is the overlay included?

A: The overlay with display cut out is part of the LX-2020 assembly.

🏆 Why Choose the ACC LX-2020 Topside Panel

• ✅ Flagship Model – Maximum functionality
• ✅ 7 Buttons – Comprehensive spa control
• ✅ Piezo Switch Technology – Patented superior reliability
• ✅ Moisture-Resistant – Unique potting techniques
• ✅ LCD Display – Clear temperature and time readout
• ✅ Dual Auxiliary Outputs – Aux + Aux 2
• ✅ Time Function – Built-in time control
• ✅ Large Oval Design – 228 × 93 mm
• ✅ 14-Pin Ribbon Connection – Secure interface
• ✅ American Quality – ACC engineering

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ ACC Uni-Pack parts stocked

✨ Summary

The ACC LX-2020 Topside Control Panel is the flagship 7-button oval main control in ACC’s LX series, featuring patented Piezo electronic switch technology and unique moisture-resistant potting techniques. This large panel measures 228 × 93 mm and features an LCD display with dedicated buttons for Temp+, Lights, Jets, Time/Temp-, Aux, Aux 2, and Set functions. The dual auxiliary outputs (Aux + Aux 2) provide control of multiple auxiliary devices. Compatible with SMTD2000, SMTD3000, Acura Spas, SmarTouch Digital, Compack Digital, and all ACC Uni-Pack controllers. Connects via 14-pin ribbon cable. The ultimate choice for spa owners seeking maximum control functionality with dual auxiliary outputs. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
