♨️ ACC LX-1000 Topside Control Panel – 6-Button Oval Main Control with Piezo Technology

Premium 6-button oval main topside with Piezo switch technology, LCD display, and auxiliary output for ACC SmarTouch 1000 and Uni-Pack systems

📋 Product Overview

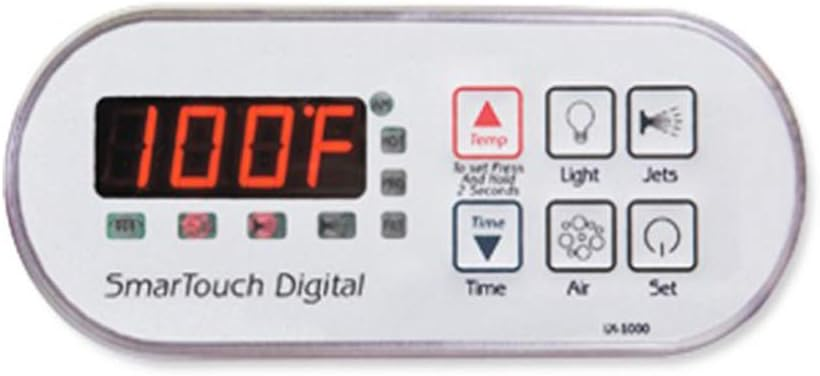

The ACC LX-1000 Topside Control Panel is a premium 6-button main control featuring the classic oval design synonymous with ACC quality. Manufactured by Applied Computer Controls (ACC), this American-engineered panel features patented Piezo electronic switch technology and unique potting techniques to eliminate moisture ingress, offering exceptional quality and reliability in harsh spa environments.

This medium-sized oval panel measures 165 × 76 mm and features an LCD display for clear temperature readout and system status. With dedicated buttons for temperature adjustment, jets, lighting, auxiliary device control, and a Set function for programming, the LX-1000 provides comprehensive spa control for single pump systems with auxiliary output capability.

Designed for ACC SmarTouch 1000 systems and compatible with all ACC Uni-Pack controllers, the LX-1000 connects via a 14-pin ribbon cable connector. The oval form factor offers a classic spa aesthetic while delivering the flexibility and quality that ACC is renowned for.

⭐ Key Features

• ✅ Piezo Electronic Switch Technology – Patented design for superior reliability
• ✅ Moisture-Resistant Construction – Unique potting techniques eliminate moisture
• ✅ 6 Button Controls – Comprehensive spa control
• ✅ LCD Display – Clear temperature readout and system status
• ✅ Classic Oval Design – 165 × 76 mm form factor
• ✅ Auxiliary Output – Additional device control
• ✅ 14-Pin Ribbon Connector – Secure and reliable connection
• ✅ 1 Pump System Support – Single pump configurations
• ✅ SmarTouch 1000 Compatible – Designed for ACC systems
• ✅ American Quality – ACC engineering excellence

🔧 Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	LX-1000
MPN	LX-1000
Series	LX
SKU	8464
Product Type	Main Topside Control Panel
Shape	Oval
Total Buttons	6
Display Type	LCD
Max Pumps	1
Auxiliary Outputs	1
Connection Type	14-Pin Connector with Ribbon Cable
Length	165 mm
Width	76 mm
Switch Technology	Patented Piezo Electronic
Moisture Protection	Unique Potting Techniques
Overlay Display Cut Out	Yes
Compatible Systems	ACC SmarTouch 1000, All ACC Uni-Packs

💡 Display Features

The LCD display provides essential spa information:

Feature	Description
Display Type	LCD
Temperature Display	Current water temperature
Set Temperature	Target temperature setting
Status Indication	System operating status
Visibility	Clear, easy-to-read digits
Display Cut Out	Yes (overlay accommodates display)

🔘 Button Functions & Controls

The 6-button layout provides comprehensive spa control:

Button	Function
Temp+	Increase set temperature
Temp-	Decrease set temperature
Jets	Activate jet pump on/off
Lights	Spa lighting control
Aux	Auxiliary device control
Set	Access programming and settings

Piezo Switch Technology Benefits:

• Superior tactile feedback
• Exceptional durability
• Moisture-resistant operation
• Long operational lifespan
• Reliable response in all conditions

System Support:

• 1 pump control for jet operation
• Lighting control for ambience
• Auxiliary output for additional devices
• Temperature adjustment and monitoring
• Programming access via Set button

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model/Type	Compatible
ACC	SmarTouch 1000	✅ Designed for
ACC	All Uni-Pack Systems	✅ Yes

Primary Compatibility: The LX-1000 is specifically designed for the ACC SmarTouch 1000 system but is also compatible with all ACC Uni-Pack control systems.

How to Verify Compatibility:

• 📍 Check your control box for “ACC SmarTouch 1000” marking
• 📍 Look for ACC or Uni-Pack branding
• 📍 Verify 14-pin ribbon cable connection port
• 📍 Contact Parts4Tubs if unsure

📐 Dimensions

Measurement	Value
Length	165 mm
Width	76 mm
Form Factor	Oval

Medium Oval Design: The LX-1000 represents the medium size in ACC’s oval panel range, positioned between the compact KP-2105 (114 × 50 mm) and the large LXP-2020 (228 × 90 mm).

🔌 Connection Information

Specification	Detail
Connection Type	14-Pin Connector with Ribbon Cable
Cable Style	Flat ribbon cable with 14-pin plug
Connection Port	ACC SmarTouch 1000 / Uni-Pack Control Box

Ribbon Cable Benefits:

• Secure connection
• Low profile routing
• Reliable long-term performance

⚠️ Important: This panel uses a 14-pin ribbon connector. Verify your control box has the correct port type before ordering.

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify ACC SmarTouch 1000 or Uni-Pack system compatibility
• ⚠️ Check cutout accommodates panel size (165 × 76 mm oval)
• ⚠️ Confirm 14-pin ribbon cable connection port on control box

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Access Control Box – Locate ACC control unit
3. Remove Old Panel – Carefully remove existing topside
4. Disconnect Cable – Carefully unplug ribbon connector
5. Prepare Cutout – Ensure oval opening is correct size
6. Route New Cable – Position ribbon cable for clean routing
7. Connect New Panel – Plug 14-pin connector into control box
8. Verify Orientation – Ensure connector is correctly aligned
9. Mount Panel – Secure in oval cutout
10. Power On – Restore power and test functions

Testing Checklist:

• [ ] LCD display shows temperature
• [ ] Temp+ increases set temperature
• [ ] Temp- decreases set temperature
• [ ] Jets button activates pump
• [ ] Lights button controls lighting
• [ ] Aux button controls auxiliary device
• [ ] Set button accesses programming

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose ribbon	Check power, reseat connector
Buttons unresponsive	Connection issue	Check ribbon orientation and seating
Wrong temperature	Sensor issue (not topside)	Check temperature sensor
Pump not responding	Control box issue	Verify control box operation
Aux not working	Device connection	Check auxiliary device wiring
Display flickering	Loose connection	Reseat ribbon cable firmly

Piezo Switch Tips:

• Piezo buttons provide consistent tactile feedback
• No mechanical components to wear out
• Moisture-resistant for long-term reliability
• Clean button surface regularly

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel with soft, damp cloth	Weekly
Check button response	Monthly
Inspect ribbon connection	Annually
Check cable routing	Annually

DO NOT:

• ❌ Use abrasive cleaners
• ❌ Use harsh chemicals on panel
• ❌ Pull or tug on ribbon cable
• ❌ Press buttons with sharp objects

♨️ Ideal Applications

Application	Suitability
♨️ ACC SmarTouch 1000 systems	✅ Designed for
♨️ ACC Uni-Pack system spas	✅ Compatible
♨️ Single pump configurations	✅ Perfect match
♨️ Spas with auxiliary device	✅ Aux button included
♨️ Classic oval panel preference	✅ 165 × 76 mm oval
♨️ Replacement for faulty LX-1000	✅ Direct replacement
❌ Multi-pump systems	❌ 1 pump only
❌ Non-ACC control systems	❌ Not compatible

Common Installation Scenarios:

• 🔧 Replacement for damaged LX-1000 topside
• 🔧 SmarTouch 1000 system repair
• 🔧 Uni-Pack system with auxiliary device
• 🔧 Preference for medium oval design

❓ Frequently Asked Questions

Q: What’s the difference between LX-1000 and LXP-2020?

A: The LX-1000 has 6 buttons and measures 165 × 76 mm, while the LXP-2020 has 7 buttons and is larger at 228 × 90 mm. The LXP-2020 also has dual auxiliary outputs versus single auxiliary on the LX-1000.

Q: What is Piezo switch technology?

A: Piezo electronic switch technology is a patented design that provides superior tactile feedback, exceptional durability, and moisture resistance. Combined with unique potting techniques, it eliminates moisture ingress for reliable operation in harsh spa environments.

Q: What systems is this compatible with?

A: The LX-1000 is specifically designed for the ACC SmarTouch 1000 system but is also compatible with all ACC Uni-Pack controllers.

Q: What does the Aux button control?

A: The Aux button controls an auxiliary output for additional spa devices such as secondary lighting, water features, or other accessories connected to your spa pack.

Q: How does this compare to rectangular KP panels?

A: The LX-1000 is oval (165 × 76 mm) while KP panels are rectangular (139 × 63 mm). The LX-1000 offers classic oval aesthetics while KP panels provide modern rectangular design. Both offer similar functionality.

Q: Is the overlay included?

A: The overlay with display cut out is part of the LX-1000 assembly.

🏆 Why Choose the ACC LX-1000 Topside Panel

• ✅ Piezo Switch Technology – Patented superior reliability
• ✅ Moisture-Resistant – Unique potting techniques
• ✅ 6 Buttons – Comprehensive spa control
• ✅ LCD Display – Clear temperature readout
• ✅ Classic Oval Design – 165 × 76 mm
• ✅ Auxiliary Output – Additional device support
• ✅ 14-Pin Ribbon Connection – Secure interface
• ✅ 1 Pump Support – Single pump configurations
• ✅ SmarTouch 1000 Compatible – Designed for ACC
• ✅ American Quality – ACC engineering

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ ACC Uni-Pack parts stocked

✨ Summary

The ACC LX-1000 Topside Control Panel is a premium 6-button oval main control featuring patented Piezo electronic switch technology and unique moisture-resistant potting techniques. Designed for ACC SmarTouch 1000 systems and compatible with all ACC Uni-Pack controllers, this medium-sized panel measures 165 × 76 mm and features an LCD display with dedicated buttons for Temp+, Lights, Jets, Temp-, Aux, and Set functions. Supports 1 pump system with auxiliary output. Connects via 14-pin ribbon cable. The classic choice for spa owners seeking reliable oval panel design with auxiliary device control. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
