🛁 ACC KP-2105 Topside Control Panel – 5-Button Compact Oval Main Control with LED Display

Name: ACC Topside Control Panel - KP-2105
SKU: 9435
Availability: InStock

Compact oval main topside with LED display and essential 5-button control for ACC Uni-Pack systems

🎛️ Product Overview

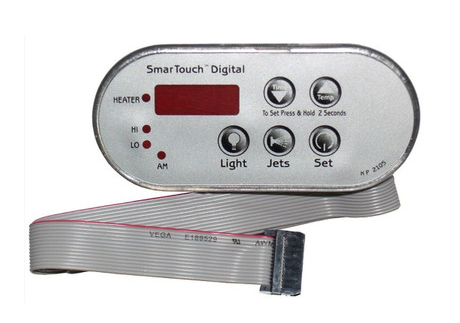

The ACC KP-2105 Topside Control Panel is a compact 5-button main control featuring a unique oval design and LED display. Manufactured by Applied Computer Controls (ACC), this American-engineered panel offers essential spa control functionality in an ultra-compact form factor measuring just 114 × 50 mm.

This panel features an LED display for temperature and status readout, with dedicated buttons for Time, Temp, Light, Jets, and Set functions. The compact oval design makes it ideal for spa installations where space is limited or where a smaller, more discreet control panel is preferred. Unlike the larger rectangular KP series panels, the KP-2105 provides a streamlined alternative without sacrificing core functionality.

The KP-2105 connects to ACC Uni-Pack control systems and provides complete main topside functionality including temperature control, jet activation, lighting, time functions, and access to system settings. The overlay design features no display cut out, providing a clean, integrated appearance.

✨ Key Features

✅ 5 Button Controls – Essential spa control functions
✅ LED Display – Clear temperature and status indication
✅ Compact Oval Design – Ultra-compact 114 × 50 mm
✅ Time Function – Built-in time control
✅ Temperature Control – Easy temperature adjustment
✅ Jets Control – Jet pump activation
✅ Light Control – Spa lighting management
✅ Set Function – Access to system settings
✅ Clean Overlay – No display cut out for sleek appearance
✅ American Quality – ACC engineering excellence

⚙️ Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	KP-2105
SKU	9435
Product Type	Main Topside Control Panel
Shape	Oval
Total Buttons	5
Display Type	LED
Length	114 mm
Width	50 mm
Overlay Display Cut Out	No
Button Configuration	Time, Temp, Light, Jets, Set

💡 Display Features

The LED display provides essential spa information:

Feature	Description
Display Type	LED
Temperature Display	Current and set temperature
Time Display	Time function readout
Status Indication	System operating status
Display Style	Integrated (no overlay cutout)

LED vs LCD: The KP-2105 uses LED display technology rather than LCD, providing bright, clear readout with excellent visibility in various lighting conditions.

🔘 Button Functions & Controls

The 5-button layout provides essential spa control:

Button	Function
Time	Time function control
Temp	Temperature adjustment
Light	Spa lighting on/off
Jets	Jet pump activation
Set	Access settings and programming

Compact Design Benefits:

Space-efficient installation
Clean, uncluttered appearance
Essential functions only
Intuitive single-button controls
Ideal for smaller spa installation

📐 Dimensions Comparison

Model	Shape	Size	Display
KP-2105	Oval	114 × 50 mm	LED
KP-1005	Rectangle	139 × 63 mm	LCD
KP-1000	Rectangle	139 × 63 mm	LCD
KP-2020	Rectangle	139 × 63 mm	LCD
KPR-2100	Oval	114 × 50 mm	None
KPR-2102	Oval	114 × 50 mm	None

Note: The KP-2105 shares the same compact oval dimensions (114 × 50 mm) as the KPR auxiliary panels, but functions as a main topside with display and temperature control.

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Compatible
ACC Uni-Pack Systems	✅ Yes

How to Verify Compatibility:

📍 Check your control box for ACC or Uni-Pack branding
📍 Verify connector port on control box
📍 Confirm panel cutout can accommodate 114 × 50 mm oval
📍 Contact Parts4Tubs if unsure

🛠️ Installation Guide

Before Installation:

⚠️ Disconnect power to spa at the isolator/breaker
⚠️ Verify ACC Uni-Pack system compatibility
⚠️ Measure cutout – must accommodate 114 × 50 mm oval
⚠️ Confirm connector compatibility with control box

Installation Steps:

Power Off – Isolate all electrical supply to spa
Access Control Box – Locate ACC control unit
Remove Old Panel – Carefully remove existing topside
Disconnect Cable – Carefully unplug connector
Prepare Cutout – Ensure oval opening accommodates panel
Route New Cable – Position cable for clean routing
Connect New Panel – Plug connector into control box
Mount Panel – Secure in oval cutout
Power On – Restore power and test functions

Testing Checklist:

[ ] LED display illuminates
[ ] Temp button adjusts temperature
[ ] Jets button activates pump
[ ] Light button controls lighting
[ ] Time button accesses time function
[ ] Set button accesses programming

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Display not lit	No power / loose connection	Check power, reseat connector
Buttons unresponsive	Connection issue	Check cable connection
Wrong temperature	Sensor issue (not topside)	Check temperature sensor
Jets not working	Control box issue	Verify control box operation
Time function error	Programming issue	Use Set to reconfigure

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel with soft, damp cloth	Weekly
Check button response	Monthly
Inspect cable connection	Annually

DO NOT:

❌ Use abrasive cleaners
❌ Use harsh chemicals on panel
❌ Pull or tug on cable
❌ Press buttons with sharp objects
❌ Submerge panel in water

♨️ Ideal Applications

Application	Suitability
♨️ ACC Uni-Pack systems	✅ Compatible
♨️ Space-limited installations	✅ Compact design
♨️ Minimalist aesthetic preference	✅ Clean appearance
♨️ Replacement for KP-2105	✅ Direct replacement
♨️ Smaller spa installations	✅ Compact footprint

Common Installation Scenarios:

🔧 Replacement for damaged KP-2105 topside
🔧 Upgrade to compact oval design
🔧 Space-constrained mounting locations
🔧 Preference for LED over LCD display

❓ Frequently Asked Questions

Q: What’s the difference between KP-2105 and KP-1005?

A: The KP-2105 is an oval compact design (114 × 50 mm) with LED display, while the KP-1005 is a larger rectangular design (139 × 63 mm) with LCD display. Both have 5 buttons but different form factors and display technologies.

Q: Is this the same size as the KPR auxiliary panels?

A: Yes, the KP-2105 shares the same compact 114 × 50 mm oval dimensions as the KPR-2100 and KPR-2102 auxiliary panels. However, the KP-2105 is a full main topside with LED display and temperature control, not an auxiliary panel.

Q: What type of display does this have?

A: The KP-2105 uses an LED display rather than LCD, providing bright, clear temperature and status readout.

Q: Does the overlay have a display cutout?

A: No, the KP-2105 overlay has no display cut out. The LED display shows through the overlay material for a clean, integrated appearance.

Q: What functions do the 5 buttons control?

A: The buttons control Time (time function), Temp (temperature), Light (spa lighting), Jets (pump), and Set (settings/programming).

Q: Can I use this to replace a rectangular KP panel?

A: Only if your spa panel cutout can accommodate the smaller 114 × 50 mm oval shape. The KP-2105 is significantly smaller than rectangular KP panels (139 × 63 mm).

🏆 Why Choose the ACC KP-2105 Topside Panel

✅ Compact Oval Design – Ultra-compact 114 × 50 mm
✅ LED Display – Bright, clear readout
✅ 5 Essential Buttons – Time, Temp, Light, Jets, Set
✅ Clean Appearance – No overlay display cutout
✅ Space-Efficient – Ideal for limited mounting areas
✅ Full Main Functions – Complete topside control
✅ American Quality – ACC engineering

🇬🇧 Why Buy from Parts4Tubs

✅ UK-based company with local support
✅ Fast UK delivery
✅ Expert advice from spa specialists
✅ Compatibility assistance available
✅ Full warranty support
✅ Easy returns within 30 days
✅ ACC Uni-Pack parts stocked

✨ Summary

The ACC KP-2105 Topside Control Panel is a compact 5-button oval main control featuring LED display technology in an ultra-compact 114 × 50 mm form factor. With dedicated buttons for Time, Temp, Light, Jets, and Set functions, this panel provides complete main topside functionality in the smallest footprint in the KP series. The overlay features no display cut out for a clean, integrated appearance. Compatible with ACC Uni-Pack systems. Ideal for spa installations where space is limited or where a compact, minimalist control panel is preferred. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
