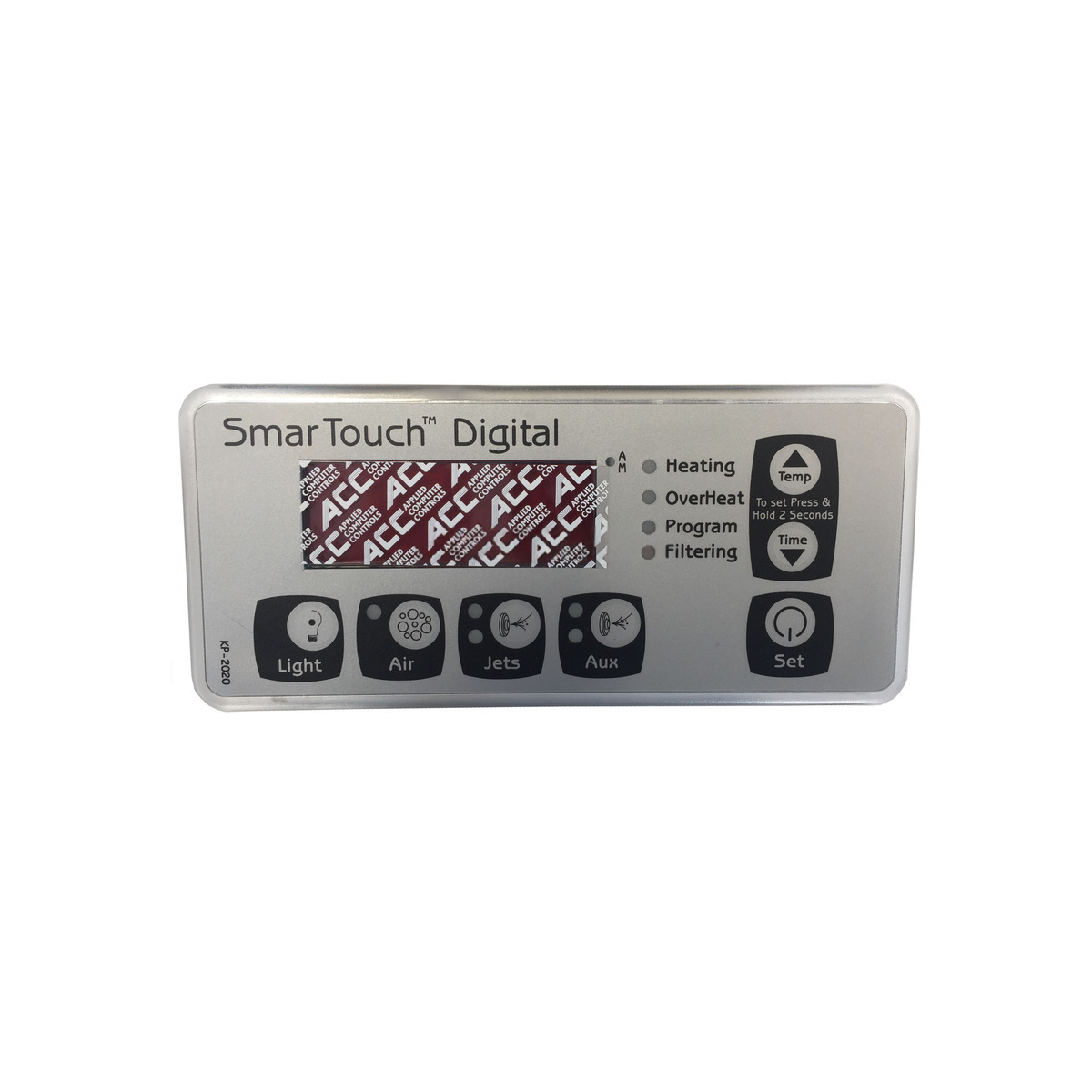

💆 ACC KP-2020 Topside Control Panel – 7-Button Rectangle Main Control with Piezo Technology

Premium 7-button rectangular main topside with Piezo switch technology, LCD display, and 5-foot cable for ACC SmarTouch 1000 and Uni-Pack systems

🎛️ Product Overview

The ACC KP-2020 Topside Control Panel is the flagship 7-button main control in the KP series, designed for ACC SmarTouch 1000 and Uni-Pack control systems. Manufactured by Applied Computer Controls (ACC), this American-engineered panel features patented Piezo electronic switch technology and unique potting techniques to eliminate moisture ingress, offering exceptional quality and reliability in harsh spa environments.

This rectangular panel features an LCD display for temperature readout and system status, with the most comprehensive button configuration in the KP series. Dedicated buttons for temperature adjustment, jets, air blower, lighting, auxiliary functions, and programming provide complete control over your spa experience. The panel supports single pump systems with air blower functionality.

Designed for ACC SmarTouch 1000 systems and compatible with all ACC Uni-Pack controllers, the KP-2020 connects via a 14-pin Mate ‘N’ Lock ribbon cable with an impressive 5-foot (1.5 metre) cable length. Measuring 139 × 63 mm in a sleek rectangular form factor, this premium topside delivers maximum functionality with American engineering excellence.

⭐ Key Features

• ✅ 7 Button Controls – Maximum functionality in KP series
• ✅ Piezo Electronic Switch Technology – Patented design for superior reliability
• ✅ Moisture-Resistant Construction – Unique potting techniques eliminate moisture
• ✅ LCD Display – Clear temperature readout and system status
• ✅ Rectangle Design – Sleek 139 × 63 mm form factor
• ✅ 5-Foot Cable Length – Exceptional installation flexibility
• ✅ Mate ‘N’ Lock Connector – Secure 14-pin connection
• ✅ 1 Pump + Blower Support – Comprehensive spa control
• ✅ Auxiliary Output – Additional device control
• ✅ SmarTouch 1000 Compatible – Designed for ACC systems

🔧 Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	KP-2020
MPN	KP-2020
Series	KP
SKU	8599
Product Type	Main Topside Control Panel
Shape	Rectangle
Total Buttons	7
Display Type	LCD
Max Pumps	1
Blower Support	Yes
Auxiliary Outputs	1
Connection Type	14-Pin Mate ‘N’ Lock with Ribbon Cable
Cable Length	5 feet (approximately 1.5 metres)
Length	139 mm (5½”)
Width	63 mm (2½”)
Switch Technology	Patented Piezo Electronic
Moisture Protection	Unique Potting Techniques
Overlay Display Cut Out	Yes
Compatible Systems	ACC SmarTouch 1000, All ACC Uni-Packs

💡 Display Features

The LCD display provides essential spa information:

Feature	Description
Display Type	LCD
Temperature Display	Current water temperature
Set Temperature	Target temperature setting
Time Display	Time function available
Status Indication	System operating status
Visibility	Clear, easy-to-read digits
Display Cut Out	Yes (overlay accommodates display)

🔘 Button Functions & Controls

The 7-button layout provides maximum spa control:

Button	Function
Temp+	Increase set temperature
Time/Temp-	Decrease temperature / Time function
Jets	Activate jet pump on/off
Air	Control air blower
Lights	Spa lighting control
Aux	Auxiliary device control
Set	Access programming and settings

Piezo Switch Technology Benefits:

• Superior tactile feedback
• Exceptional durability
• Moisture-resistant operation
• Long operational lifespan
• Reliable response in all conditions

System Support:

• 1 pump control for jet operation
• Air blower control for massage bubbles
• Lighting control for ambience
• Auxiliary output for additional devices
• Temperature adjustment and monitoring
• Time function access
• Programming access via Set button

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model/Type	Compatible
ACC	SmarTouch 1000	✅ Designed for
ACC	All Uni-Pack Systems	✅ Yes

Primary Compatibility: The KP-2020 is specifically designed for the ACC SmarTouch 1000 system but is also compatible with all ACC Uni-Pack control systems.

How to Verify Compatibility:

• 📍 Check your control box for “ACC SmarTouch 1000” marking
• 📍 Look for ACC or Uni-Pack branding
• 📍 Verify 14-pin Mate ‘N’ Lock connector port
• 📍 Contact Parts4Tubs if unsure

📐 Dimensions

Measurement	Value
Length	139 mm (5½ inches)
Width	63 mm (2½ inches)
Form Factor	Rectangle

Rectangle Design Benefits:

• Clean, modern appearance
• Compact footprint
• Easy alignment during installation
• Same dimensions as KP-1000 and KP-1005

---

🔌 Connection Information

Specification	Detail
Connection Type	14-Pin Mate ‘N’ Lock with Ribbon Cable
Cable Length	5 feet (approximately 1.5 metres)
Cable Style	Flat ribbon cable with 14-pin plug
Connector Type	Mate ‘N’ Lock (secure locking)
Connection Port	ACC SmarTouch 1000 / Uni-Pack Control Box

5-Foot Cable Advantage:

• Exceptional installation flexibility
• Reaches distant mounting locations
• No extension cable needed in most installations
• Professional cable management options

Mate ‘N’ Lock Benefits:

• Secure locking mechanism
• Prevents accidental disconnection
• Reliable long-term connection

⚠️ Important: This panel uses a 14-pin Mate ‘N’ Lock connector. Verify your control box has the correct port type before ordering.

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify ACC SmarTouch 1000 or Uni-Pack system compatibility
• ⚠️ Check cutout accommodates panel size (139 × 63 mm)
• ⚠️ Confirm 14-pin Mate ‘N’ Lock connection port on control box
• ⚠️ Note the generous 5-foot cable length for routing

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Access Control Box – Locate ACC control unit
3. Remove Old Panel – Carefully remove existing topside
4. Disconnect Cable – Release Mate ‘N’ Lock connector
5. Prepare Cutout – Ensure rectangular opening is correct size
6. Route New Cable – Utilise the 5-foot length for clean routing
7. Connect New Panel – Engage Mate ‘N’ Lock connector until it clicks
8. Verify Lock – Ensure connector is fully seated and locked
9. Mount Panel – Secure in rectangular cutout
10. Power On – Restore power and test functions

Testing Checklist:

• [ ] LCD display shows temperature
• [ ] Temp+ increases set temperature
• [ ] Time/Temp- decreases temperature
• [ ] Jets button activates pump
• [ ] Air button activates blower
• [ ] Lights button controls lighting
• [ ] Aux button controls auxiliary device
• [ ] Set button accesses programming

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose connector	Check power, reseat Mate ‘N’ Lock
Buttons unresponsive	Connection issue	Verify connector is locked
Wrong temperature	Sensor issue (not topside)	Check temperature sensor
Pump not responding	Control box issue	Verify control box operation
Blower not working	Air device connection	Check blower wiring at control box
Display flickering	Loose connection	Reseat Mate ‘N’ Lock firmly
Aux not working	Device connection	Check auxiliary device wiring

Piezo Switch Tips:

• Piezo buttons provide consistent tactile feedback
• No mechanical components to wear out
• Moisture-resistant for long-term reliability
• Clean button surface regularly

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel with soft, damp cloth	Weekly
Check button response	Monthly
Inspect Mate ‘N’ Lock connection	Annually
Check cable routing	Annually

DO NOT:

• ❌ Use abrasive cleaners
• ❌ Use harsh chemicals on panel
• ❌ Pull or tug on ribbon cable
• ❌ Press buttons with sharp objects
• ❌ Force connector if not seating properly

♨️ Ideal Applications

Application	Suitability
♨️ ACC SmarTouch 1000 systems	✅ Designed for
♨️ ACC Uni-Pack system spas	✅ Compatible
♨️ 1 pump + blower configurations	✅ Perfect match
♨️ Spas with auxiliary devices	✅ Aux button included
♨️ Installations needing long cable	✅ 5-foot cable
♨️ Maximum control requirements	✅ 7-button design
♨️ Preference for rectangular panels	✅ Rectangle design
♨️ Replacement for faulty KP-2020	✅ Direct replacement
❌ Multi-pump systems	❌ 1 pump only
❌ Non-ACC control systems	❌ Not compatible

Common Installation Scenarios:

• 🔧 Replacement for damaged KP-2020 topside
• 🔧 SmarTouch 1000 system repair
• 🔧 Upgrade from KP-1000 or KP-1005
• 🔧 Uni-Pack system with auxiliary devices

❓ Frequently Asked Questions

Q: What’s the difference between KP-2020 and KP-1000?

A: The KP-2020 has 7 buttons including Aux and Time/Temp- functions, while the KP-1000 has 6 buttons. The KP-2020 provides auxiliary device control and time function that the KP-1000 lacks.

Q: How does KP-2020 compare to LXP-2020?

A: Both have 7 buttons and Piezo technology, but the KP-2020 is rectangular (139 × 63 mm) while the LXP-2020 is oval (228 × 90 mm). The LXP-2020 has dual auxiliary outputs while the KP-2020 has one.

Q: What is the cable length?

A: The KP-2020 comes with an impressive 5-foot (approximately 1.5 metre) ribbon cable, providing excellent installation flexibility.

Q: What is Piezo switch technology?

A: Piezo electronic switch technology is a patented design that provides superior tactile feedback, exceptional durability, and moisture resistance. Combined with unique potting techniques, it eliminates moisture ingress for reliable operation in harsh spa environments.

Q: What systems is this compatible with?

A: The KP-2020 is specifically designed for the ACC SmarTouch 1000 system but is also compatible with all ACC Uni-Pack controllers.

Q: What does the Aux button control?

A: The Aux button controls an auxiliary output for additional spa devices, such as secondary lighting, water features, or other accessories connected to your spa pack.

Q: What is the Time/Temp- button?

A: This dual-function button decreases the set temperature and provides access to time-related functions depending on the operating mode.

Q: Is the overlay included?

A: The overlay with display cut out is part of the KP-2020 assembly.

🏆 Why Choose the ACC KP-2020 Topside Panel

• ✅ 7 Button Maximum – Most comprehensive KP series control
• ✅ Piezo Switch Technology – Patented superior reliability
• ✅ Moisture-Resistant – Unique potting techniques
• ✅ LCD Display – Clear temperature readout
• ✅ Auxiliary Control – Additional device support
• ✅ Time Function – Enhanced functionality
• ✅ 5-Foot Cable – Exceptional installation flexibility
• ✅ Mate ‘N’ Lock – Secure connection
• ✅ 1 Pump + Blower – Comprehensive control
• ✅ American Quality – ACC engineering

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ ACC Uni-Pack parts stocked

✨ Summary

The ACC KP-2020 Topside Control Panel is the flagship 7-button rectangular main control in the KP series, featuring patented Piezo electronic switch technology and unique moisture-resistant potting techniques. Designed for ACC SmarTouch 1000 systems and compatible with all ACC Uni-Pack controllers, this premium panel features an LCD display, dedicated buttons for Temp+, Lights, Jets, Time/Temp-, Aux, Air, and Set functions, all in a sleek rectangular form measuring 139 × 63 mm. The generous 5-foot Mate ‘N’ Lock ribbon cable provides exceptional installation flexibility. Supports 1 pump plus blower with auxiliary output. The ultimate choice for spa owners requiring maximum control functionality in a rectangular form factor. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
