♨️ ACC KP-1005 Topside Control Panel – 5-Button Rectangle Main Control for ACC Uni-Pack Systems

Streamlined 5-button main topside with LCD display and Mate ‘N’ Lock connection for SMTD2000, SMTD3000, and SmarTouch Digital systems

🎛️ Product Overview

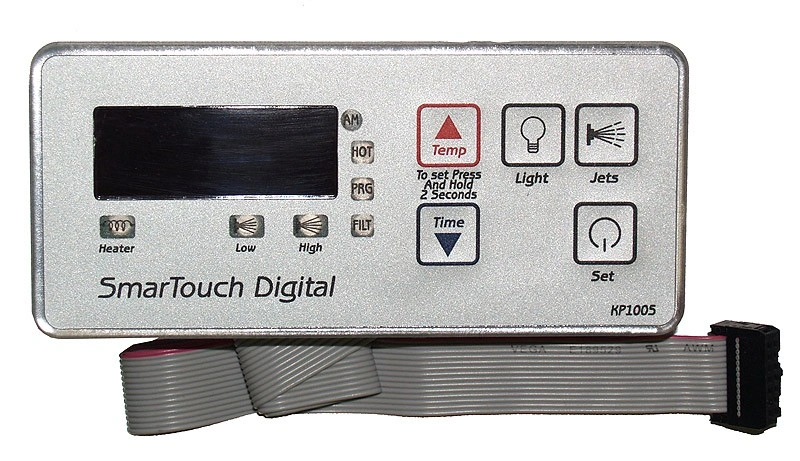

The ACC KP-1005 Topside Control Panel is a streamlined 5-button main control designed for ACC SmarTouch Digital and Uni-Pack control systems. Manufactured by Applied Computer Controls (ACC), this American-engineered panel delivers essential spa control functionality in a compact, user-friendly rectangular design.

This panel features an LCD display for clear temperature readout and system status, with dedicated buttons for temperature adjustment, jets, lighting, and a Power function for system control. The 5-button configuration is optimised for single pump spa systems without air blower requirements, providing all essential functions without unnecessary complexity.

Specifically designed for SMTD2000 and SMTD3000 control systems, the KP-1005 is also compatible with Acura Spas, SmarTouch Digital, and Compack Digital systems. The panel connects via a 14-pin Mate ‘N’ Lock ribbon cable connector, ensuring secure and reliable communication with the spa pack. Measuring 139 × 63 mm in a sleek rectangular form factor, this topside offers the flexibility and quality ACC is renowned for.

✨ Key Features

• ✅ 5 Button Design – Streamlined essential controls
• ✅ LCD Display – Clear temperature and status readout
• ✅ 1 Pump System Support – Optimised for single pump spas
• ✅ Rectangle Form Factor – Sleek 139 × 63 mm design
• ✅ Mate ‘N’ Lock Connector – Secure 14-pin connection
• ✅ SMTD2000/3000 Compatible – Designed for ACC digital systems
• ✅ Multi-System Compatibility – Works with Acura, SmarTouch, Compack
• ✅ Power Button – Convenient system on/off control
• ✅ All ACC Uni-Packs – Universal ACC compatibility
• ✅ American Quality – ACC engineering excellence

⚙️ Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	KP-1005
MPN	KP-1005
Series	LX
SKU	8969
Product Type	Main Topside Control Panel
Shape	Rectangle
Total Buttons	5
Display Type	LCD
Max Pumps	1
Blower Support	No
Connection Type	14-Pin Mate ‘N’ Lock with Ribbon Cable
Length	139 mm (5½”)
Width	63 mm (2½”)
Overlay Display Cut Out	Yes
Compatible Systems	ACC Uni-Packs, SMTD2000, SMTD3000

💡 Display Features

The LCD display provides essential spa information:

Feature	Description
Display Type	LCD
Temperature Display	Current water temperature
Set Temperature	Target temperature setting
Status Indication	System operating status
Visibility	Clear, easy-to-read digits
Display Cut Out	Yes (overlay accommodates display)

🔘 Button Functions & Controls

The 5-button layout provides essential spa control:

Button	Function
Temp+	Increase set temperature
Temp-	Decrease set temperature
Jets	Activate jet pump on/off
Light	Spa lighting control
Power	System power on/off

5-Button Design Benefits:

• Simplified operation
• Essential functions only
• Intuitive layout
• Quick access to all controls
• Ideal for single pump systems

System Support:

• 1 pump control for jet operation
• Lighting control for ambience
• Temperature adjustment and monitoring
• Power control for system on/off
• No air blower function (by design)

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model/Type	Compatible
ACC	SMTD2000	✅ Designed for
ACC	SMTD3000	✅ Designed for
ACC	SmarTouch Digital	✅ Yes
ACC	Compack Digital	✅ Yes
Acura Spas	All models	✅ Yes
ACC	All Uni-Pack Systems	✅ Yes

Primary Compatibility: The KP-1005 is specifically designed for SMTD2000 and SMTD3000 control systems but is also compatible with all ACC Uni-Pack controllers, SmarTouch Digital, Compack Digital, and Acura Spas systems.

How to Verify Compatibility:

• 📍 Check your control box for “SMTD2000” or “SMTD3000” marking
• 📍 Look for ACC, SmarTouch Digital, or Compack Digital branding
• 📍 Verify 14-pin Mate ‘N’ Lock connector port
• 📍 Contact Parts4Tubs if unsure

📐 Dimensions

Measurement	Value
Length	139 mm (5½ inches)
Width	63 mm (2½ inches)
Form Factor	Rectangle

Same Dimensions as KP-1000: Both KP-1005 and KP-1000 share identical rectangular dimensions, making panel replacement straightforward if upgrading within the KP series.

🔌 Connection Information

Specification	Detail
Connection Type	14-Pin Mate ‘N’ Lock with Ribbon Cable
Cable Style	Flat ribbon cable with 14-pin plug
Connector Type	Mate ‘N’ Lock (secure locking)
Connection Port	SMTD2000/3000 / Uni-Pack Control Box

Mate ‘N’ Lock Connector Benefits:

• Secure locking mechanism
• Prevents accidental disconnection
• Reliable long-term connection
• Professional installation quality

⚠️ Important: This panel uses a 14-pin Mate ‘N’ Lock connector. Verify your control box has the correct port type before ordering.

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify SMTD2000, SMTD3000, or compatible system
• ⚠️ Check cutout accommodates panel size (139 × 63 mm)
• ⚠️ Confirm 14-pin Mate ‘N’ Lock connection port on control box

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Access Control Box – Locate ACC control unit
3. Remove Old Panel – Carefully remove existing topside
4. Disconnect Cable – Release Mate ‘N’ Lock connector
5. Prepare Cutout – Ensure rectangular opening is correct size
6. Route New Cable – Position ribbon cable for clean routing
7. Connect New Panel – Engage Mate ‘N’ Lock connector until it clicks
8. Verify Lock – Ensure connector is fully seated and locked
9. Mount Panel – Secure in rectangular cutout
10. Power On – Restore power and test functions

Testing Checklist:

• [ ] LCD display shows temperature
• [ ] Temp+ increases set temperature
• [ ] Temp- decreases set temperature
• [ ] Jets button activates pump
• [ ] Light button controls lighting
• [ ] Power button controls system

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power / loose connector	Check power, reseat Mate ‘N’ Lock
Buttons unresponsive	Connection issue	Verify connector is locked
Wrong temperature	Sensor issue (not topside)	Check temperature sensor
Pump not responding	Control box issue	Verify control box operation
Display flickering	Loose connection	Reseat Mate ‘N’ Lock firmly
No Air button	By design	KP-1005 has no blower control

Mate ‘N’ Lock Connector Tips:

• Listen for click when connecting
• Ensure connector is fully seated
• Check locking mechanism is engaged
• Handle ribbon cable gently
• Avoid bending ribbon sharply

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel with soft, damp cloth	Weekly
Check button response	Monthly
Inspect Mate ‘N’ Lock connection	Annually
Check cable routing	Annually

DO NOT:

• ❌ Use abrasive cleaners
• ❌ Use harsh chemicals on panel
• ❌ Pull or tug on ribbon cable
• ❌ Press buttons with sharp objects
• ❌ Force connector if not seating properly

♨️ Ideal Applications

Application	Suitability
♨️ SMTD2000 control systems	✅ Designed for
♨️ SMTD3000 control systems	✅ Designed for
♨️ SmarTouch Digital systems	✅ Compatible
♨️ Compack Digital systems	✅ Compatible
♨️ Acura Spas	✅ Compatible
♨️ Single pump spas (no blower)	✅ Perfect match
♨️ Simplified control preference	✅ 5-button design
❌ Spas with air blower	❌ No Air button
❌ Multi-pump systems	❌ 1 pump only
❌ Non-ACC control systems	❌ Not compatible

Common Installation Scenarios:

• 🔧 Replacement for damaged KP-1005 topside
• 🔧 SMTD2000 or SMTD3000 system repair
• 🔧 Acura Spa panel replacement
• 🔧 Single pump spa control upgrade

❓ Frequently Asked Questions

Q: What’s the difference between KP-1005 and KP-1000?

A: The KP-1005 has 5 buttons (Temp+, Temp-, Light, Jets, Power) while the KP-1000 has 6 buttons including an Air button for blower control and a Set button. The KP-1005 is for single pump spas without blower, while the KP-1000 supports pump plus blower.

Q: Does this panel control an air blower?

A: No. The KP-1005 is designed for single pump systems without air blower. If your spa has an air blower, consider the KP-1000 which includes an Air button.

Q: What is a Mate ‘N’ Lock connector?

A: Mate ‘N’ Lock is a secure locking connector type that clicks into place and prevents accidental disconnection, ensuring reliable long-term connection.

Q: Which control systems is this designed for?

A: The KP-1005 is specifically designed for SMTD2000 and SMTD3000 systems but is also compatible with all ACC Uni-Packs, SmarTouch Digital, Compack Digital, and Acura Spas.

Q: Are the dimensions the same as KP-1000?

A: Yes, both panels measure 139 × 63 mm in a rectangular form factor.

Q: Is the overlay included?

A: The overlay with display cut out is part of the KP-1005 assembly.

Q: What does the Power button do?

A: The Power button provides system on/off control, unlike the KP-1000 which has a Set button for programming instead.
