ACC Topside Control Panel – KP-1000

Name: ACC Topside Control Panel - KP-1000
SKU: 8598
Availability: OutOfStock

£693.32 Inc VAT

Out of stock

Want to be notified when this product is back in stock?

SKU: 8598 Category: ACC Topside Control Panel

Description

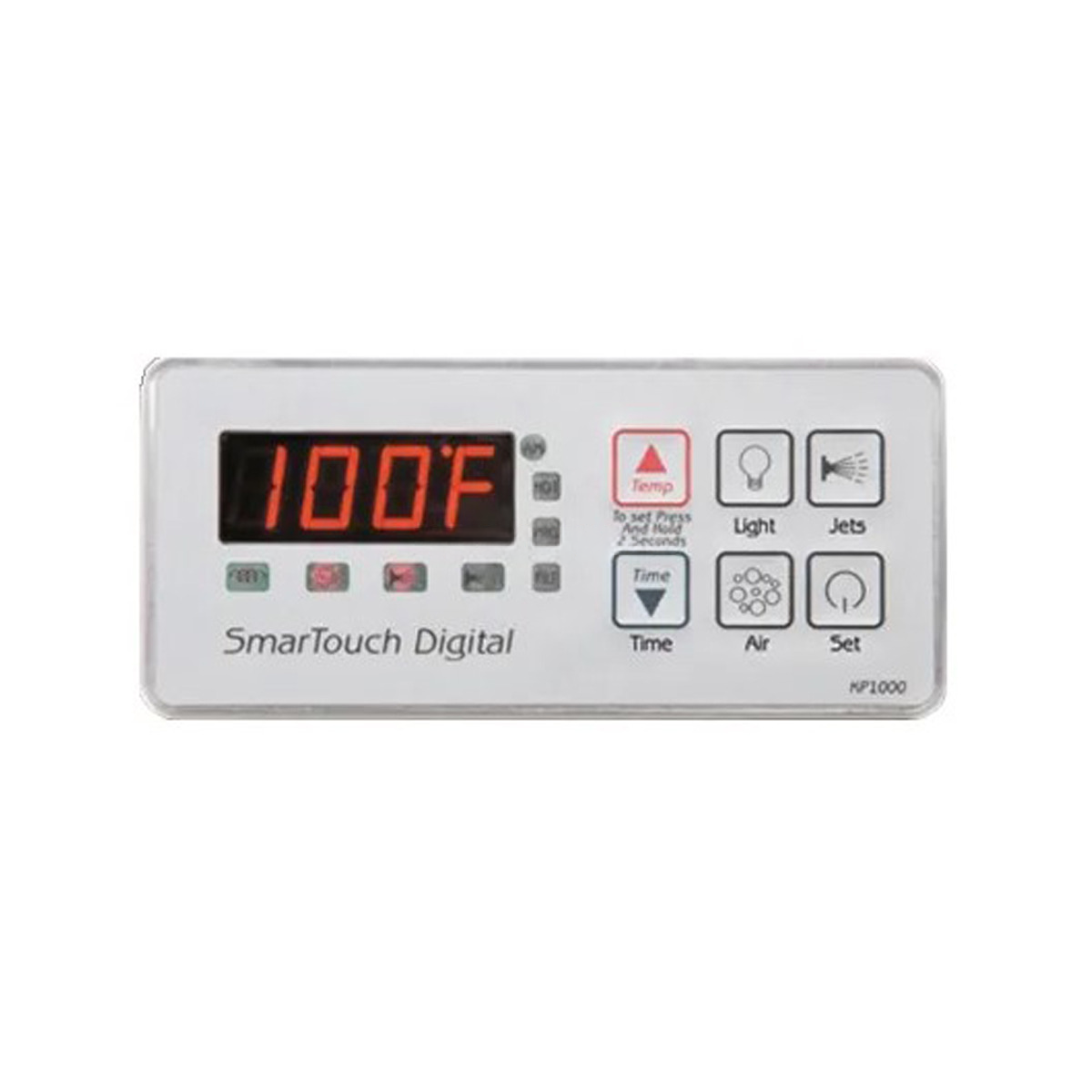

ACC Topside Control Panel – KP‑1000

The ACC KP‑1000 is a SmartTouch digital topside control panel with six buttons and an LED display, designed by Applied Computer Controls (ACC). It provides reliable control for spa systems featuring a single pump and air blower, enabling users to adjust temperature, jets, lighting, atmosphere control, and time functions, all within a compact and easy-to-use interface.

Product Overview

The KP‑1000 measures approximately 5.5″ × 2.5″ and drops into a standard 2.5″ × 5.5″ topside cutout, ensuring wide compatibility. It connects via a 5 ft 14-pin ribbon cable (Mate ‘N’ Lock) for seamless plug-and-play installation with ACC and Acura SmartTouch spa control systems like SMTD‑1000 and SMTD‑1500.

It features a user-friendly six-button layout: Top row – Temp Up, Light, Jets; Bottom row – Time/Temp Down, Air, Set. This arrangement gives full control over essential spa operations.

System Compatibility

The KP‑1000 panel is fully compatible with ACC SmartTouch Digital packs (e.g., SMTD‑1000, SMTD‑1500) and Acura spa control systems. It serves as a suitable replacement for earlier models including SC‑1000 and SC‑1000DP.

Button Configuration

Top Row: Temp Up · Light · Jets
Bottom Row: Time/Temp Down · Air · Set

Technical Specifications

Feature	Specification
Display	LED digital
Number of Buttons	6
Panel Size	5.5″ × 2.5″ (140 × 64 mm)
Cut-out Size	Drops into 2.5″ × 5.5″ cavity
Cable Connector	14-pin ribbon (Mate ‘N’ Lock), 5 ft length
Overlay	Included with button graphics
Compatible Systems	ACC SMTD‑1000/1500, Acura SmartTouch packs
Replaces Models	SC‑1000/DP, KP‑1000

Key Features & Benefits

Compact design ideal for standard topside installations
Six-button interface offers full control—temperature, jets, light, air, and timer
High-visibility LED display for temperature and system feedback
Easy installation with standard 14-pin ribbon connector
Compatible with mainline ACC and Acura SmartTouch systems
Direct replacement for similar panels (SC‑1000, KP‑1000 family)

Installation Notes

Ensure your system uses a 14-pin Mate ‘N’ Lock ribbon connection
Always confirm the correct part number (KP‑1000) from the panel sticker for compatibility
Professional installation is recommended to ensure optimal functionality

Summary

The ACC KP‑1000 is a reliable, user-friendly digital topside panel featuring six buttons and LED display in a compact form. Compatible with ACC and Acura SmartTouch systems, it offers full control over key spa functions. With standard dimensions, plug-and-play cabling, and direct model compatibility, it’s an excellent option for owners looking to upgrade or replace existing panels.
