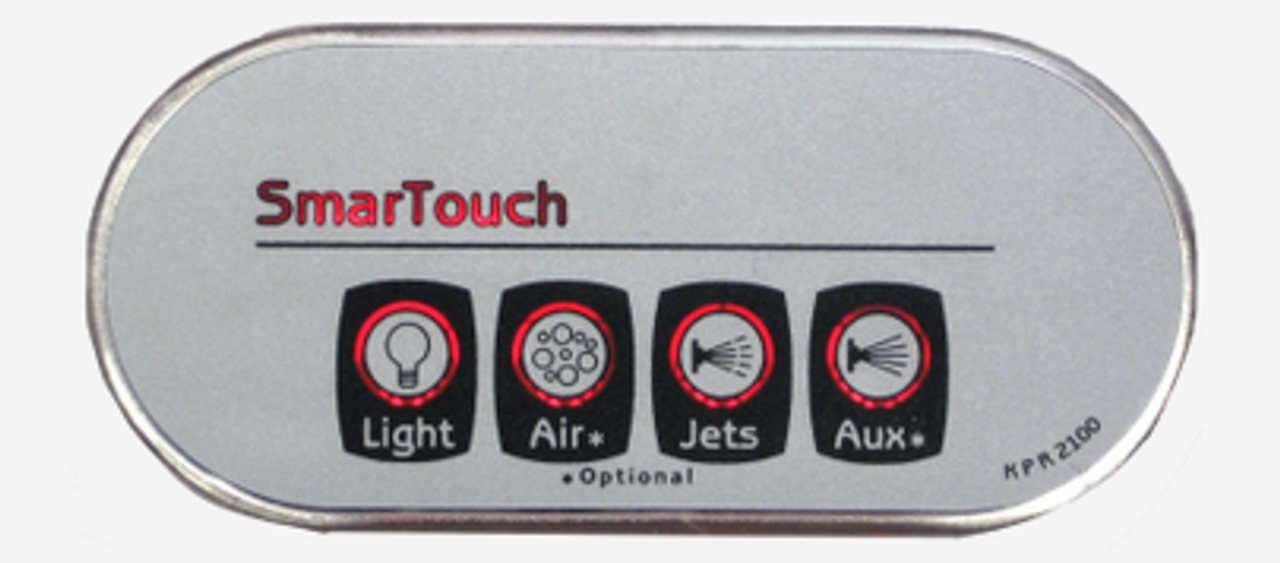

🎛️ ACC KPR-2100 Auxiliary Topside Control Panel – 4-Button Remote Control for ACC Uni-Pack Systems

Compact oval auxiliary control panel with 4-button operation for secondary spa access on ACC Uni-Pack systems

📋 Product Overview

The ACC KPR-2100 Auxiliary Topside Control Panel is a compact 4-button remote control designed for secondary spa access on ACC Uni-Pack control systems. Manufactured by Applied Computer Controls (ACC), this American-engineered auxiliary panel provides convenient additional control access without the need for a display, offering simple and intuitive operation of essential spa functions.

This auxiliary panel features a streamlined button-only design with dedicated controls for Lights, Air, Jets, and Aux functions. At just 114 × 50 mm in an elegant oval form factor, it’s ideal for installation at a secondary location around the spa for convenient access to core functions without approaching the main topside panel.

Compatible with all ACC Uni-Pack control systems, the KPR-2100 serves as a remote extension of your primary topside, enabling quick activation of jets, lighting, and air functions from an alternative position. The 4-button overlay is included, making this a complete ready-to-install solution for enhancing spa accessibility.

⭐ Key Features

• ✅ Auxiliary/Remote Control – Secondary access panel for spa functions
• ✅ 4 Dedicated Buttons – Lights, Air, Jets, Aux controls
• ✅ No Display Design – Simple, intuitive button-only operation
• ✅ Ultra-Compact Size – Just 114 × 50 mm for flexible placement
• ✅ Elegant Oval Shape – Premium aesthetic design
• ✅ Universal ACC Compatibility – Works with ALL ACC Uni-Packs
• ✅ 4-Button Overlay Included – Complete ready-to-install package
• ✅ Secondary Location Mounting – Install anywhere around your spa
• ✅ American Quality – ACC engineering excellence
• ✅ KPR Series – Dedicated auxiliary panel series

🔧 Technical Specifications

Specification	Value
Manufacturer	ACC (Applied Computer Controls)
Model	KPR-2100
MPN	KPR2100
Series	KPR
SKU	8619
Alternate Part Number	3-00-7261
Product Type	Auxiliary Topside Control Panel
Control Type	Remote/Secondary
Shape	Oval
Total Buttons	4
Display Type	None
Length	114 mm
Width	50 mm
Overlay Included	Yes (4-button)
Overlay Display Cut Out	Yes
Compatible Systems	All ACC Uni-Packs

🔘 Button Functions & Controls

The 4-button layout provides essential spa control:

Button	Function
Lights	Control spa lighting on/off
Air	Activate air blower
Jets	Turn jet pump on/off
Aux	Control auxiliary device

Simple Operation:

• No display to navigate
• Direct, immediate response
• Intuitive single-press activation
• Quick access to most-used functions

Auxiliary Panel Benefits:

• Control spa from a secondary location
• No need to walk to main topside
• Convenient for larger spas
• Additional access point for multiple users

🔗 Compatibility Guide

✅ Compatible Control Systems

System	Model/Type	Compatible
ACC	All Uni-Pack Systems	✅ Yes

Universal ACC Compatibility: The KPR-2100 is designed as an auxiliary panel for ALL ACC Uni-Pack control systems. It works alongside your existing primary topside panel to provide secondary access.

Works With Primary Topsides:

• LX-1000 main topside
• LXP-2020 main topside
• Other ACC primary panels

How to Verify Compatibility:

• 📍 Check your control box for “ACC” or “Uni-Pack” branding
• 📍 Confirm you have an existing primary topside installed
• 📍 Verify auxiliary port availability on control box
• 📍 Contact Parts4Tubs if unsure

📐 Dimensions

Measurement	Value
Length	114 mm
Width	50 mm
Form Factor	Compact Oval

Compact Design Benefits:

• Fits in tight spaces
• Minimal cutout required
• Unobtrusive installation
• Flexible placement options
• Ideal for spa cabinet sides or secondary locations

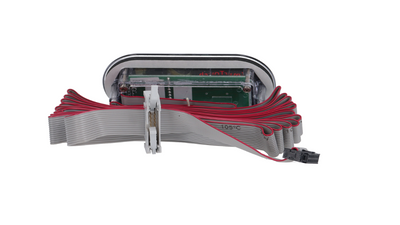

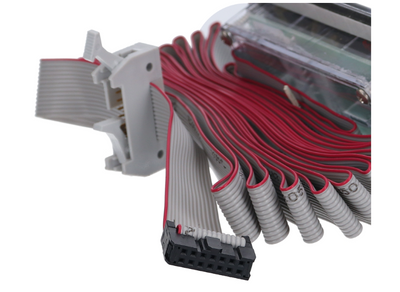

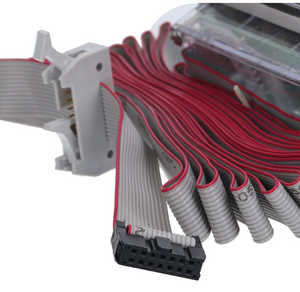

🔌 Connection Information

Specification	Detail
Connection Type	ACC Auxiliary Port
Connection Port	ACC Uni-Pack Control Box
Works With	Existing primary topside installation

Connection Notes:

• Connects to auxiliary topside port on ACC Uni-Pack
• Does not replace primary topside
• Works in conjunction with main control panel
• Verify auxiliary port availability before ordering

🛠️ Installation Guide

Before Installation:

• ⚠️ Disconnect power to spa at the isolator/breaker
• ⚠️ Verify ACC Uni-Pack system compatibility
• ⚠️ Confirm auxiliary port availability on control box
• ⚠️ Ensure primary topside is already installed
• ⚠️ Plan secondary location for auxiliary panel

Installation Steps:

1. Power Off – Isolate all electrical supply to spa
2. Plan Location – Choose convenient secondary position
3. Prepare Cutout – Cut oval opening (114 × 50 mm) at chosen location
4. Route Cable – Run cable from auxiliary panel to control box
5. Connect to Control Box – Plug into auxiliary topside port
6. Mount Panel – Secure KPR-2100 in prepared cutout
7. Power On – Restore power
8. Test Functions – Verify all 4 buttons operate correctly

Testing Checklist:

• [ ] Lights button activates spa lighting
• [ ] Air button activates blower
• [ ] Jets button activates jet pump
• [ ] Aux button activates auxiliary device

Location Suggestions:

• Side of spa cabinet
• Near lounger seating
• Opposite end from main topside
• Near steps for easy access

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
No button response	Connection loose	Check cable connection at control box
Single button not working	Button overlay issue	Check overlay alignment
Jets won’t activate	Main topside conflict	Check main topside not in standby
Lights flickering	Lighting issue (not topside)	Check light connections

Important Notes:

• Auxiliary panel requires primary topside to be functional
• Some functions may be controlled by main topside settings
• Check control box auxiliary port is enabled
• Verify cable routing is not damaged

🛡️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe with soft, damp cloth	Weekly
Check button response	Monthly
Inspect cable connection	Annually
Check overlay condition	Annually

DO NOT:

• ❌ Use abrasive cleaners
• ❌ Use harsh chemicals
• ❌ Submerge or pressure wash
• ❌ Press buttons with sharp objects

♨️ Ideal Applications

Application	Suitability
♨️ Secondary control location	✅ Designed for
♨️ Large spas needing multiple access points	✅ Ideal
♨️ Quick access to jets and lights	✅ Perfect
♨️ Simplified control without display	✅ Button-only design
♨️ Space-limited installations	✅ Compact 114 × 50 mm
♨️ ACC Uni-Pack system extension	✅ Compatible
❌ Primary/main spa control	❌ Use LX-1000 or LXP-2020
❌ Temperature adjustment	❌ No temp buttons
❌ Non-ACC systems	❌ Not compatible

Common Installation Scenarios:

• 🔧 Adding secondary control to existing ACC spa
• 🔧 Providing remote access opposite main topside
• 🔧 Quick jet/light activation from seating area
• 🔧 Enhancing spa accessibility for multiple users

❓ Frequently Asked Questions

Q: What is an auxiliary topside panel?

A: An auxiliary or remote topside is a secondary control panel that provides additional spa access from a different location. It works alongside your main topside, not as a replacement.

Q: Can this replace my main topside panel?

A: No, the KPR-2100 is an auxiliary panel designed to work WITH an existing primary topside (like the LX-1000 or LXP-2020). It does not have temperature controls or display functions needed for primary operation.

Q: Why is there no display?

A: Auxiliary panels are designed for quick, simple access to basic functions. Temperature monitoring and adjustment are handled by the main topside panel.

Q: What functions can I control with this panel?

A: The KPR-2100 provides control of Lights, Air (blower), Jets, and one Aux output – the most commonly used spa functions.

Q: Can I adjust temperature with this panel?

A: No, temperature adjustment requires the main topside panel (LX-1000 or LXP-2020). The KPR-2100 is for quick access to jets, lights, and air only.

Q: Where should I install an auxiliary panel?

A: Common locations include the opposite side of the spa from the main topside, near a lounger seat, or on the spa cabinet side for easy access when entering/exiting.

Q: Is the overlay included?

A: Yes, the 4-button overlay is included with the KPR-2100.

Q: What is the alternate part number?

A: The KPR-2100 is also referenced as part number 3-00-7261.

Q: How compact is this panel?

A: Very compact at just 114 × 50 mm – significantly smaller than main topside panels, making it easy to install in tight spaces.

Q: Does it need its own power supply?

A: No, the auxiliary panel is powered through the control box connection.

🏆 Why Choose the ACC KPR-2100 Auxiliary Topside Panel

• ✅ Dedicated Auxiliary Design – Purpose-built for secondary access
• ✅ 4 Essential Functions – Lights, Air, Jets, Aux
• ✅ Ultra-Compact – Just 114 × 50 mm
• ✅ Simple Operation – No complex display navigation
• ✅ Universal ACC Compatibility – All Uni-Packs
• ✅ Overlay Included – Ready to install
• ✅ Elegant Oval Design – Premium aesthetic
• ✅ American Quality – ACC engineering
• ✅ Flexible Placement – Install anywhere convenient
• ✅ KPR Series – Dedicated auxiliary product line

🇬🇧 Why Buy from Parts4Tubs

• ✅ UK-based company with local support
• ✅ Fast UK delivery
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance available
• ✅ Full warranty support
• ✅ Easy returns within 30 days
• ✅ ACC Uni-Pack parts stocked

✨ Summary

The ACC KPR-2100 Auxiliary Topside Control Panel is a compact 4-button remote control designed for secondary spa access on all ACC Uni-Pack systems. This American-engineered auxiliary panel features a streamlined button-only design (no display) with dedicated Lights, Air, Jets, and Aux controls in an elegant oval form factor measuring just 114 × 50 mm. Ideal for installation at a secondary location around your spa, it provides quick access to essential functions without approaching the main topside. The 4-button overlay is included. Works alongside existing primary topsides (LX-1000, LXP-2020) to enhance spa accessibility. Perfect for larger spas needing multiple control points or convenient remote access to jets and lighting. Order from Parts4Tubs for fast UK delivery and expert compatibility assistance.
