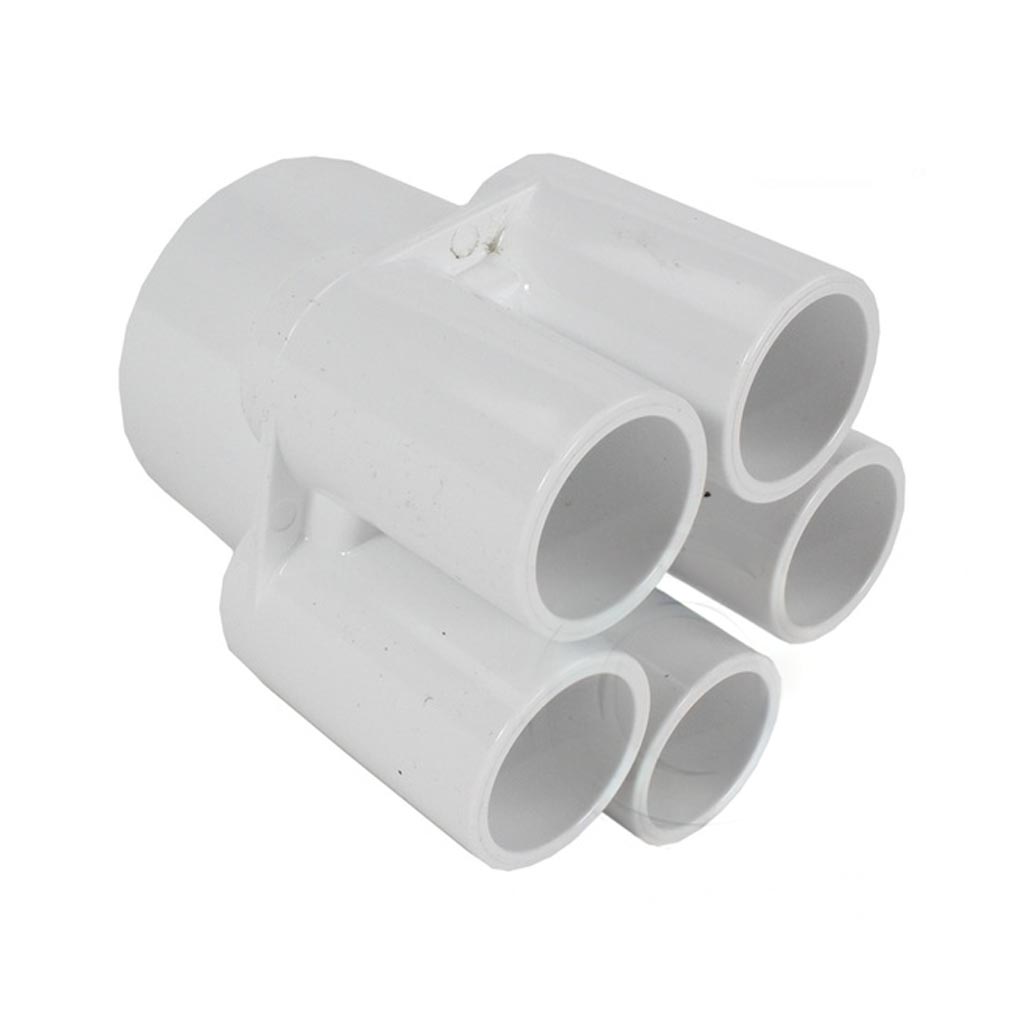

2-Inch 5-Port Water Manifold: The Heart of Your Hot Tub’s Circulation System

Product Overview

As a hot tub enthusiast and spare parts specialist, I’m excited to introduce you to the 2-inch 5-port 3/4-inch Socket Water Manifold. This essential component is a game-changer for your hot tub’s plumbing system, offering superior water distribution and flow control.

Why Choose This Water Manifold?

This high-quality manifold, manufactured by the renowned Waterway50, is designed to optimize your hot tub’s water circulation. Its robust construction and precise engineering ensure long-lasting performance and reliability.

Key Features:

1. Versatile Design: Perfect for both new installations and replacements
2. Multiple Ports: 5 ports for efficient water distribution
3. Compatibility: Works with various pipe sizes for flexible installation options
4. Durable Material: Built to withstand the harsh conditions of hot tub environments

Technical Specifications

To help you make an informed decision, here’s a detailed breakdown of the product specifications:

Specification	Detail
Type	Water Manifold
Manufacturer	Waterway50
Main Body Size	2-inch Socket
Port Size	3/4-inch Socket (5 ports)
Internal Diameter	60mm
Outer Length	100mm
Depth/Diameter	90mm
Compatible Piping	2-inch rigid pipe, 2-inch flexible rigid pipe, 3/4-inch piping

Installation and Usage

This water manifold is designed for easy integration into your hot tub’s plumbing system. Here’s what you need to know:

1. Preparation: Always use a high-quality plumbing cleaner before assembly.
2. Assembly: Apply pipe cement for a secure, water-tight fit.
3. Connection: The female end accepts inward pipe insertion, while the male end inserts into a female socket.
4. Flexibility: Ideal for setups using 3/4-inch flexible hose for water jet supply.

Applications

This versatile manifold is perfect for various hot tub configurations. Whether you’re:

• Upgrading an existing system
• Building a custom hot tub
• Replacing a worn-out manifold

This 2-inch 5-port water manifold will meet your needs with its robust design and multiple connection points.

Maintenance Tips

To ensure the longevity and optimal performance of your water manifold:

1. Regularly inspect for any signs of wear or leaks
2. Clean the ports periodically to prevent debris buildup
3. Check the connections annually to ensure they remain tight and secure

Why Trust This Product?

With years of experience in the hot tub industry, I’ve seen firsthand how crucial a quality water manifold is to the overall performance of a spa. This Waterway50 manifold stands out for its durability, ease of installation, and efficient water distribution.

Conclusion

The 2-inch 5-port 3/4-inch Socket Water Manifold is more than just a plumbing component – it’s the cornerstone of a well-functioning hot tub circulation system. Its versatility, durability, and ease of use make it an excellent choice for both DIY enthusiasts and professional installers alike.

Upgrade your hot tub’s plumbing today and experience the difference a quality water manifold can make in your spa’s performance and longevity.





USA Imperial is the Standard



All hot tubs and their fittings are designed for USA standard of Imperial pipe. Would you believe that for example, a European 2.5″ pipe is different from a USA 2.5″ pipe – well it is and there is just over 2mm difference and it makes a huge difference as it doesn’t fit!

You must make sure that you are using American standard sized pipe – always worth checking with your supplier before you purchase.

Can I convert Metric pipe to Imperial?



Yes, you can convert metric pipe to imperial, usually there is a socket connection that will do that. However, what I would preface that with is really, the only reason you would want to do that is say if you have a long run of pipe between your control room and your hot tub. You cant easily get imperial pipe supply but you have found say 75mm pipe that would do the job.

In this instance, it would work to convert it down at each end.

However, what you cannot do (technically you can but it is a real mess to do so) is convert all of the pipework to metric using adaptors. Generally, this just doesn’t work, costs loads in just adaptors alone and the amount of joints means you are going to have some leaks!

What rating of pipe do I need?



Pipe is rated to different pressures. You must use pressure rated pipe on your hot tub build as it is a pressurised system. In general, any pipe that is rated to 130 PSI or 9 BAR can be used on a hot tub build. This is often referred to as Class C. Likewise, Class E which is rated to 15 BAR or 218 PSI is also commonly found on hot tub builds.

Anything less than 130 PSI or 9 BAR should not be used – the pipes are not waste water pipes that are commonly found in hardware stores. They must be pressure rated and you will see this printed on the side of all the pipe so there will be no confusion.

What about Schedule 40 Pipe?



The schedule number on pipe correlates to the thickness of the wall on the pipe: as the number increases, the thicker the wall thickness is. Also, what is interesting is that while the schedule number can be the same on different sized pipes, the actual wall thickness will be different.

However, for our DIY Hot Tubs, we would only opt for schedule 40 – schedule 80 would be an overkill.

We also only use schedule 40 pipe if it is being buried and there is considerable weight on it. What I mean by this is that you need the physical strength of the pipe to stop it being crushed and cracked. In most cases, regular pressure rated pipe is just fine.

Should I use Rigid or Semi-Flexible Pipe?



When I built my own hot tub, I opted for semi-flexible as I though that it would be a little more forgiving. It is, however it is now my experience that the fact it is forgiving, and I use that in a loosest of terms as it is still pretty rigid pipe, it is more likely to leak.

The reason that it is more likely to leak is that you can “force” the joint when there is a little bit of give in the pipe. If you force the joint as I have said many times on this blog and on my YouTube Channel, you are going to have leaks – and it did!

For that reason, wherever possible today I recommend that you use rigid pipe. You have to make a good joint and it has to be accurate. It is forcing your workmanship which you will benefit from in the long run. Rigid pipe is the way forward for your DIY Hot Tub build.

Support your Pipework



If you pick up a length of pipe, 2m/6ft, there is not a lot of weight in it at all. However, if you fill that same pipe with water, cap it off each end and try to lift it, you will notice there is a huge weight increase. Water is heavy. If you have long runs of pipe, you must support them. Whether this is in ground and they should be laid correctly with a gravel base or if it is on your hot tub, they should be tied and pinned to the block work.

If you dont support your pipes and they fill with water, you can put strain on the joints that over time, will work their way loose and leak. It only takes a couple of minutes to tie your pipes and support them and it will save a whole bunch of time and money on repairs in the future by getting this right from the start.

Making the perfect joint with PVC pipe cement.



On this blog and on my YouTube Channel I talk a lot about making the correct joints and that a well made joint doesn’t leak. So, how do you make a well made joint?

1. Make sure when you cut the pipes you are cutting them at 90 degrees so they fit into the fittings correctly.
2. Make sure you remove any rough edges from your cuts
3. Ensure you are roughing up 3″ of the pipe with sand paper before you make the connection
4. Apply PVC Pipe Cement to the pipe and the connection
5. Twist the pipe or fitting as you are inserting it to prevent “channeling” which leads to leaks
6. Make sure the pipe goes all the way into the fitting (always a good idea to mark the ideal depth you want to get to)
7. Wipe off any excess pipe cement.
8. Allow to cure for 4 hours for full strength
